Product Description
| Product Introduce |
This model cargo lift provides fast, efficient, convenient and safe access to mezzanines, balconies,
basements, andany levels in many floors building. Cargo lift can be installed indoor and outdoor
applications.
Cargo lift can be installed on ground. Fixed ramp offered for you will provide convenient access for
loading/unloading. Enclosure around is available for customer's option.

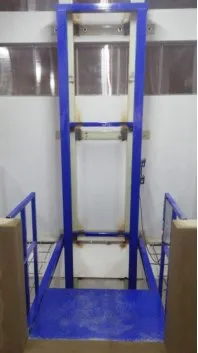

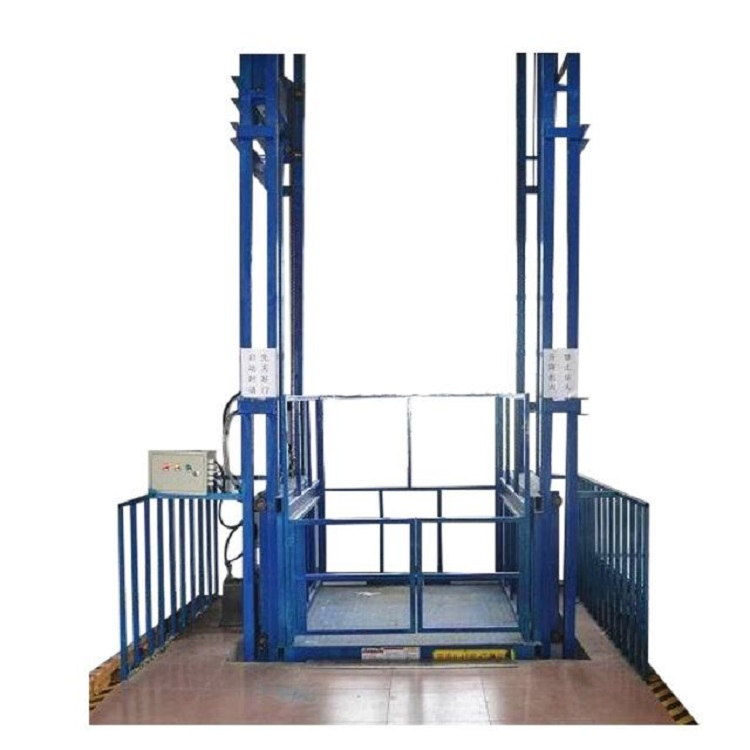

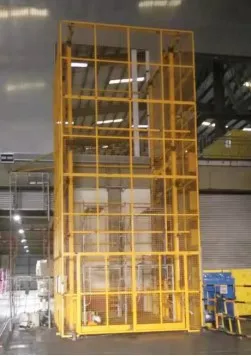

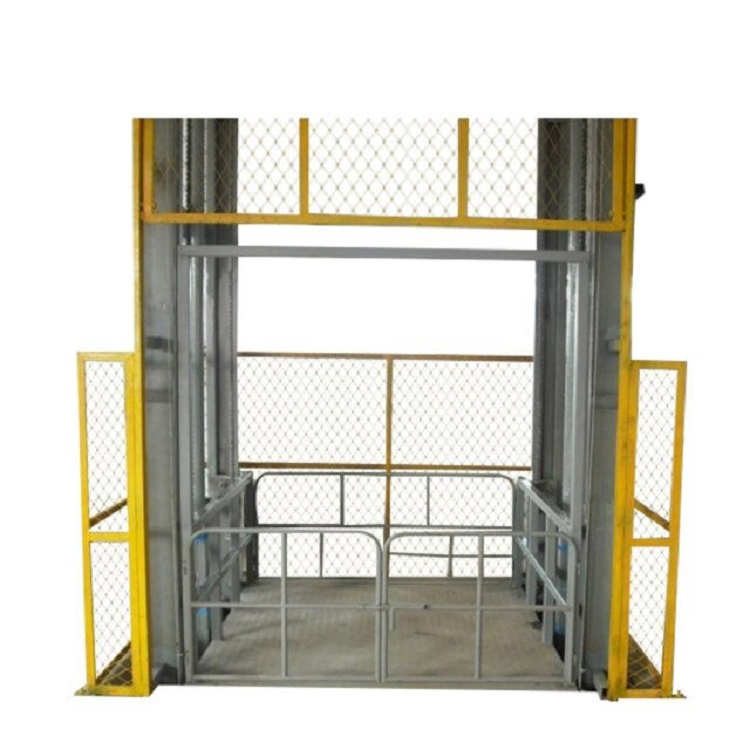

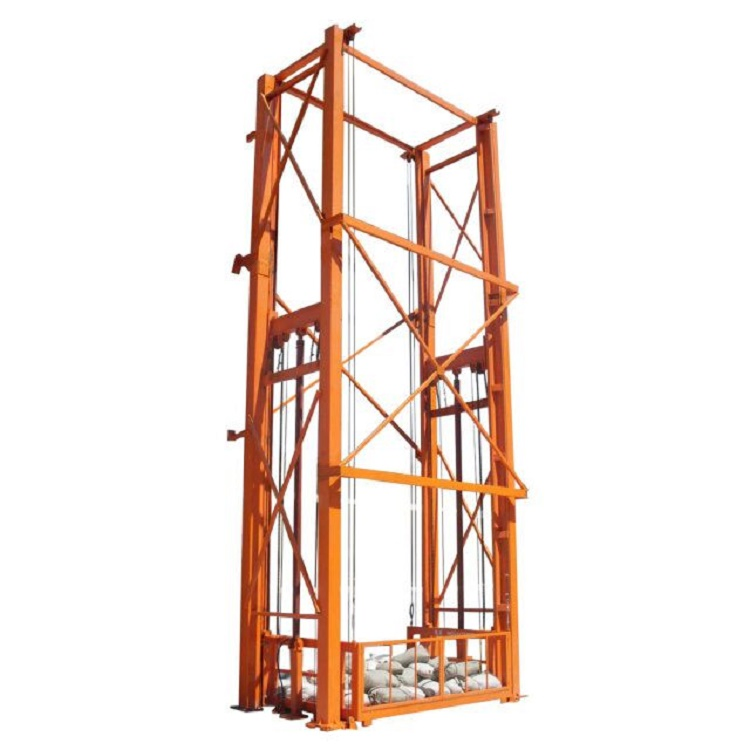

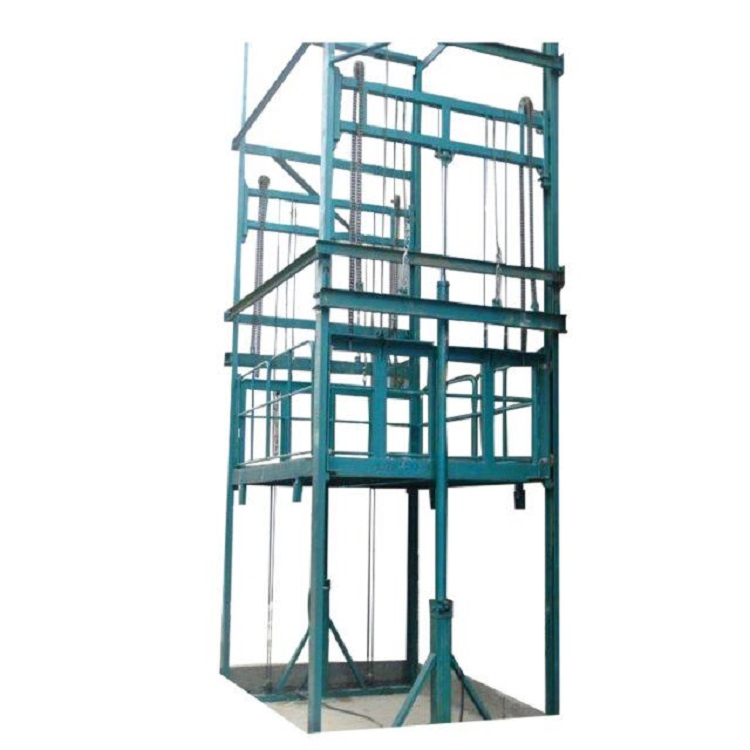

 single guide rail cargo lift |  cargo lift with enclosed |
 guide rail cargo lift with stainless cabin and door |  cargo lift with shutter door |
| Company Profile |

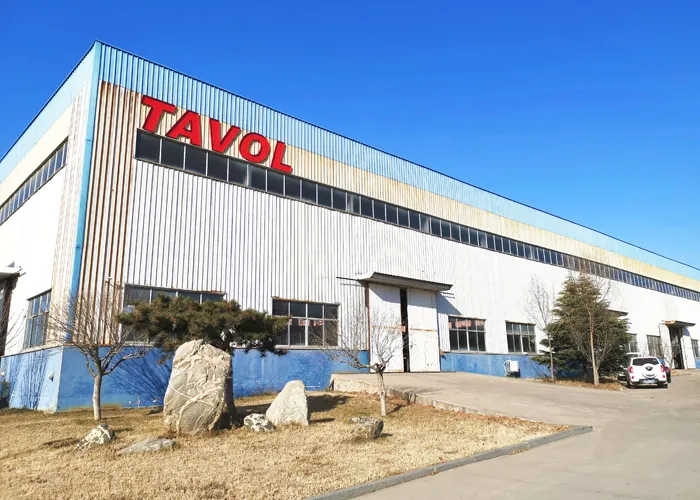

Tavol Group is an esteemed, leading disciplined, high quality manufacturer and service provider for
the lifting, materials handling and construction machinery for the industry.
Shandong Tavol Heavy Industry Co.,Ltd as one of the subsidiary factory of tavol group, located in
West of Fengxiang Rd.,National High-tech Industrial Zone, Taian City,Shandong Province,China.
We are mainly design,manufacture,sales and after service for the scissor lift, cargo lift, car lift ,home elevator,
dock ramp,man lift,also the Euro Design EOT cranes and Gantry Cranes,Jib Cranes and Electric
Hoists etc Material Handling solutions and machines.
| Advantage |
1.High load capacity for cargo transport to higher heights.
2.Minimum height 150-300mm.
3.simple operation and reliable.
4.it can be designed according to your demand.
5.hydraulic and electric drive.
6.Max. rated loading capacity can be 15tons.
| Main Parameters( we can customized for you) |
-Lift height(M)?
-Load capacity(Kg)?
-Platform size(mm)?
Model | Platform Size(mm) | Load Capacity(kg) | Lift Height(m) | Self Height(mm) | Motor Power(kw) |
SJD0.5-2.5 | 1500*1500 | 500 | 2.5 | 100 | 2.2 |
SJD0.5-10 | 2000*3000 | 500 | 10 | 120 | 3.0 |
SJD1-3.5 | 1400*1300 | 1000 | 3.5 | 120 | 3.0 |
SJD1.5-5.5 | 2000*2000 | 1500 | 5.5 | 150 | 4.0 |
SJD2-4 | 2700*1800 | 2000 | 4.0 | 150 | 4.0 |
SJD3-8 | 2500*2500 | 3000 | 8.0 | 180 | 5.0 |
SJD5-15 | 2500*2500 | 5000 | 15.0 | 180 | 7.5 |
SJD10-7 | 4500*3500 | 10000 | 7.0 | 280 | 7.5 |

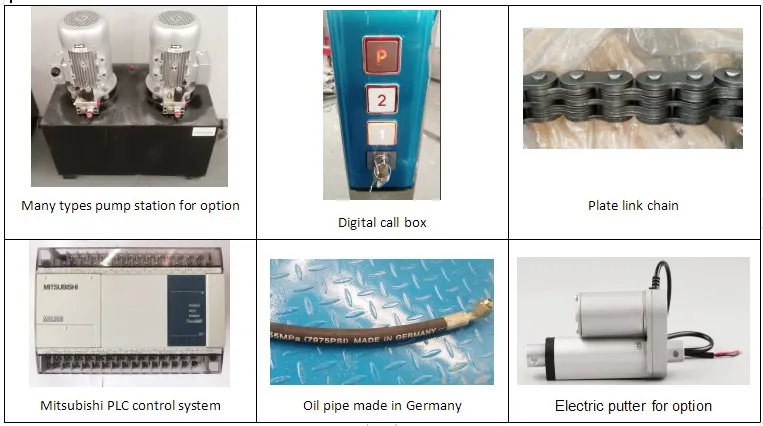

| Main Device |

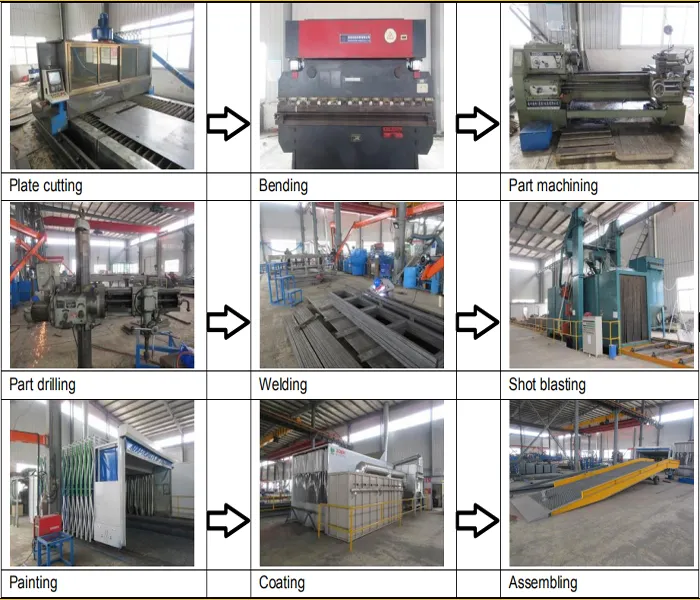

| Production Process |
| Sefety Device |
| Platform | anti-akid, which an aviode the material falling down |
| Control panel | It is with UP, DOWN and E-stop buttons, when there is any emergency, you can press the E-stop down, then the table will stop working |
| Explosion-proof value | protect hydraulic pipe , anti-hydraulic pipe rupture |
| Spillover value | It can prevent high pressure when the machine moves up. Adjust the pressure |
| Emergency decline value | It can go down when you meet an emergency |
| Safety sensor | When the platform decline , if it touch anything , it will be stop , so it can protect goods or operators |
| Others | phase lack & phase dislocation protection |
| Our Service |
years main frame warranty for hydraulic cargo lift and scissor lift table.
2. 7*24 hours technical support, offering by professional technical team.
3. Installation manual with drawing, photos, words will be provided in time.
4. Engineers are available to go abroad for installation and training services.

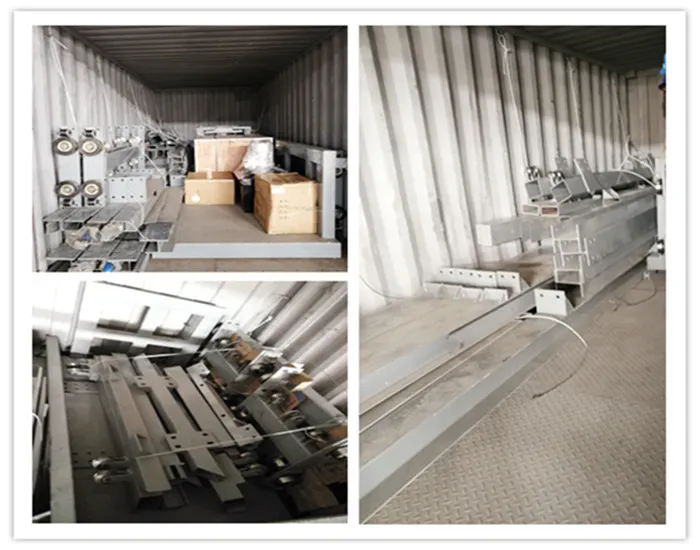

| Package Type for Rerference |

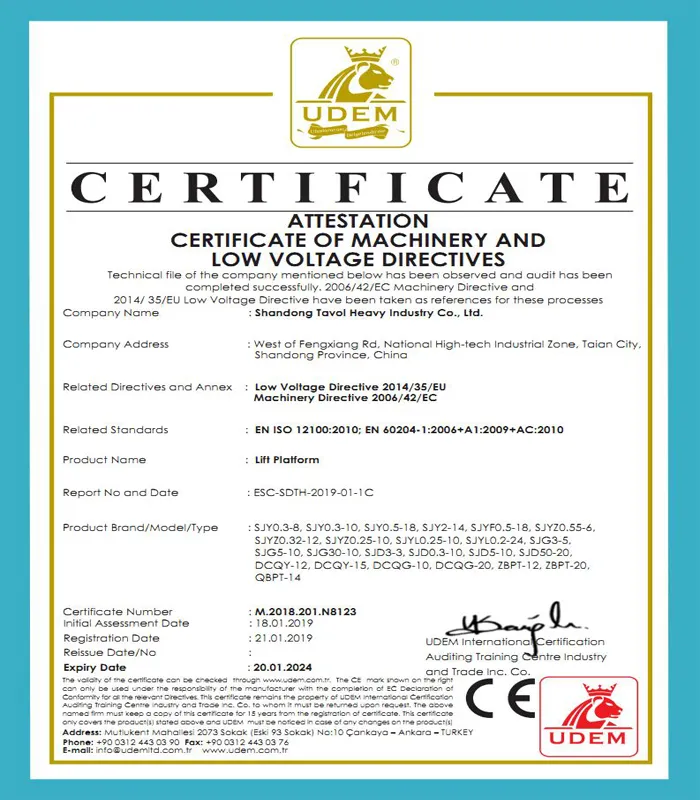

| CE Certificated |
| Why Choose Us? |
1. Professional design drawing for the confirmation in case of any misunderstanding.
2. All products will be produced strictly according to CE quality management system.
3. Every lead rail lift must be tested before delivery,100% qualified.
4. Detailed rust-removing and powder painting process.
5. 5 years warranty for main structure and 1 year warranty for electrical parts.
If you have any questions or inquiry, welcome to contact us as below information
