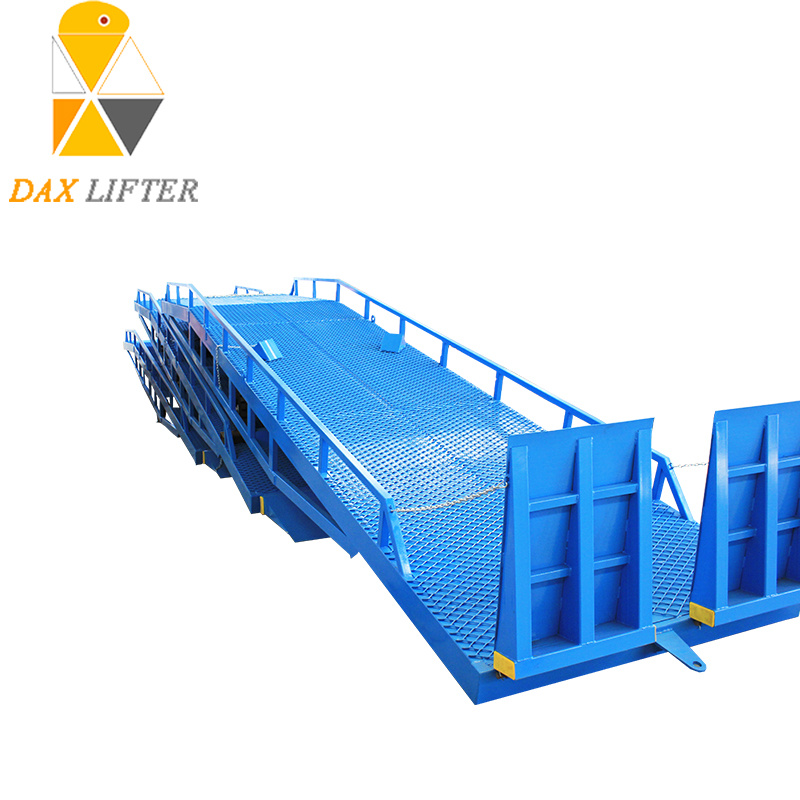

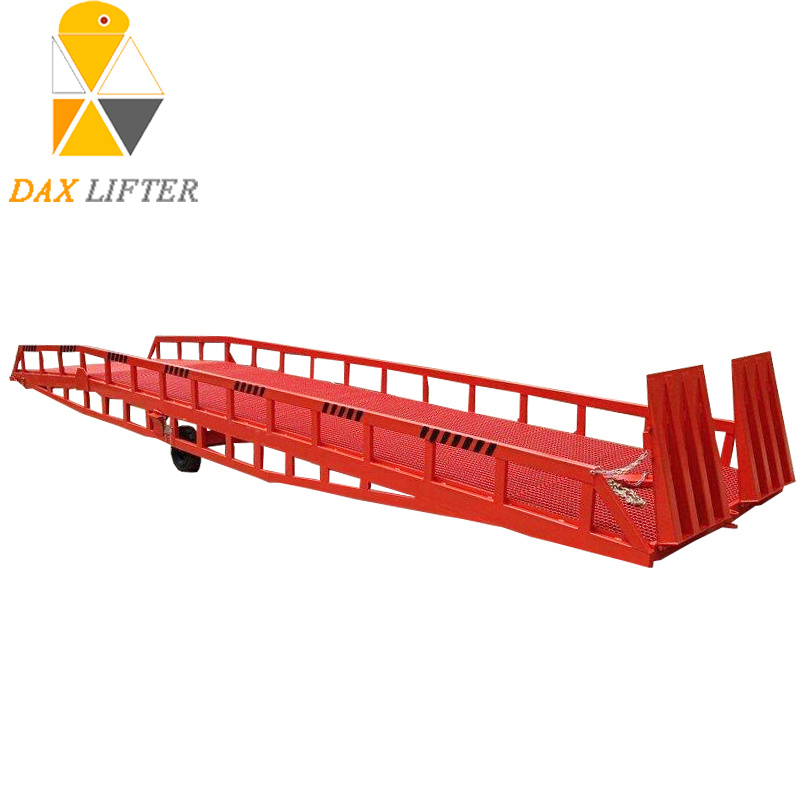

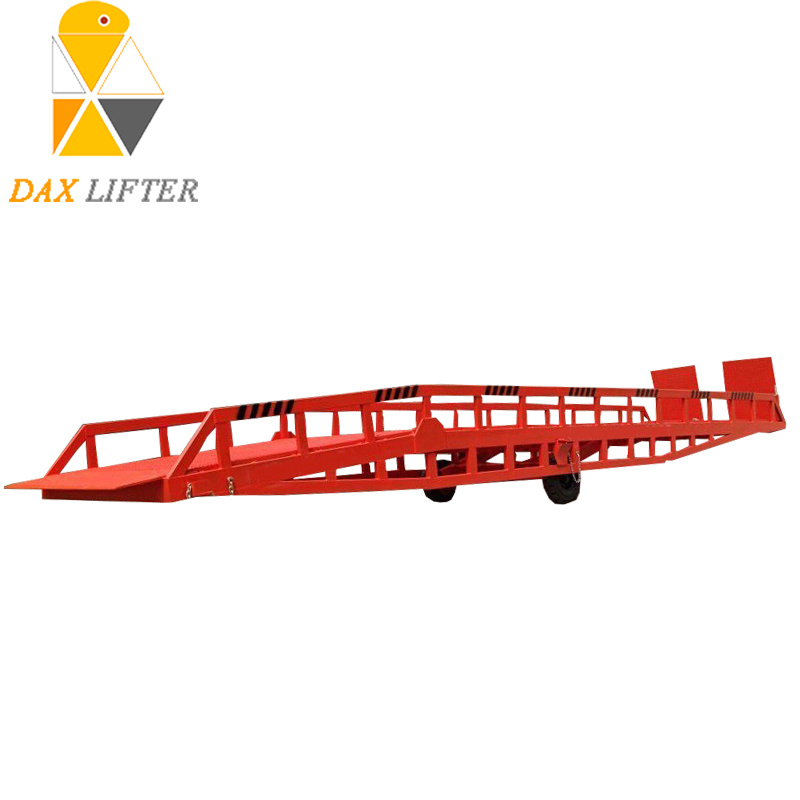

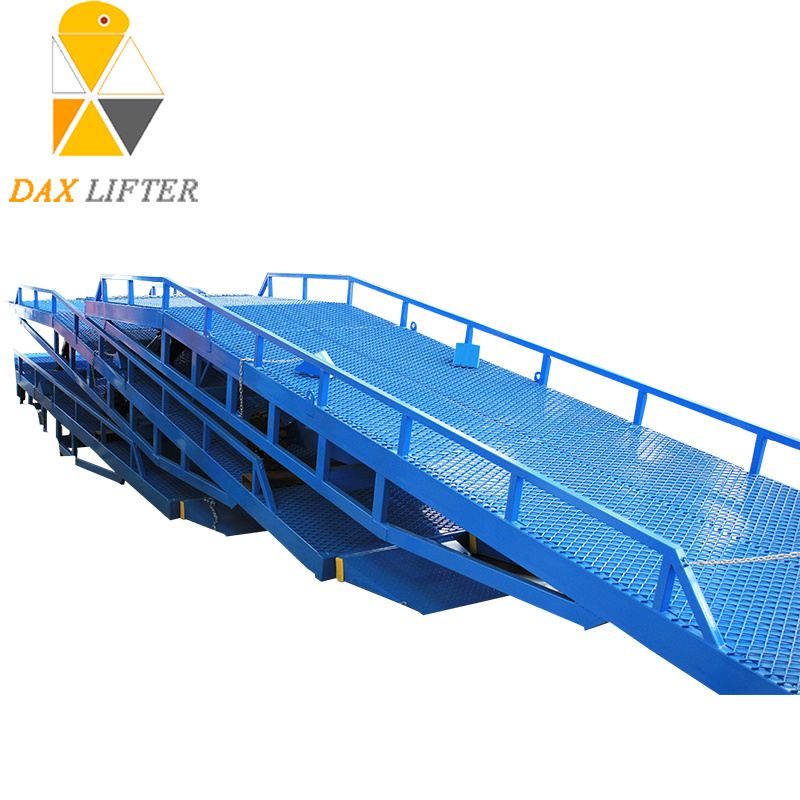

Hydraulic Driven Mobile Dock Yard Ramp for Logistics&Container
10ton Daxlifter Load Unload Container Mobile Dock RampOEM&ODM SERVICEDESCRIPTION: Loading capacity: 6~15ton.Offer customized service. Platform size: 1100*2000mm or 1100*2500mm. Offer customized service. Spillover valve: It can prevent high pressure when the machine moves up. Adjust the pressure.......
Send Inquiry
Product Description
10ton Daxlifter Load Unload Container Mobile Dock Ramp
OEM&ODM SERVICE
OEM&ODM SERVICE
DESCRIPTION:
Loading capacity: 6~15ton.Offer customized service. Platform size: 1100*2000mm or 1100*2500mm. Offer customized service. Spillover valve: It can prevent high pressure when the machine moves up. Adjust the pressure. Emergency decline valve: it can go down when you meet an emergency or the power off.TECHNICAL DATA
| Model No. | MDR-6 | MDR-8 | MDR-10 | MDR-12 |
| Load Capacity (t) | 6 | 8 | 10 | 12 |
| Platform Size (mm) | 11000*2000 | 11000*2000 | 11000*2000 | 11000*2000 |
| Overall Size(mm) | 11200*2000*1400 | 11200*2000*1400 | 11200*2000*1400 | 11200*2000*1400 |
| Lip Width (mm) | 400 | 400 | 400 | 400 |
| Tail Board Length (mm) | 800 | 800 | 800 | 800 |
| Platform Length(mm) | 2900 | 2900 | 2900 | 2900 |
| Slope Length(mm) | 7500 | 7500 | 7500 | 7500 |
| Adjustable Range of Lifting Height(mm) | 900~1700 | 900~1700 | 900~1700 | 900~1700 |
| Operating | Manually | Manually | Manually | Manually |
| Net Weight(kg) | 2350 | 2480 | 2750 | 3100 |
| 40'container Load Qty | 3sets | 3sets | 3sets | 3sets |
