Product Description
Self-propelled Scissor Lift

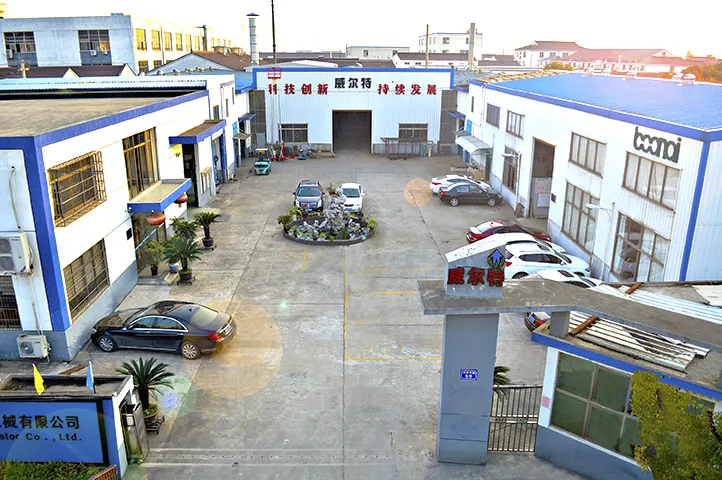

Company introduction:
Boonai Lift Equipment Co. Ltd as a modern manufacturing enterprise is specialized in aerial work
platform, providing package service for design, production, sales and after-sales.
There is an experienced team that takes care of every process for design, production and quality
control and dedicated to provents with excellent work.
With business philosophy of "Quality First, Client Oriented", we are striving for building a reputable
brand of Boonai by following the steps of the giants for the innovation of products and the
improvement of process and pursuing the perfection on every detail.
Main products are as follows: masts aerial work platform, scissor lift, fixed lift table, car lift and
material picker as well as electrical aerial work platform, with a wide application for the fields as
machinery, military, aviation and logistics etc.
Product introduction:
Made of wide section manganese steel providing more stability when lifting Inching control for lifting and lowering,
ground / platform control mode could be switched. Control voltage: DC 24V Equipped emergency lowering device,
enable safe lowering when power off Double contactors and double limit switches are provided In chassis is slide-out
engine tray, convenient for maintenance Forklift pockets are made for transportation with self-propelled device, easy steering.
Apply to Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane

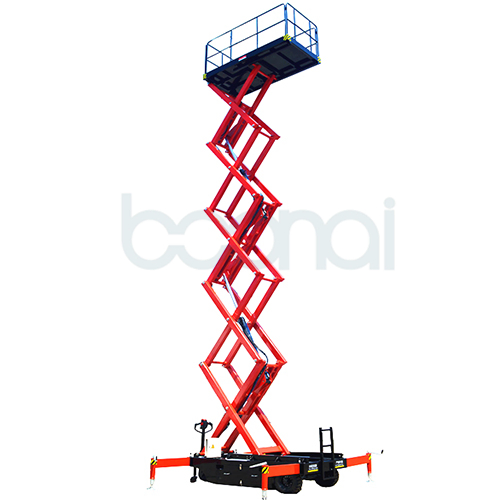

Self-propelled Scissor Lift Max platform height 11.8 (m)
Parameters

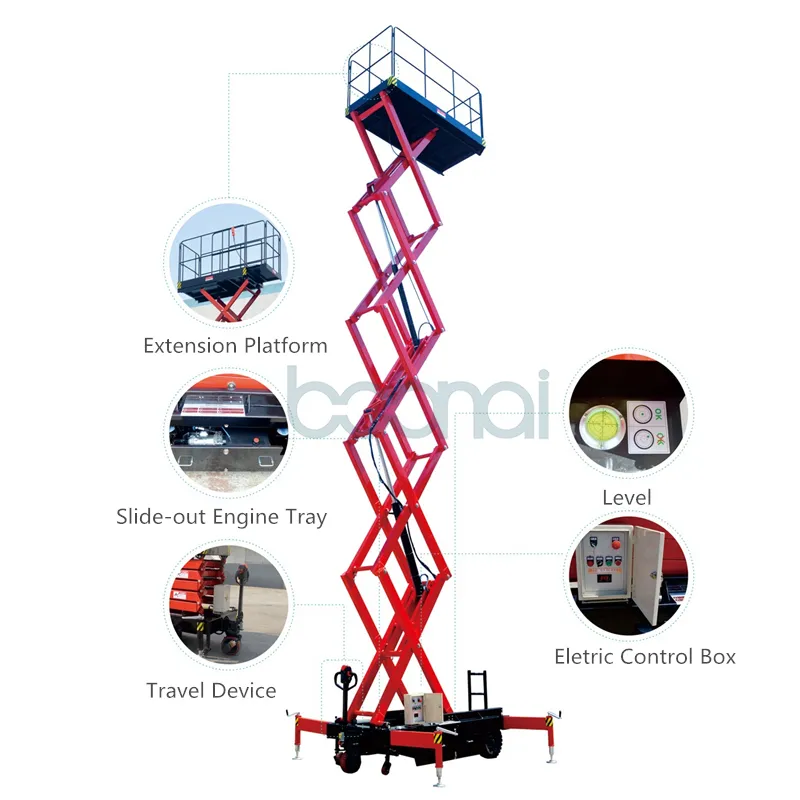

Advantages:Extension Platform,Slide-out Engine Tray
Level,Electric Control Box, Travel Device
Standard Configuration: Optional Configuration:
1,Ac 380V 1,AC 220V,(for 6m-- 11m platform),
2,Emergency lowering valve 2,AC/DC ,manual hydraulic pump
3,Leveling device with supporting screw 3,Italian hydraulic system
4,Waterproof electric box 4,Explosion proof electric control system
5,Emergency stop button 5,Rubber solid tire ,Extension platform,Electric moving device
6,DC,AC/DC,manual hydraulic pump
Company introduction:
Boonai Lift Equipment Co. Ltd as a modern manufacturing enterprise is specialized in aerial work
platform, providing package service for design, production, sales and after-sales.
There is an experienced team that takes care of every process for design, production and quality
control and dedicated to provents with excellent work.
With business philosophy of "Quality First, Client Oriented", we are striving for building a reputable
brand of Boonai by following the steps of the giants for the innovation of products and the
improvement of process and pursuing the perfection on every detail.
Main products are as follows: masts aerial work platform, scissor lift, fixed lift table, car lift and
material picker as well as electrical aerial work platform, with a wide application for the fields as
machinery, military, aviation and logistics etc.
Product introduction:
Made of wide section manganese steel providing more stability when lifting Inching control for lifting and lowering,
ground / platform control mode could be switched. Control voltage: DC 24V Equipped emergency lowering device,
enable safe lowering when power off Double contactors and double limit switches are provided In chassis is slide-out
engine tray, convenient for maintenance Forklift pockets are made for transportation with self-propelled device, easy steering.
Apply to Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
Self-propelled Scissor Lift Max platform height 11.8 (m)
Parameters
| Model | SJY0.45-5 | SJY0.45-6A | SJY0.45-6B | SJY0.45-8 | SJY0.45-10 | SJY0.45-12 |
| Max platform height (mm) | 4900 | 5900 | 6000 | 8000 | 10000 | 11800 |
| Min platform height (mm) | 900 | 980 | 1080 | 1200 | 1360 | 1480 |
| Platform size (mm) | 1450*600 | 1700*750 | 2300*800 | 2300*800 | 2300*1120 | 2300*1120 |
| Rated load (kg) | 450 | 450 | 450 | 450 | 450 | 450 |
| Lifting time (s) | 50 | 60 | 70 | 90 | 100 | 110 |
| Voltage (v/hz) | AC380/50 | AC380/50 | AC380/50 | AC380/50 | AC380/50 | AC380/50 |
| Travel motor | 0.75 | 0.75 | 0.75 | 0.75 | 0.75 | 0.75 |
| Motor power | 1.1 | 1.5 | 1.5 | 1.5 | 2.2 | 2.2 |
| Overall length (mm) | 1700 | 2100 | 2750 | 2750 | 2750 | 2750 |
| Overall width (mm) | 750 | 900 | 1050 | 1050 | 1400 | 1400 |
| Overall height (rails up) (mm) | 2080 | 2160 | 2260 | 2380 | 2540 | 2660 |
| (rails down ) (mm) | 1540(folded) | 1620(folded) | 1260(insert) | 1380(insert) | 1540(insert) | 1660(insert) |
| Extended outrigger size (mm) | 1400*1400 | 1650*1650 | 1800*2270 | 1800*2270 | 2250*2270 | 2250*2270 |
| Tire (Ø) | 250 | 250 | 400-8 | 400-8 | 500-8 | 500-8 |
| Overall weight (kg) | 520 | 720 | 1270 | 1420 | 1770 | 1920 |
Advantages:Extension Platform,Slide-out Engine Tray
Level,Electric Control Box, Travel Device
Standard Configuration: Optional Configuration:
1,Ac 380V 1,AC 220V,(for 6m-- 11m platform),
2,Emergency lowering valve 2,AC/DC ,manual hydraulic pump
3,Leveling device with supporting screw 3,Italian hydraulic system
4,Waterproof electric box 4,Explosion proof electric control system
5,Emergency stop button 5,Rubber solid tire ,Extension platform,Electric moving device
6,DC,AC/DC,manual hydraulic pump
