China Super Low Profile Stationary Electric Lift Table Hy1003 Series

Product Description

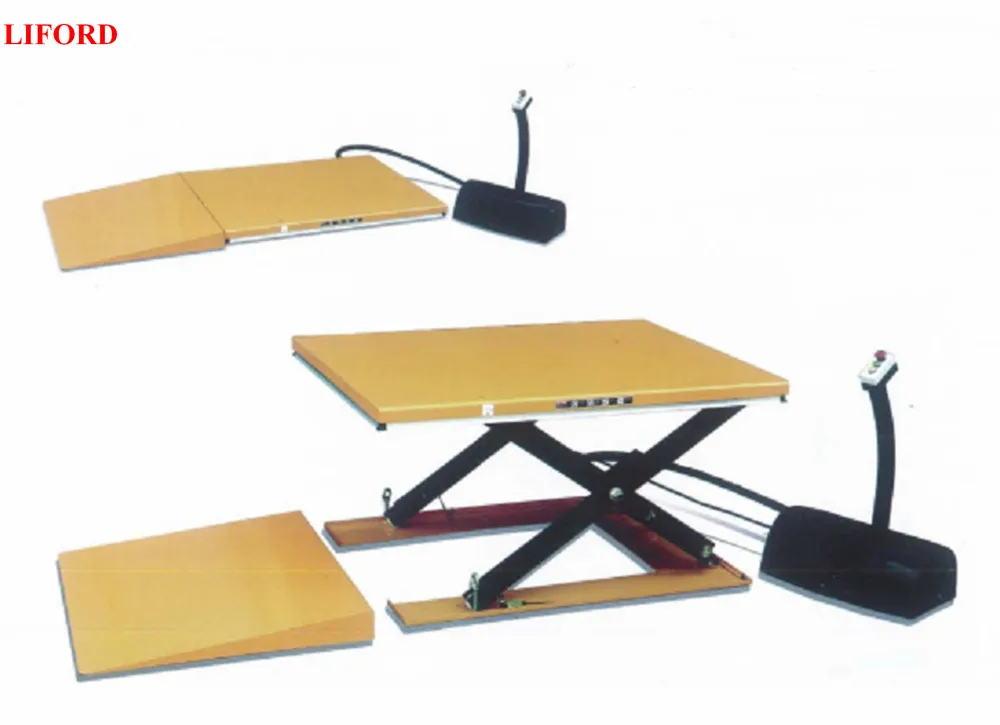

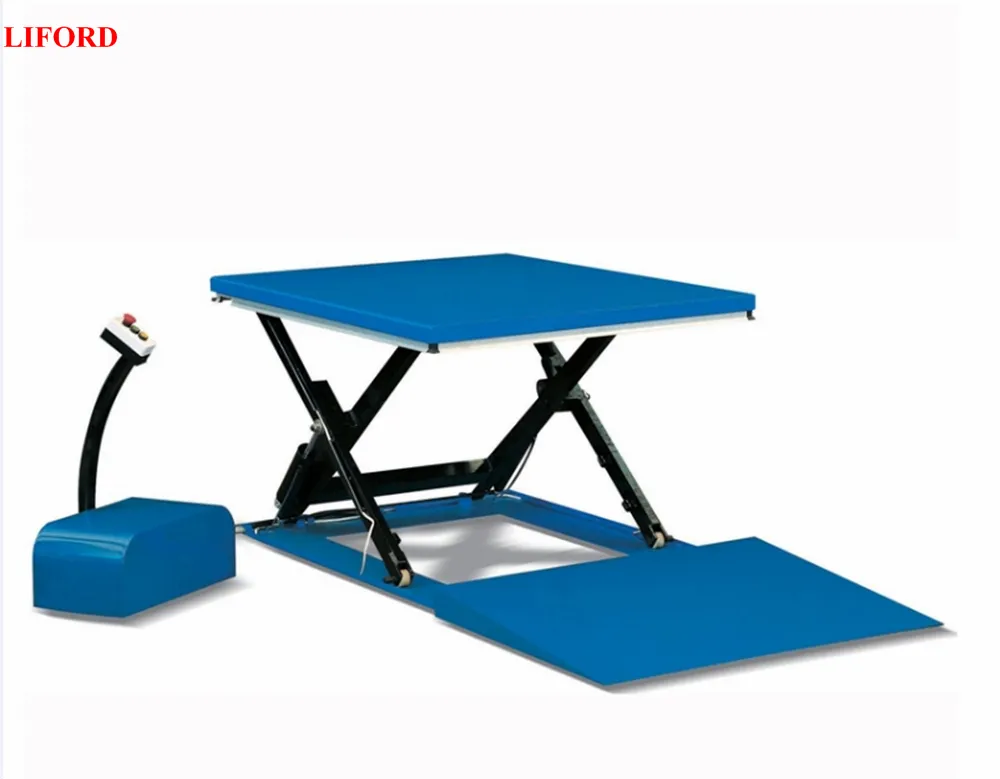

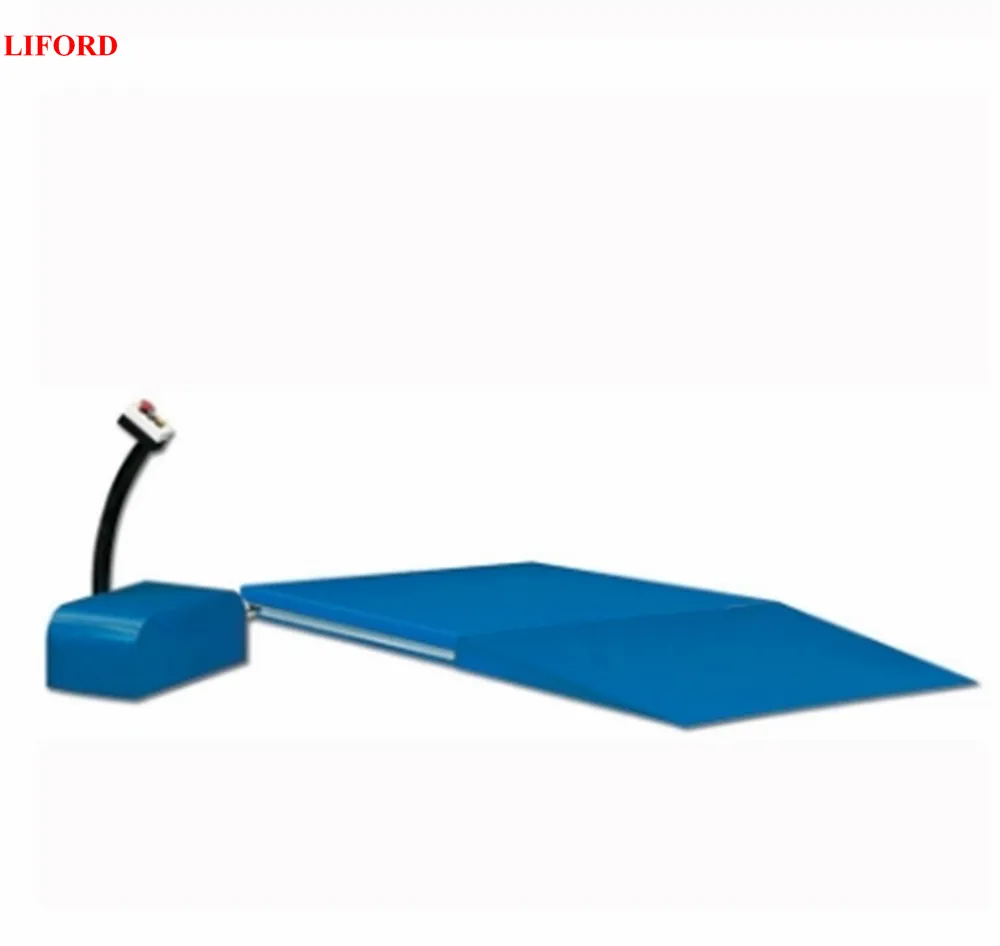

Super Low Profile Stationary Electric Lift Table HY1003 series

Feature of Super Low Profile Stationary Electric Lift Table HY1003 series

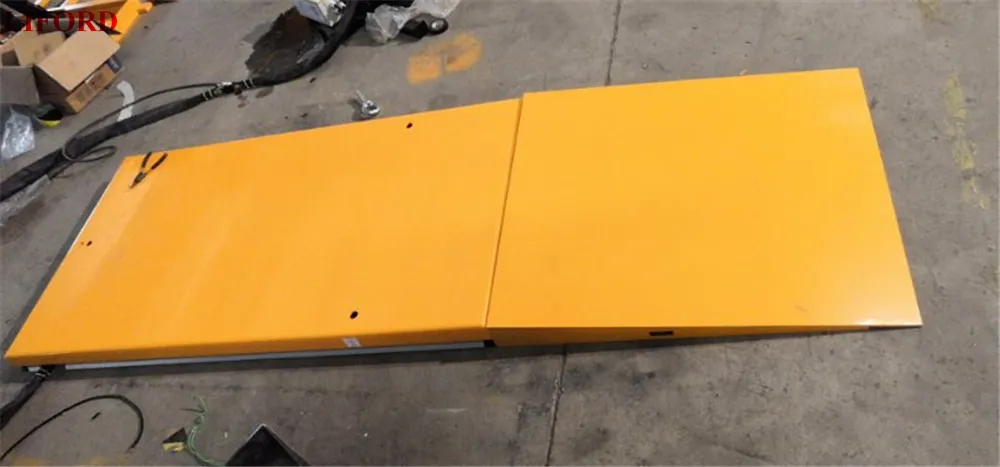

1. Closed height only 10mm, no ramp needed for pallet.

2. Mechanical safety chocks for maintenance.

3. These tables achieve a super low closed height, eliminating the need for a pit installation.

4. Meet EN1570 norm and ANSI/ASME safety standards;

5. Remote power pack with pedestal and controls, protected to IP54.

6. Upper platform fitted with safety perimeter to prevent descent on contact with obstructions.

7. 24V control box with UP and DOWN buttons and emergency stop.

8. External power pack equipped with a relief valve against overloading and a compensated flow valve for controlling lowering speed.

9. Hose burst safety valve to stop the lift table lowering in case of hose breakage.

10. Removable lifting hooks to facilitate handling and installation of the lift table;

Technical Data of Super Low Profile Stationary Electric Lift Table HY1003 series

Model	Capacity	Min./max. height	Table Size	Base Size	Lifting Time	Power	N.W.
Model	kg	mm	mm	mm	s	/	kg
HY1001	1000	85/860	1450*1140	1325*1074	25	380V/50Hz	357
HY1002	1000	85/860	1600*1140	1325*1074	25	380V/50Hz	364
HY1003	1000	85/860	1450*800	1325*734	25	380V/50Hz	326
HY1004	1000	85/860	1600*800	1325*734	25	380V/50Hz	332
HY1005	1000	85/860	1600*1000	1325*734	25	380V/50Hz	352
HY1501	1500	105/870	1600*800	1325*734	30	380V/50Hz	302
HY1502	1500	105/870	1600*1000	1325*734	30	380V/50Hz	401
HY1503	1500	105/870	1600*1180	1325*734	30	380V/50Hz	415
HY2001	2000	105/870	1600*1180	1427*1114	35	380V/50Hz	419
HY2002	2000	105/870	1600*1000	1427*734	35	380V/50Hz	405
