U Type Hydraulic Stationary Pallet Scissor Lift Table

Product Description

Lift Tables HU Series

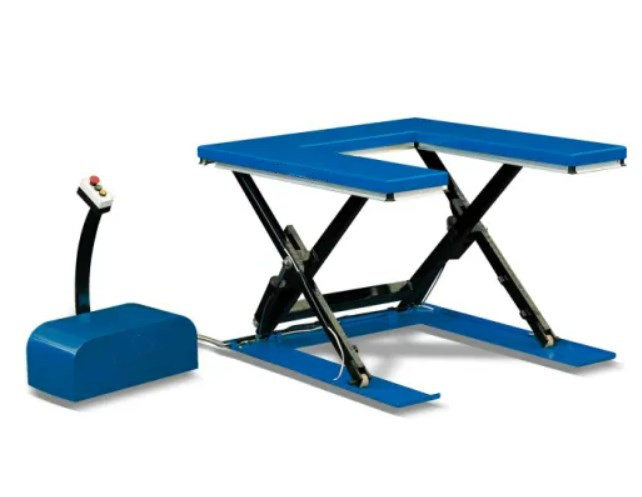

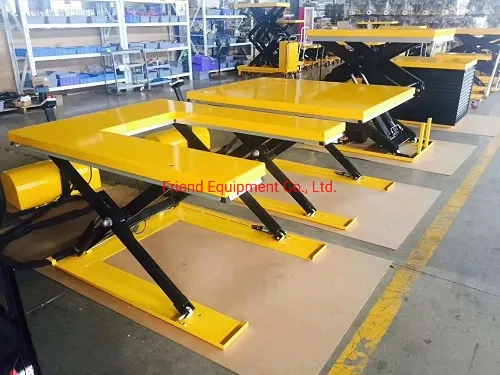

'U' Shaped Top Platform

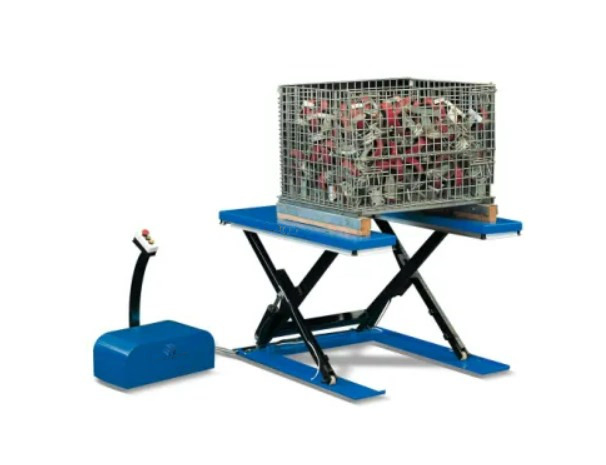

Specially for handling pallets, no need for a pit or load ramps.
They are manufactured to all European safety standards including EN1570: 1990.
Remote power pack with pedestal and controls, pretected to IP54.
Upper platform fitted with safety perimeter to prevent descent on contact with obstructions.
24V control box with UP and DOWN buttons and emergency stop.
External power pack equipped with a relief valve against overloading and a compensated flow valve for controlling lowering speed.
Hose burst safety valve to stop the lift table lowering in case of hose breakage.
Removable lifting eyes to facilitate handling and installation of the lift table.
Mechanical safety chocks for maintenance.
Oiless bushings on pivot points.
Quick assembly joint for oil hose.
U Type Hydraulic Stationary Pallet Scissor Lift Table

U Type Hydraulic Stationary Pallet Scissor Lift Table

Model		HE500	HE1000	HE1500	HE2000
Capacity	(kg)	500	1000	1500	2000
Platform Size	LxW (mm)	1400x1200	1400x1200	1500x1300	1500x1300
Lifting Height	H (mm)	800	800	720	720
Table Max. Height	H (mm)	885	885	820	820
Table Min. Height	h (mm)	85	85	100	100
Lift Time	(sec)	25~30	25~30	30~40	30~40
Power Pack		380V/50Hz	380V/50Hz	380V/50Hz	380V/50Hz
Net Weight	(kg)	207	280	380	500
