China Warehouse 4000kg Stationary Electric Hydraulic Elevating Lift Table

Product Description

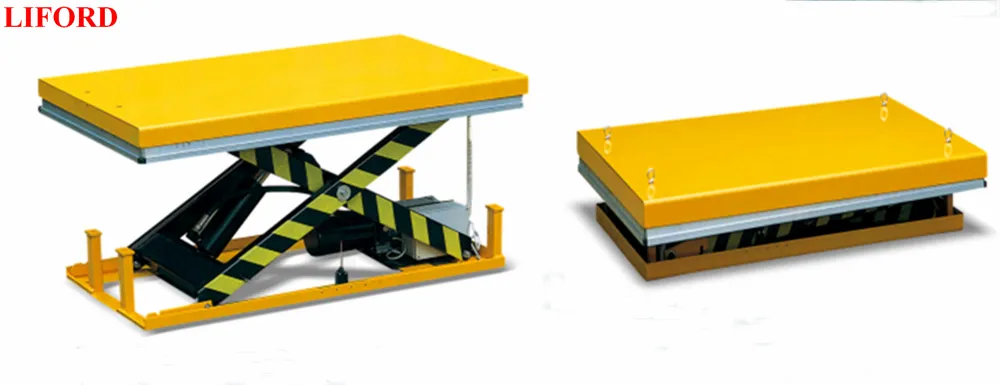

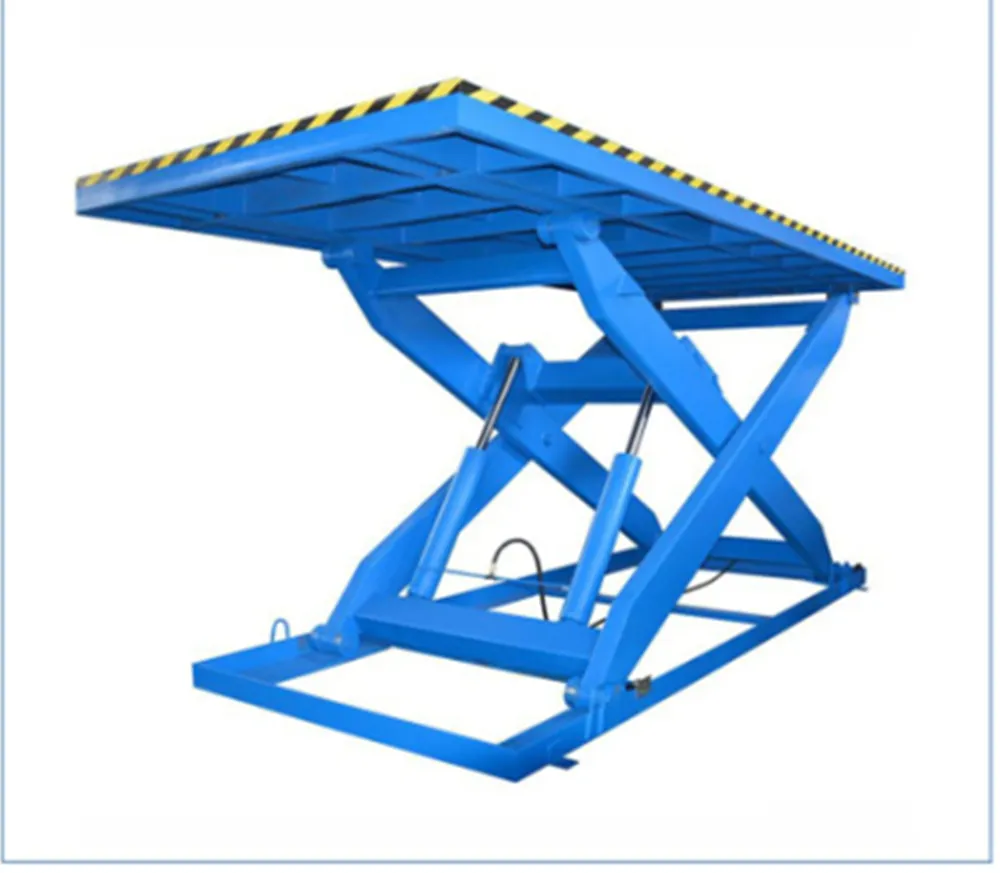

Warehouse 4000kg heavy duty stationary electric hydraulic elevating lift table

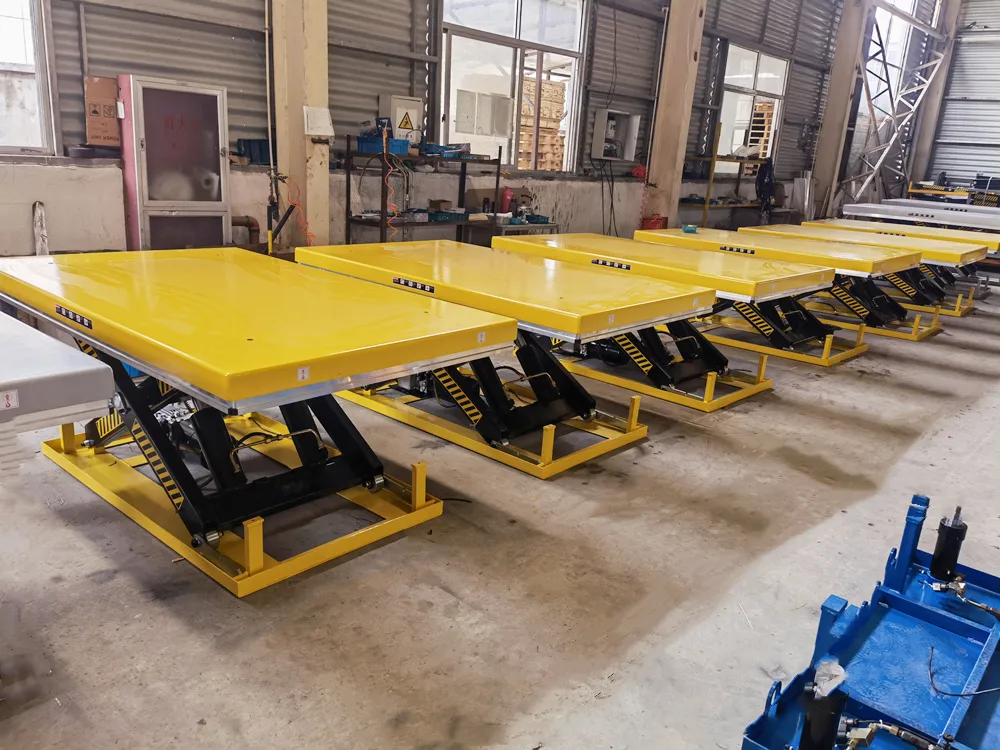

Warehouse 4000kg Stationary Electric Hydraulic Elevating Lift Table

Warehouse 4000kg Stationary Electric Hydraulic Elevating Lift Table

Feature of Warehouse 4000kg heavy duty stationary electric hydraulic elevating lift table

1. Heavy duty design 1000-4000kg; strong structure and steady performance;
2. High quality pump station is with smooth lifting feature;
3. with anti-pinch and overload protection function;
4. External power pack equipped with a relief valve against overloading and a compensated flow valve for controlling lowering speed;
5. Upper platform fitted with safety perimeter to prevent descent on contact with obstructions;

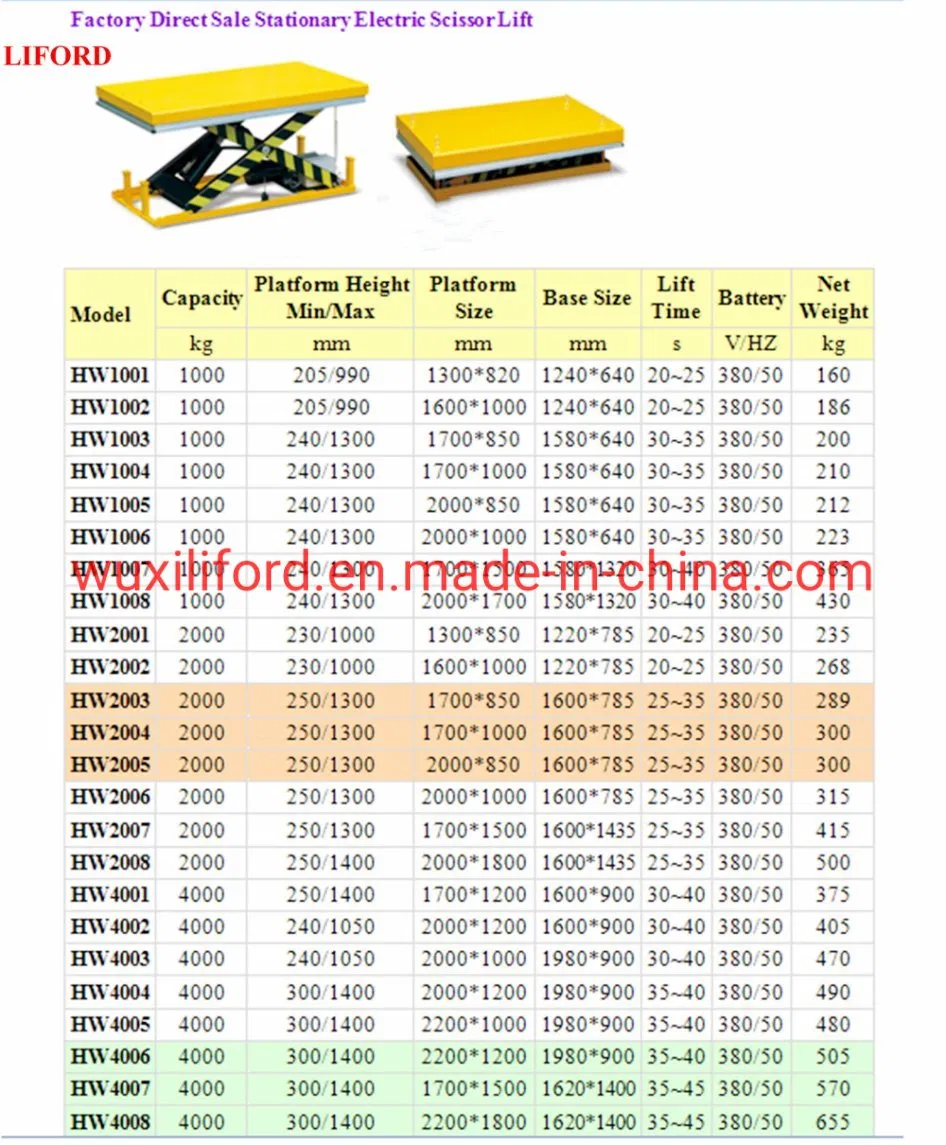

Technical Data of Warehouse 4000kg heavy duty stationary electric hydraulic elevating lift table

Model	Capacity	Platform Height Min/Max	Platform Size	Base Size	Lift Time	Battery	Net Weight
Model	kg	mm	mm	mm	s	V/HZ	kg
HW1001	1000	205/990	1300*820	1240*640	20~25	380/50	160
HW1002	1000	205/990	1600*1000	1240*640	20~25	380/50	186
HW1003	1000	240/1300	1700*850	1580*640	30~35	380/50	200
HW1004	1000	240/1300	1700*1000	1580*640	30~35	380/50	210
HW1005	1000	240/1300	2000*850	1580*640	30~35	380/50	212
HW1006	1000	240/1300	2000*1000	1580*640	30~35	380/50	223
HW1007	1000	240/1300	1700*1500	1580*1320	30~40	380/50	365
HW1008	1000	240/1300	2000*1700	1580*1320	30~40	380/50	430
HW2001	2000	230/1000	1300*850	1220*785	20~25	380/50	235
HW2002	2000	230/1000	1600*1000	1220*785	20~25	380/50	268
HW2003	2000	250/1300	1700*850	1600*785	25~35	380/50	289
HW2004	2000	250/1300	1700*1000	1600*785	25~35	380/50	300
HW2005	2000	250/1300	2000*850	1600*785	25~35	380/50	300
HW2006	2000	250/1300	2000*1000	1600*785	25~35	380/50	315
HW2007	2000	250/1300	1700*1500	1600*1435	25~35	380/50	415
HW2008	2000	250/1400	2000*1800	1600*1435	25~35	380/50	500
HW4001	4000	250/1400	1700*1200	1600*900	30~40	380/50	375
HW4002	4000	240/1050	2000*1200	1600*900	30~40	380/50	405
HW4003	4000	240/1050	2000*1000	1980*900	30~40	380/50	470
HW4004	4000	300/1400	2000*1200	1980*900	35~40	380/50	490
HW4005	4000	300/1400	2200*1000	1980*900	35~40	380/50	480
HW4006	4000	300/1400	2200*1200	1980*900	35~40	380/50	505
HW4007	4000	300/1400	1700*1500	1620*1400	35~45	380/50	570
HW4008	4000	300/1400	2200*1800	1620*1400	35~45	380/50	655

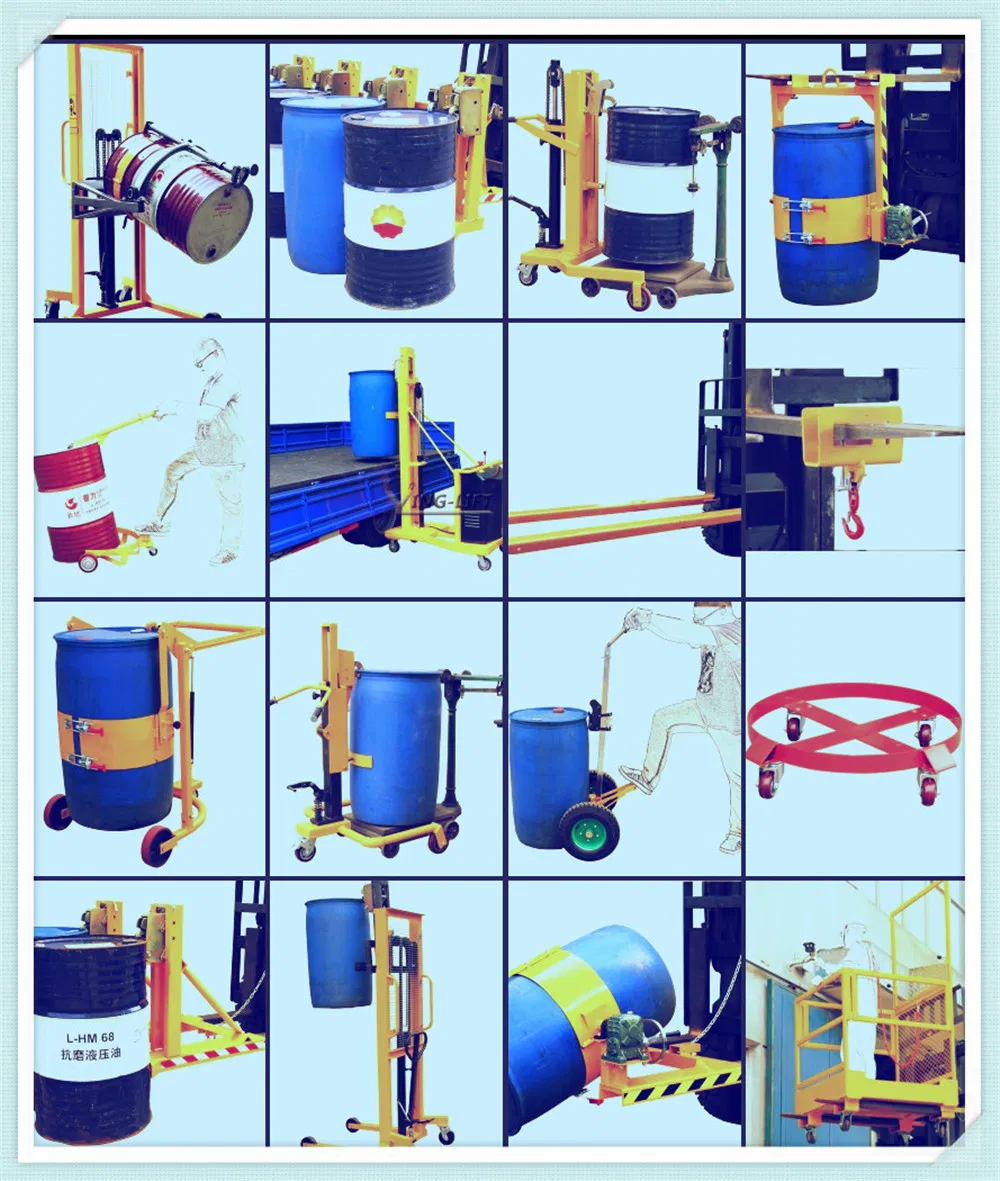

Related Other Drum Handlers

Customer visiting & positive feedback
Wuxi Liford team adhere to implement quality to every detail by strictly arranging production and inspection. We have established good cooperative relations with over 100 leading enterprises in China, and nearly one hundred merchants in more than 20 countries and areas.

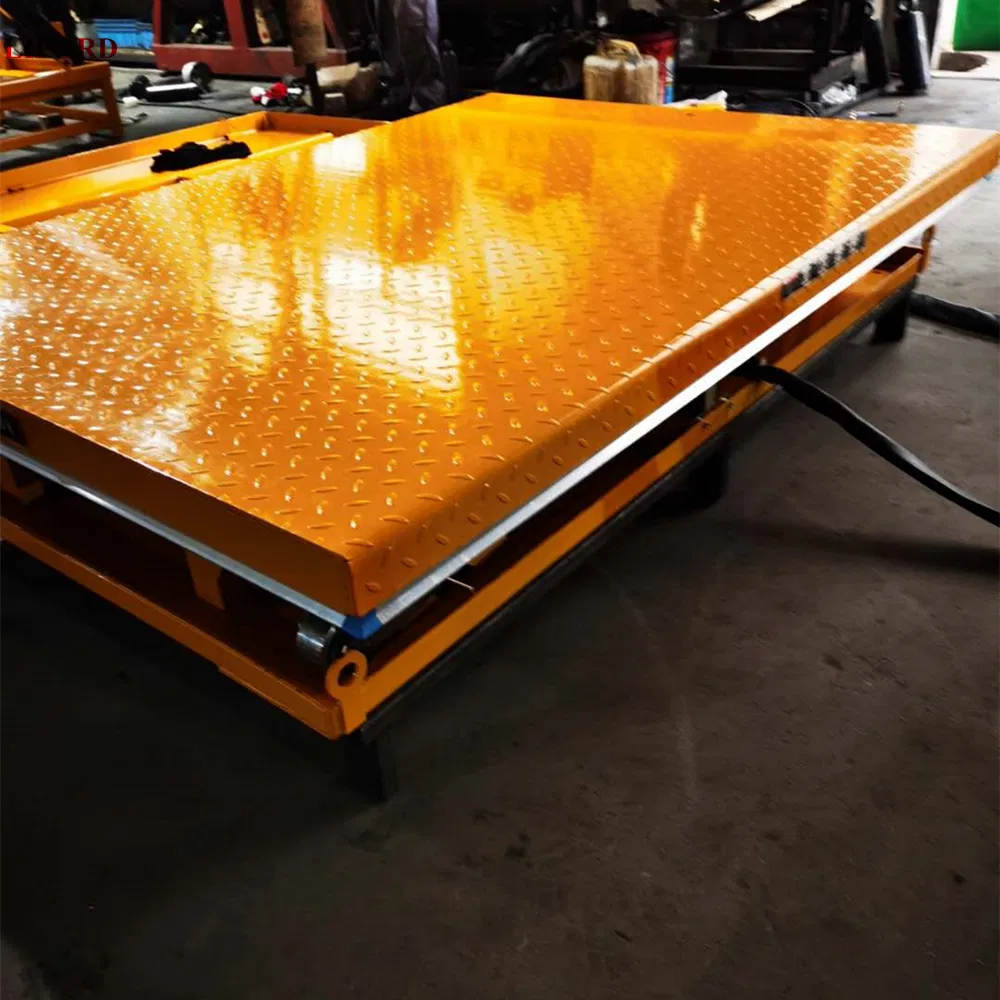

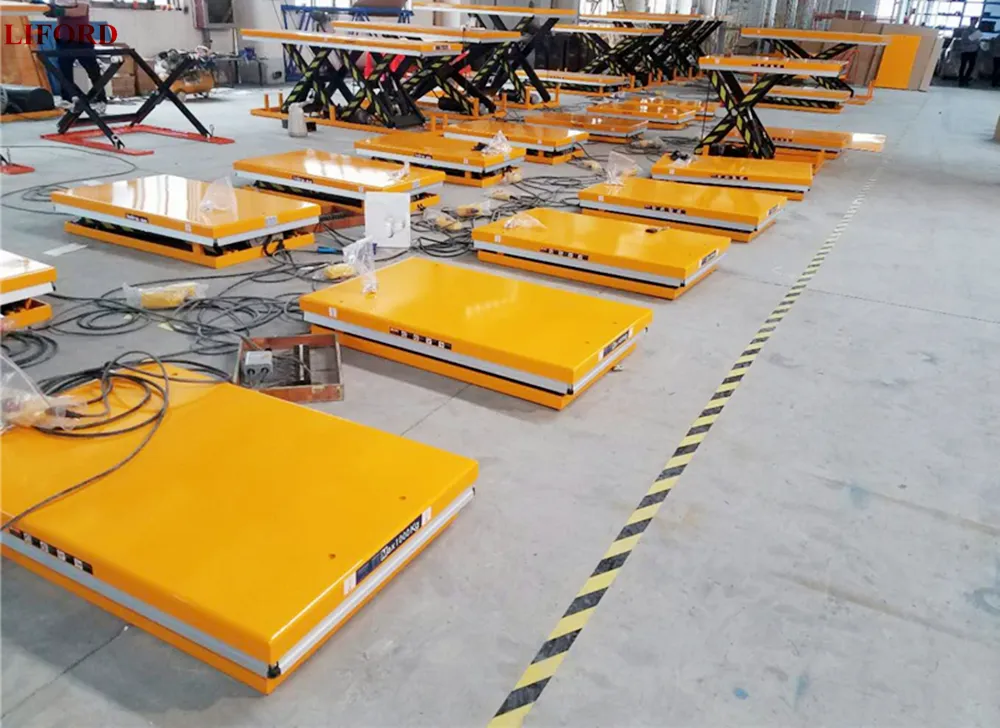

Warehouse 4000kg Stationary Electric Hydraulic Elevating Lift Table

Why Choose Us?
Our advantages in electro-coating line & material handling equipment line:
1. More than 10 years' professional experience in electro-coating line and material handling industry;
2. Fast production & in-time delivery that never delay your project and usage;
3. One-stop custom service and value-added service to save your time and cost;
4. OEM/ODM Services are available. We can design and produce various Non-standard Parts according to your specific needs;
5. All finished products are 100% inspected before shipment;
6. Strong and perfect packing for each items:
---For air delivery, we use middle strong cartons and pack by packing belt;
---For sea delivery, we pack all the cartons by strong pallet to make sure our customers to receive the goods in perfect packing condition.

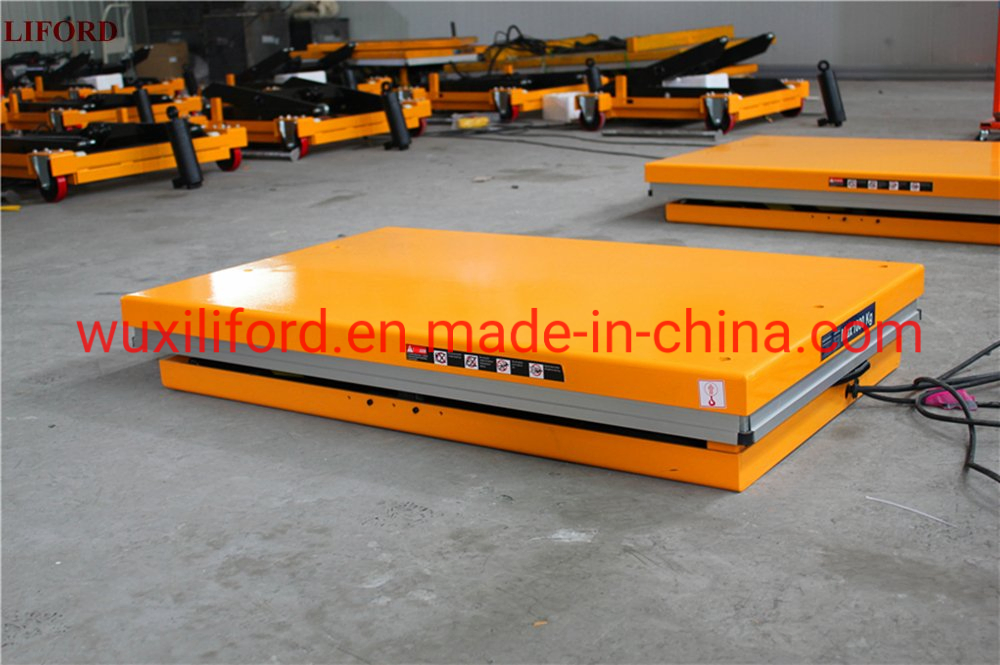

Warehouse 4000kg Stationary Electric Hydraulic Elevating Lift Table

About Wuxi Liford
Since its inception, Wuxi LIFORD has always paid great attention to maintaining a high level of quality control and process management. We will assure that our high quality products and best service is your first choice and favorite supplier in China. Sincerely welcome cooperation from both home and abroad!

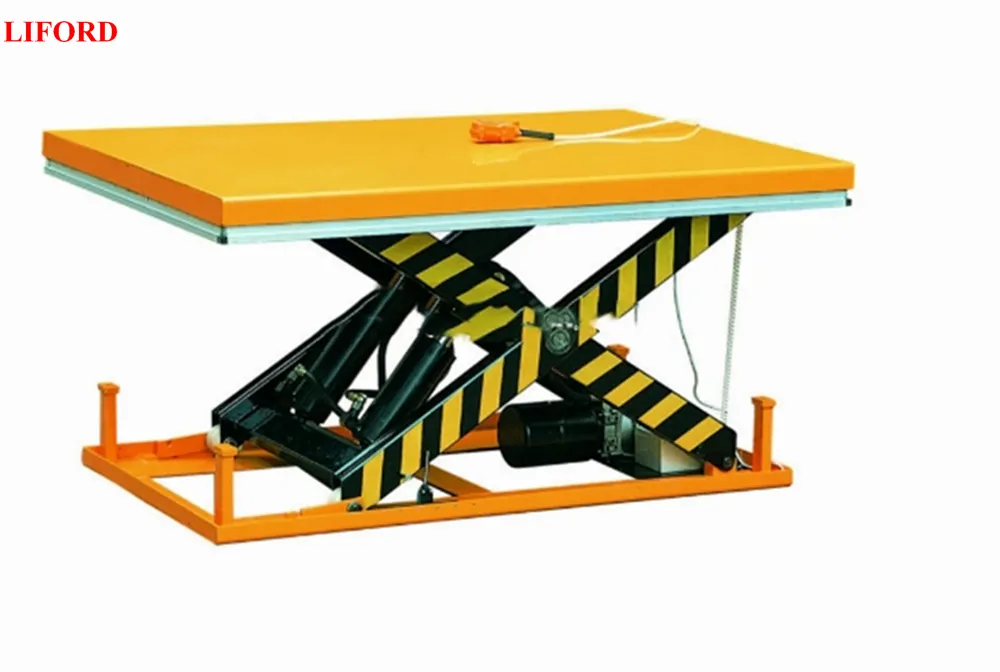

Warehouse 4000kg Stationary Electric Hydraulic Elevating Lift Table
