Product Description

Warehouse Garage Use Materials Handling Goods Lifting Platform

Brief Introduction:

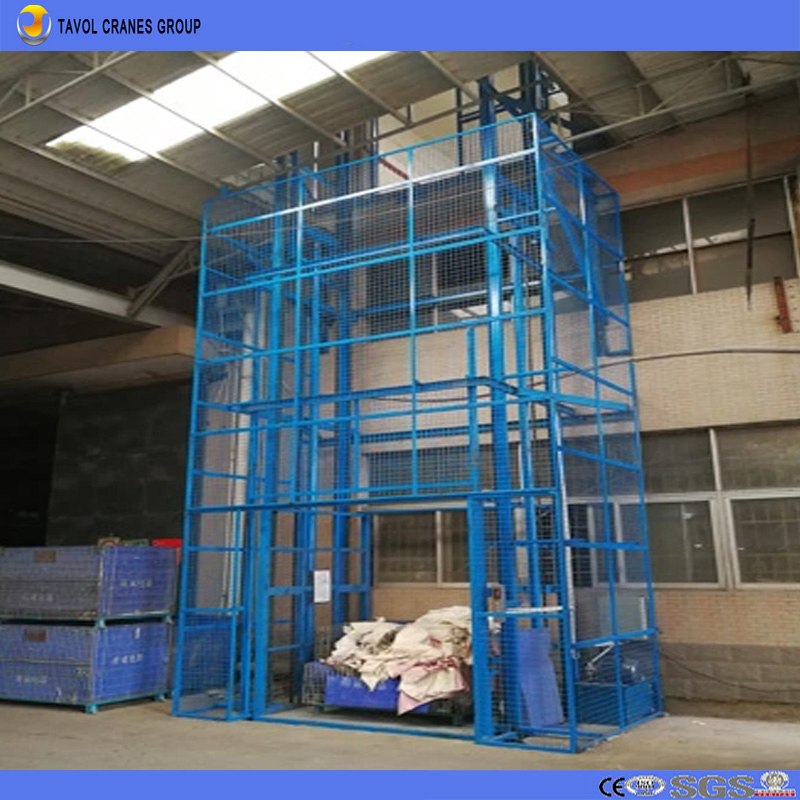

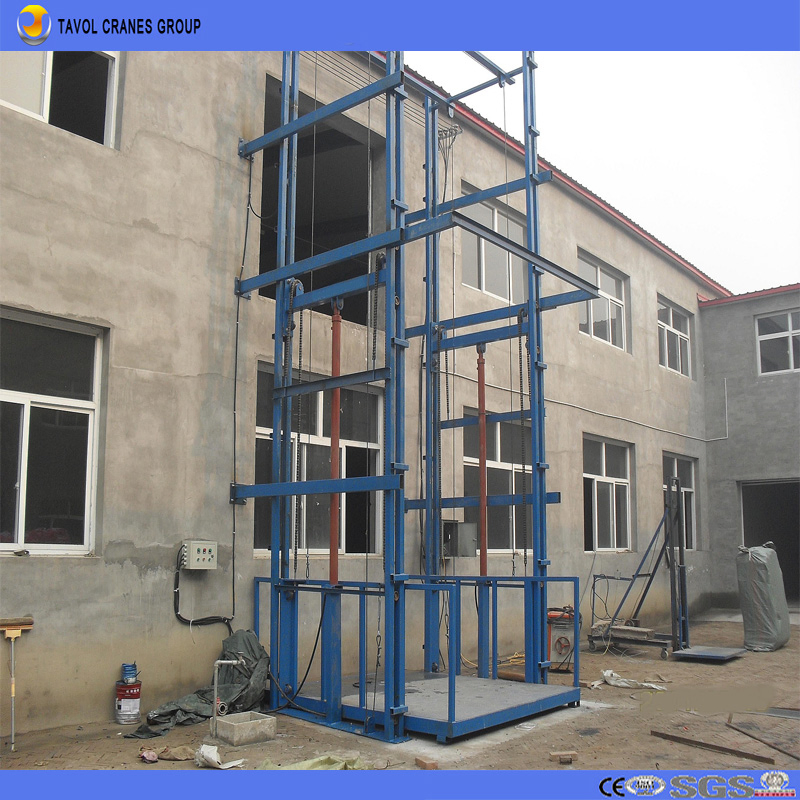

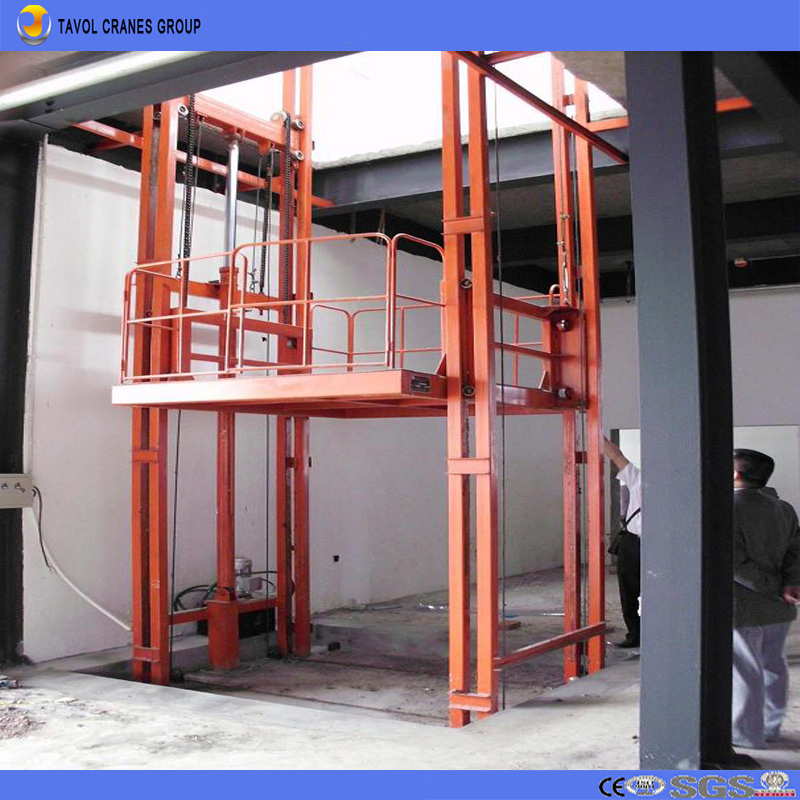

This model cargo lift provides fast, efficient, convenient and safe access to mezzanines, balconies, basements, and
any levels in many floors building. Cargo lift can be installed indoor and outdoor applications.

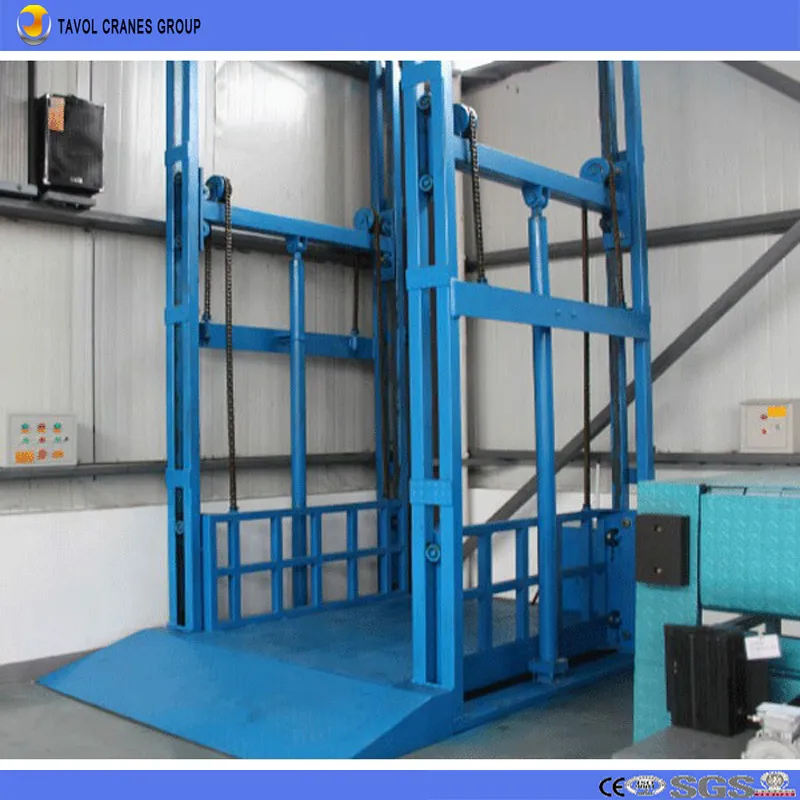

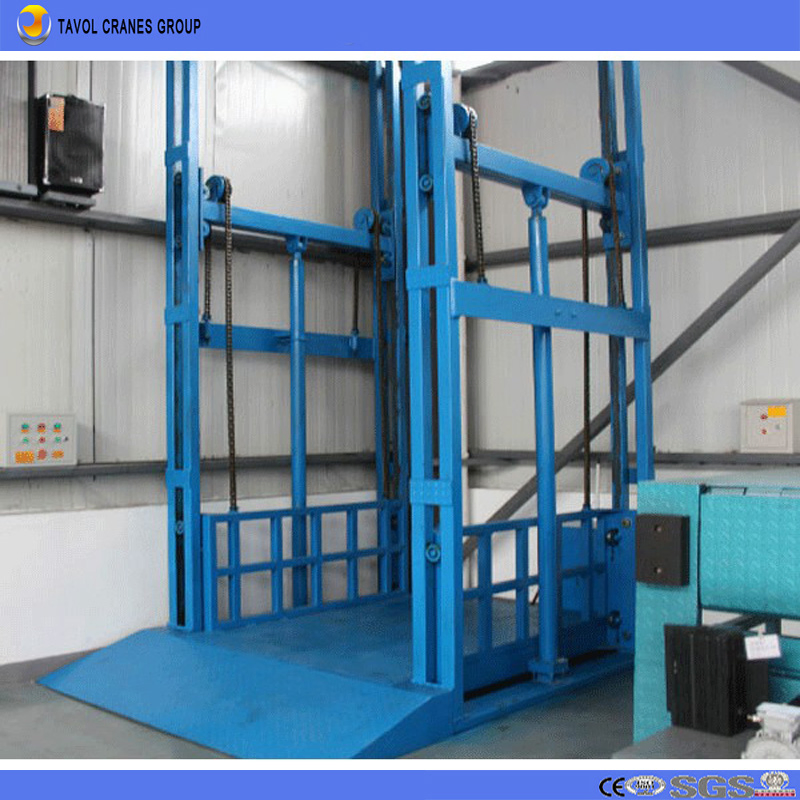

Cargo lift can be installed on ground. Fixed ramp offered for you will provide convenient access for loading/unloading.
Enclosure around is available for customer's option.

Advantages:

1.High load capacity for cargo transport to higher heights

2.Minimum height 150-300mm

3.simple operation and reliable

4.it can be designed according to your demand

5.hydraulic and electric drive

6.Max. rated loading capacity can be 10tons

SPECIFICATIONS(CUSTOMIZED)

Model	Platform Size(mm)	Load Capacity(kg)	Lift Height(m)	Self Height(mm)	Motor Power(kw)
SJD0.5-2.5	1500*1500	500	2.5	100	2.2
SJD0.5-10	2000*3000	500	10	120	3.0
SJD1-3.5	1400*1300	1000	3.5	120	3.0
SJD1.5-5.5	2000*2000	1500	5.5	150	4.0
SJD2-4	2700*1800	2000	4.0	150	4.0
SJD3-8	2500*2500	3000	8.0	180	5.0
SJD5-15	2500*2500	5000	15.0	180	7.5
SJD10-7	4500*3500	10000	7.0	280	7.5

Safety devices:

Emergency drop valve	----------	The lift can go down to the nearest floor by hand when the power is cut off.
Emergency stop button	----------	The lift can be stooped at any emergency.
Safety rope	----------	It can run with the chain to protect the stability and safety of the lift.
Anti-explosion valve	----------	when the hydraulic system pipe fracture, it can cut down the channel of the oil to stop the falling
Spillover valve	----------	It can prevent high pressure when the lift moves up.
Electrical protection	----------	24 V safety control, thermal overload protection, open-phase protection.

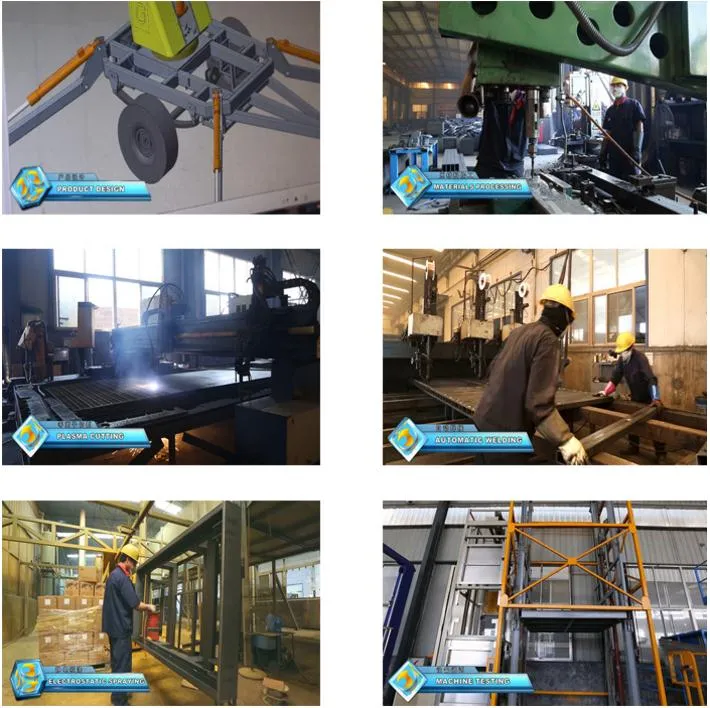

Production Process:

Product Certificates:

Our Services:

1. Once provide us the requirement, the details technical data and CAD drawing will provide you at the first time.

2. Strict quality control system, supervision the work to ensure the best crane for you.

3. Strict production line, make sure manufacture the goods on time.

4. Best cooperation forwarder provide the soonest and reliable service for our goods.

5. If needed, senior engineers can be your side do the installation guide and training.
