XCMG Brand Cargo Manlift Lift Platform Xgs43 Hydraulic Telescopic Arm Lift Drive Work Platform with Ladder

Product Description

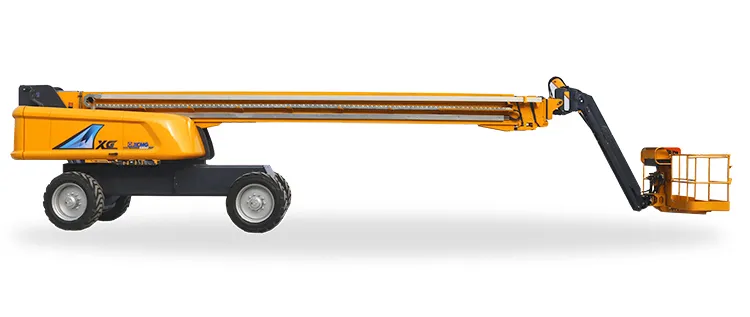

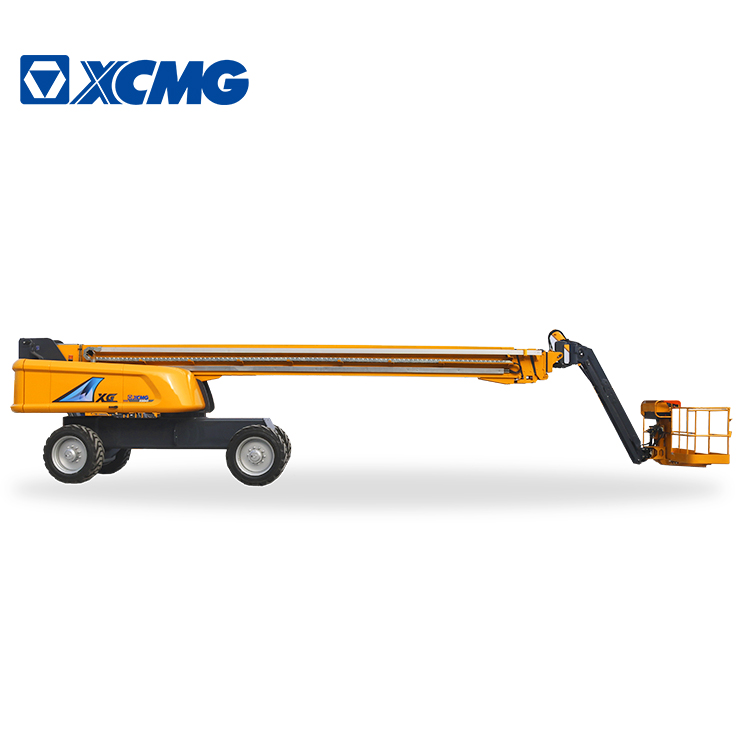

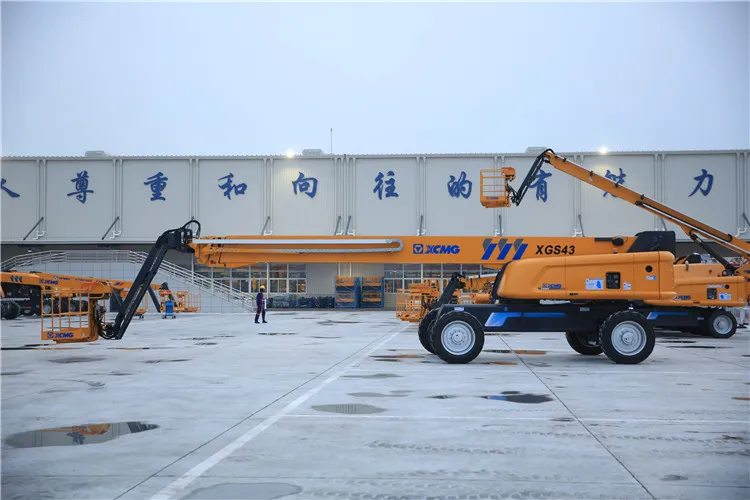

XCMG Brand Cargo Manlift Lift Platform XGS43 Hydraulic Telescopic Arm Lift Drive Work Platform with Ladder.

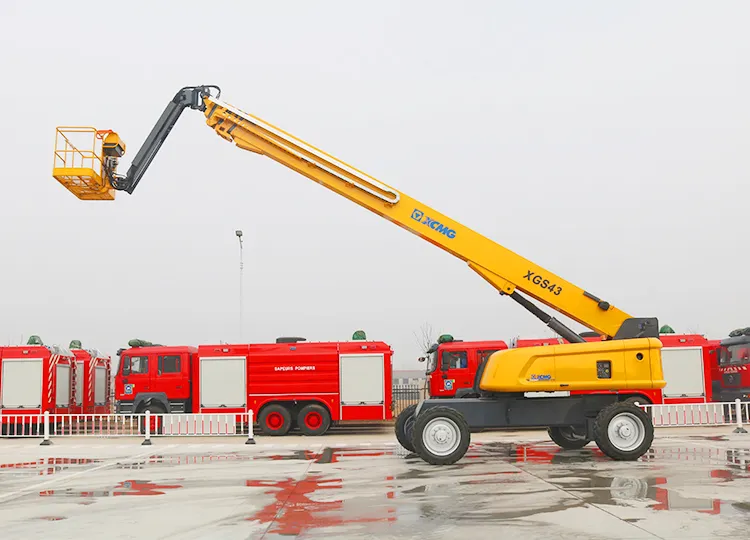

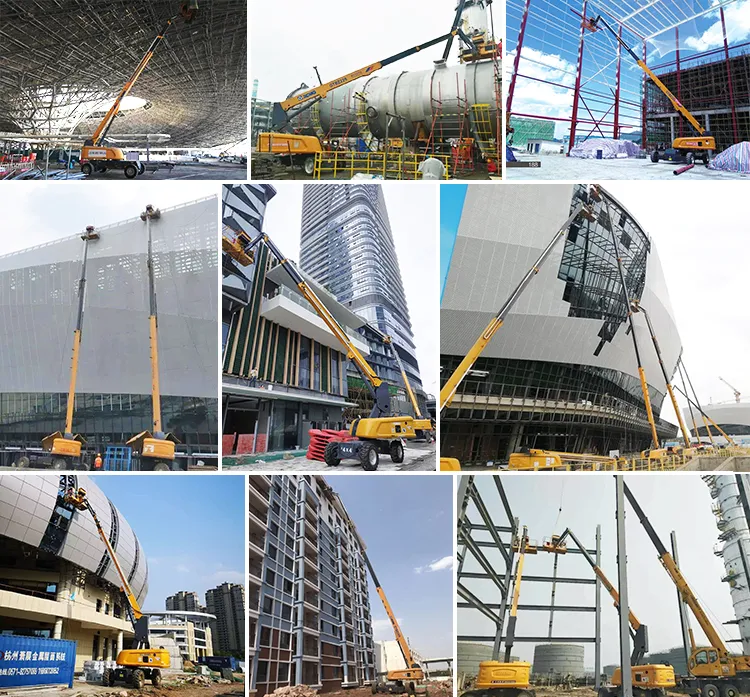

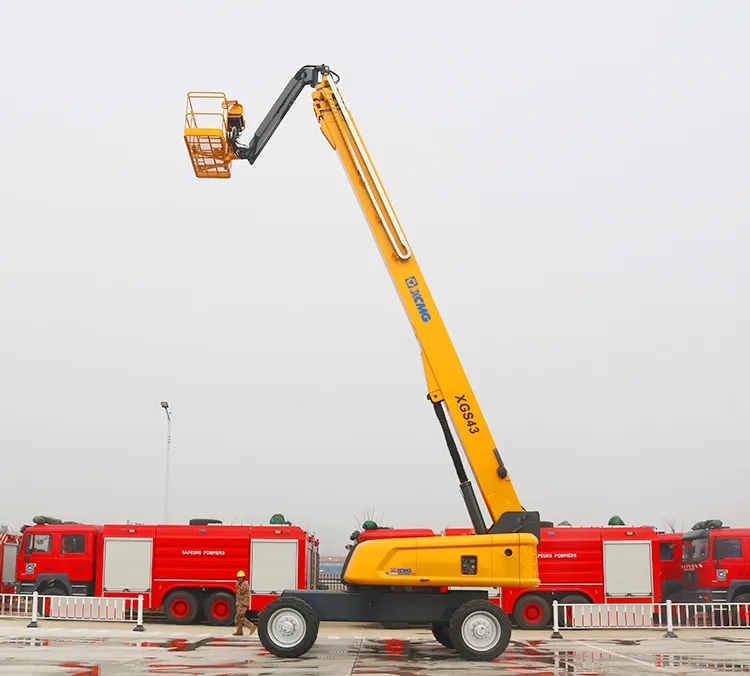

XGS43 self-propelled Telescopic Mobile Elevating Work Platform, 43.3m operation height, 450kg carry capacity, maximum 40% climbing capacity, dual operation amplitude curves; both the operation height and amplitude are advanced in the industry; additional 2.44m swing crank arm with 130° elevation angle and 75° swing range, a wider operation area; when the axles are retracted, the crank arm can swing to 160°, which reduces the machine size for easy transferring; with outstanding operation performance and high carrying capacity, the machine can satisfying users' demands from building construction, bridge and equipment maintenance, shipyard and petrochemical industry and users from rental service.

* 2.4m wide platform, enough for carrying tools and materials.

* Dual work-amplitude curve leads the industry in terms of work height and range.

* This vehicle is equipped with a swinging crank 2.44m long, with pitching angle up to 130° and leftwards/rightwards swinging angle up to 75°, effectively widening the work range.

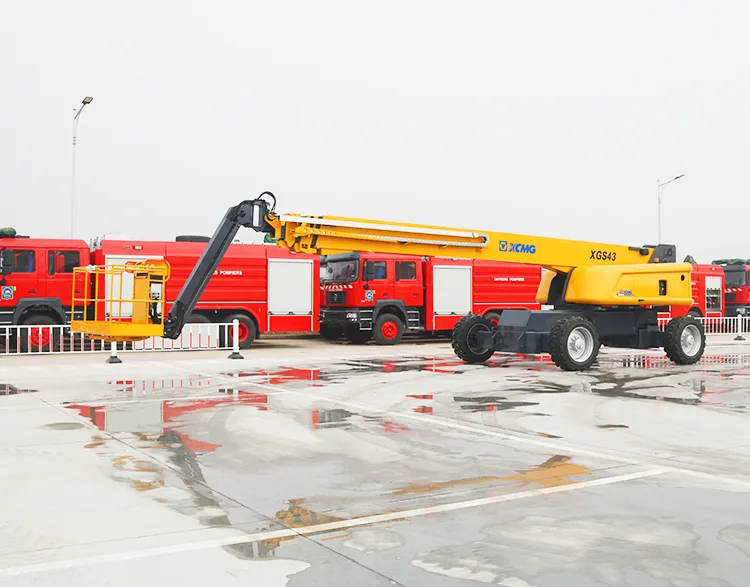

* The crank should swing backward by 160°, retracted under the boom, saving the transportation and storage room.

* 230kg and 450kg loading capacity, leading in the industry.

* 360° turntable, luffing and telescopic straight arm and swing ad luffing crank arm during aerial operation ensure complete operation of surrounding buildings without moving.

* Four wheel drive and steering features strong drive capacity and flexible steering.

* Axle balance control system could enable the axle automatically to adapt to the terrain, suitable for cement, pitch, soft roads and other rough mountainous roads.

Item	Unit	XGS43
Overall Length (Transport Status)	Mm	14.9 (12.0)
Overall Width (With Shaft Retracted/Extended)	Mm	2490/3800
Overall Height	Mm	3050
Wheelbase	Mm	3800
Max. Working Height	M	43.3
Max. Platform Height	M	41.3
Max.Working Range	M	25
Max. Load Capacity	Kg	230 (Unrestricted)/450 (Restricted)
Luffing Range Of Boom	°	-1 ~ +75
Slewing Angle Of Turntable	°	360°
Max Tail Swing (With Axle Retracted/Extended)	Mm	2390/1725
Platform Size	Mm	2400×900
Slewing Angle Of Platform	°	160
Overall Weight	Kg	22000
Max. Traveling Speed	Km/H	5
Min. Turning Radius (With Axle Retracted/Extended)	M	8.2/10.8(Two-Wheel Steering) 5.8/6.8 (Four-Wheel Steering)
Min. Ground Clearance	Mm	320
Max. Grade Ability	%	40
Tire Specification	-	445/50D710
Engine Model	-	Perkins 1104D-44T
Engine Rated Power	Kw/(R/Min)	55.5/(2400)

1: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted

2: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC,

3: What about the delivery time?
A: 30 days after receiving the deposit.

4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.

5. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs.
