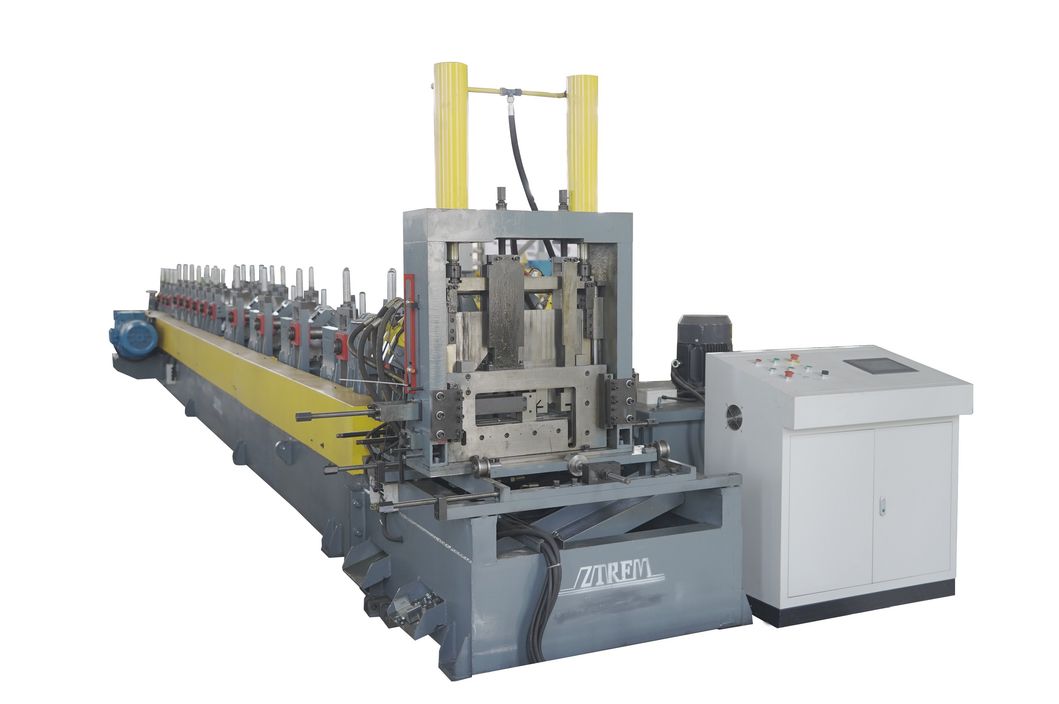

Adjustbale Size and Customized Type C Purlin Roll Forming Machine
Adjustbale Size And Customized Type C Purlin Roll Forming MachineProduct DescriptionThis is the equipment that mainly produces C Z U type steel.And it is widely used in automobiles, railway vehicles, building doors and Windows, transportation, shelves, electrical cabinets, highway guardrail, constru......
Send Inquiry
Product Description
This is the equipment that mainly produces C Z U type steel.And it is widely used in automobiles, railway vehicles, building doors and Windows, transportation, shelves, electrical cabinets, highway guardrail, construction steel structure and so on.Cold - formed Z C U- section steel specifications adjustable size, large compressive strength and other advantages.

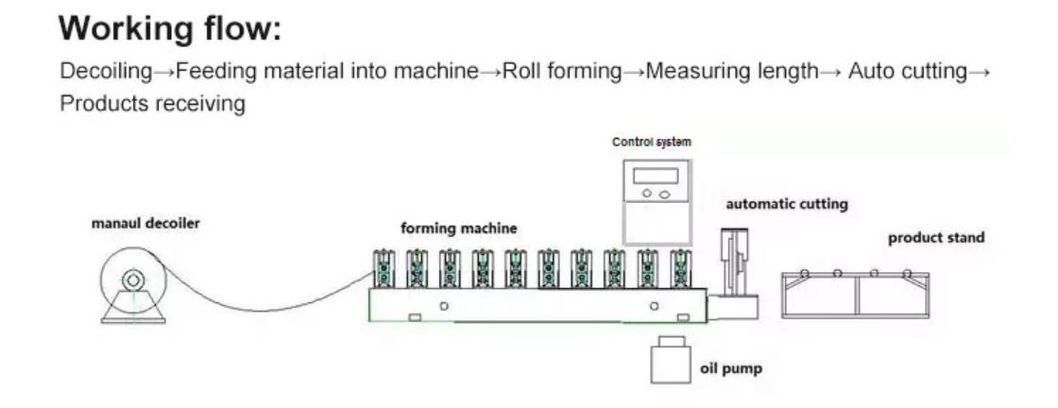

QTY TYPE
| Decoiler system | 1 | Manual/Hydraulic |
| Hydraulic shearing | 1 | Electric/Hydraulic |
| Reciving table | 1 | Simple manual table |
| Hydraulic station | 1 | Latest Edition |
| PLC control system | 1 | Automatic/Intelligent |

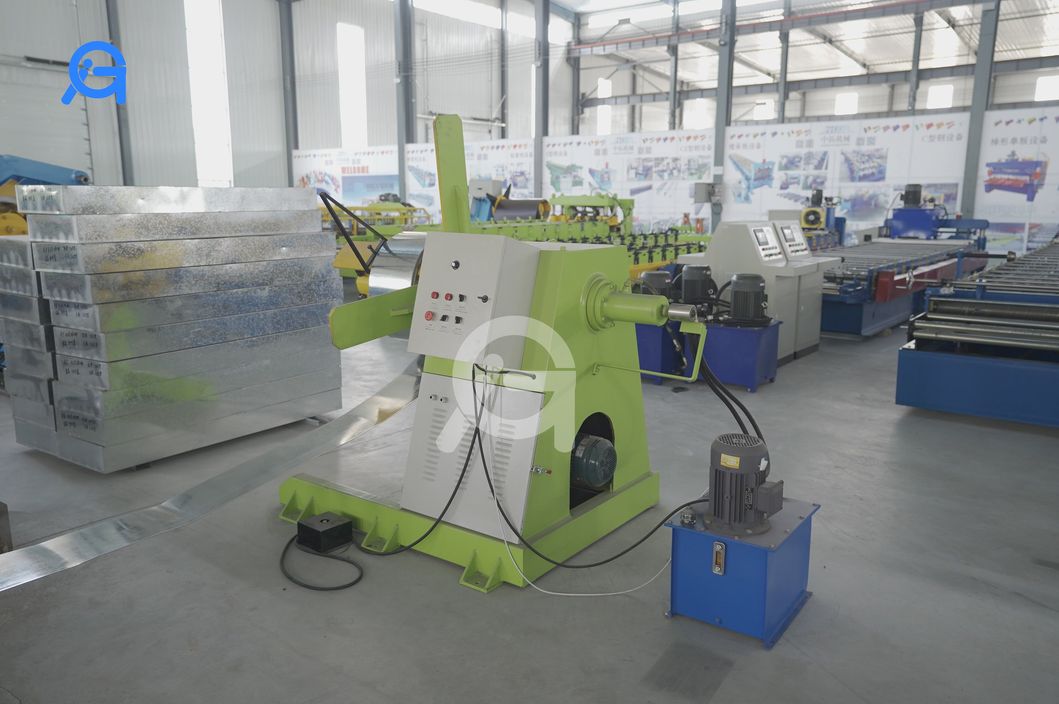

A Decoiler System
| Type | Hydraulic decoiler |
| Bearing | 3t |
| Note | Save time and labor |
B Feeding Inlet
| The Main Parts | Function |
a.manual broach b.a set of rubber wheels c.adopt stainless steel lead-in rod | a protect material b.make it smooth c. save material d.press the material tight |
Each section can be customized

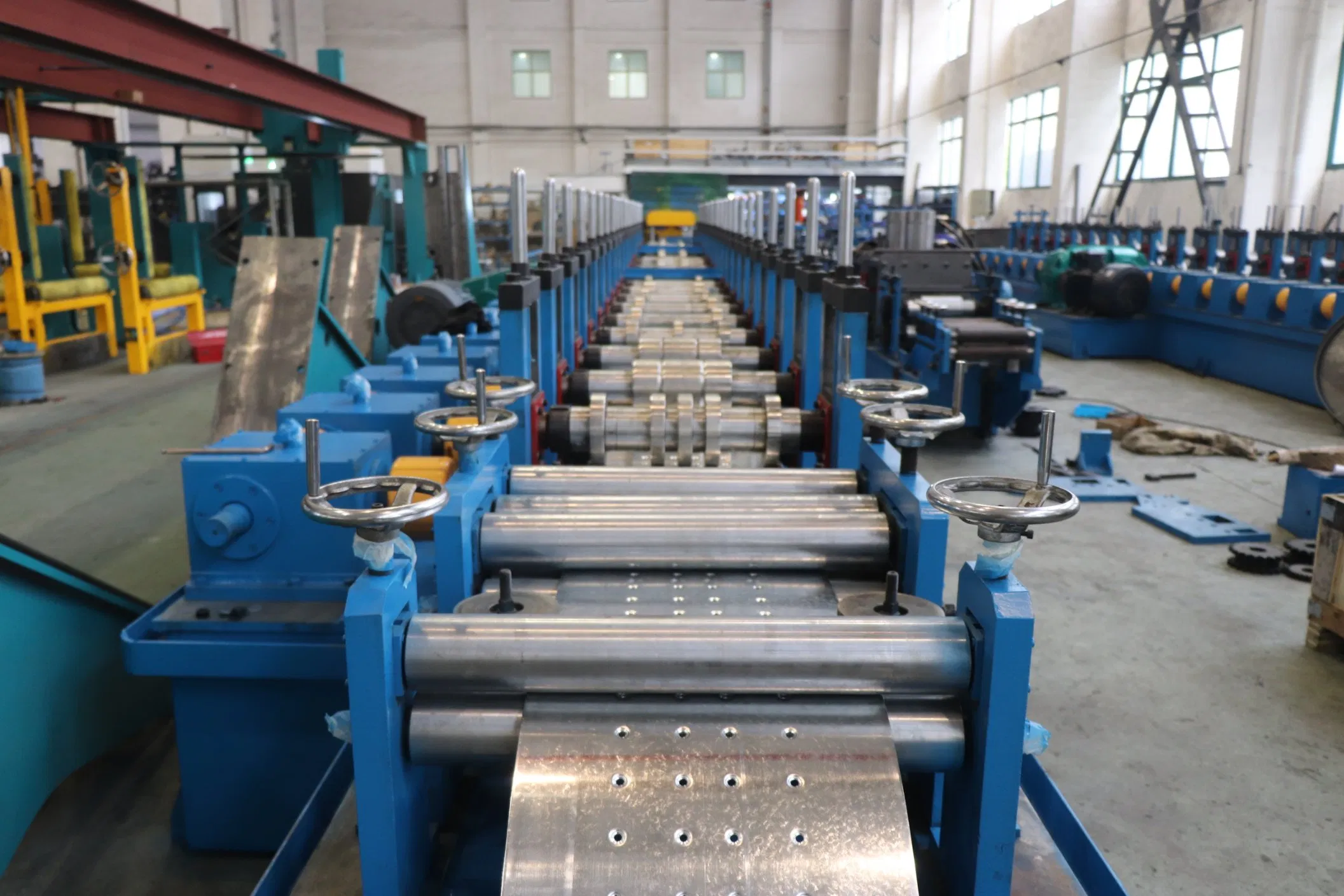

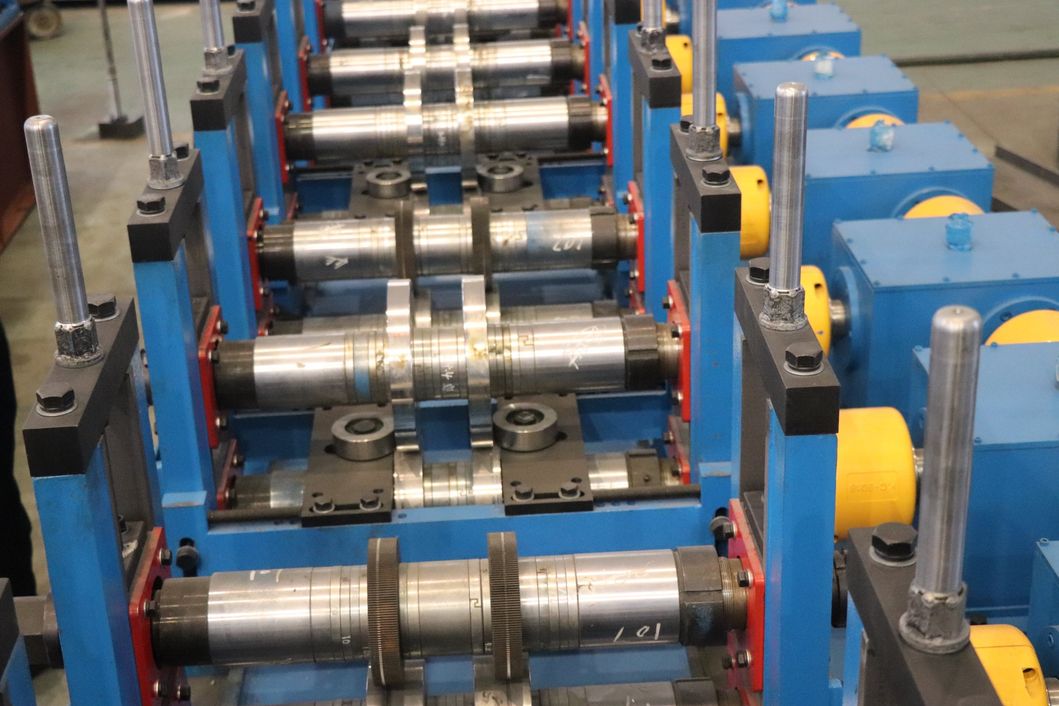

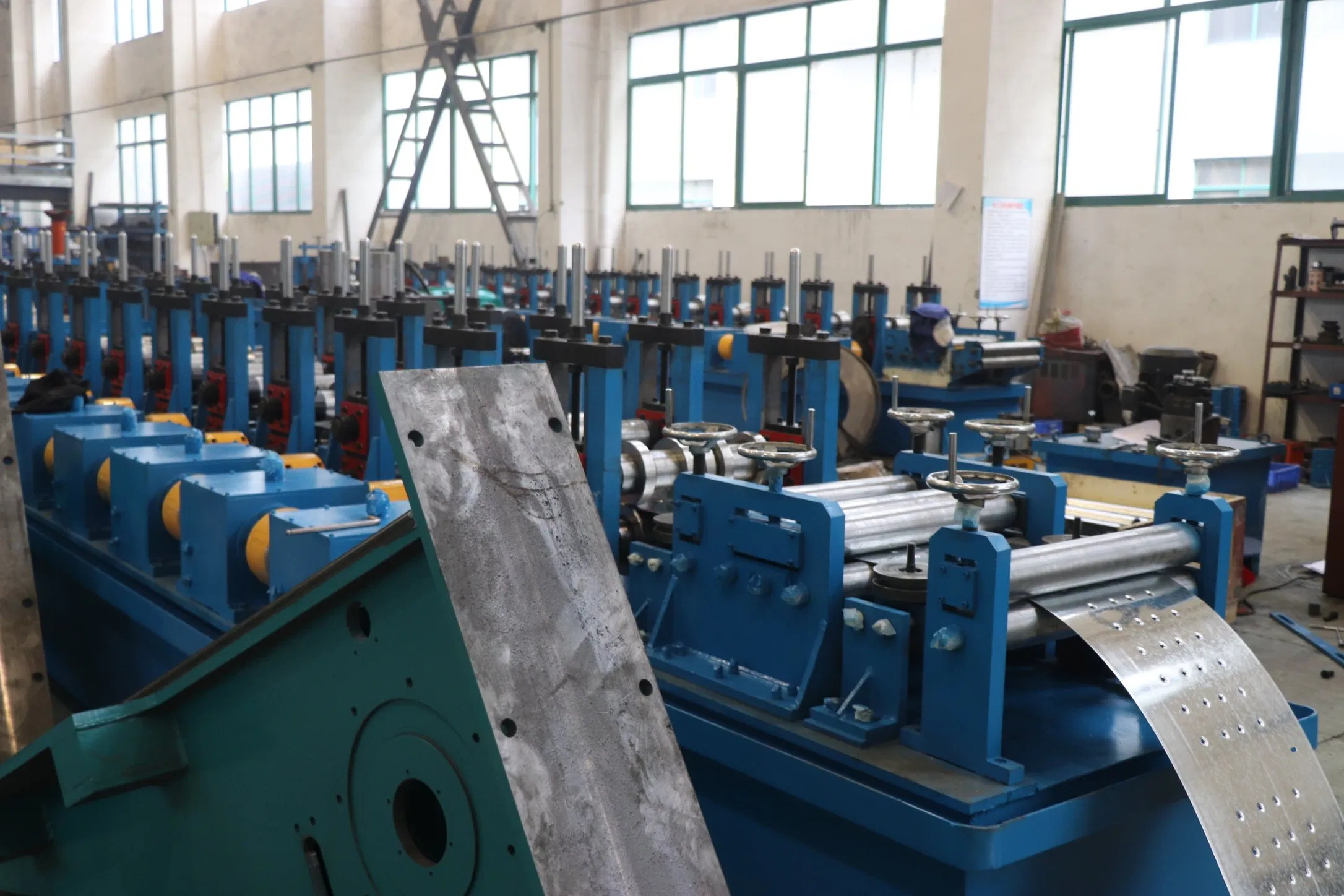

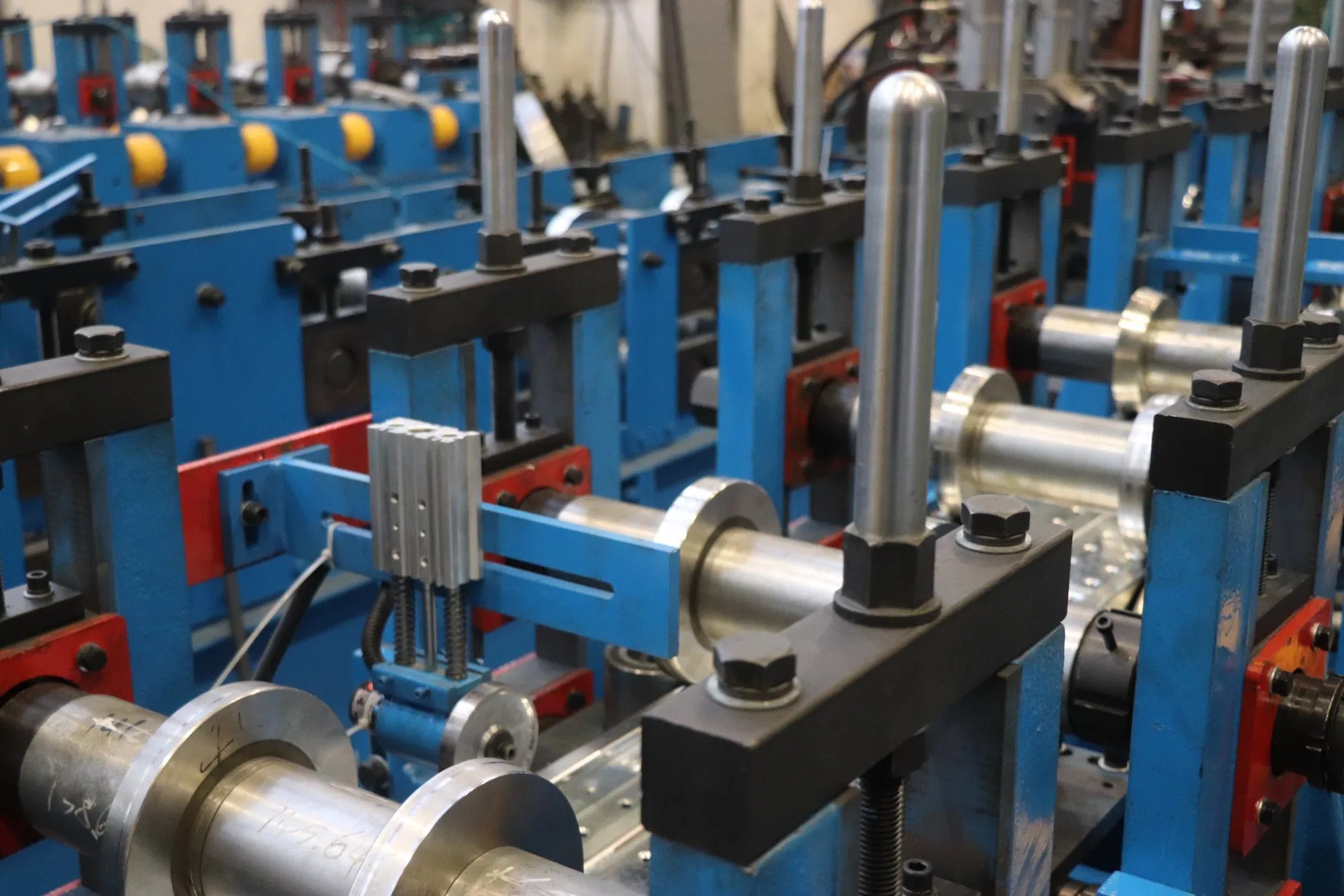

c Framework
| Stucture | Mainly arch stucture |
| Be made of | lifting eyes\ lifting holes rollers\ spacer \ blocks |
| Our advantages | a. Thicker wall b. more stable framework |
| Note | Gearbox drive more fluent |

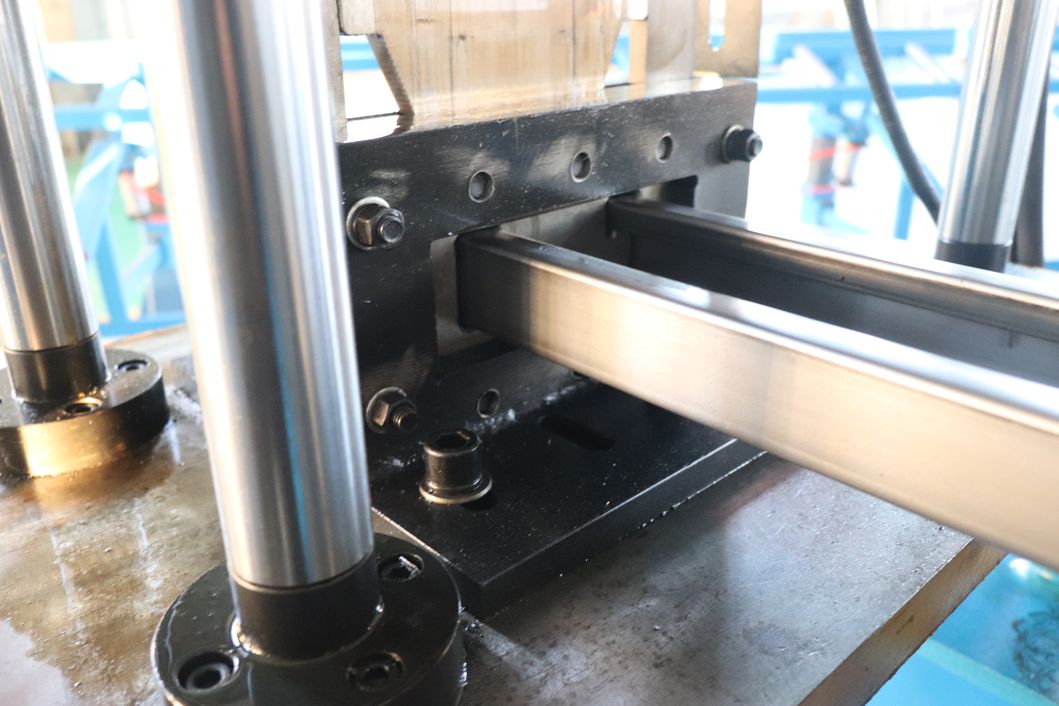

D shearing
| Cuting type | Electric cut | Hydraulic cut |
| Drive mode | electric motor | hydraulic station |
| Apply to | too hot and too cold area | any area |
| Weight of main part | about 8 tons (as actual situation ) |
| Drive mode | gearbox mode |
| Material of rollers | 45#steel / ball bearing steel |
| Hydraulic motor power | 15kw(as actual situation) |
| Motor power | 30kw |
| PLC control | Intellengent/International brand/touch screen |
| Colour of machine | any colour(as customer's requirment) |
| Speed of production | 30m/min(can be customized according to the customer's requirements) |
GENERAL INDUSTRY TECH Developing Co,Ltd (GEIT GROUP) is a designing, engineering and manufacturing company, based on many years experience in metallurgy industry field. We have our own factory in Botou-Heibei which is a factory that committed to designing and manufacturing of different types cold roll forming machines. GEIT GROUP is a professional manufacturer and exporter who is concerned with the design, development and production of cold roll forming machines.
