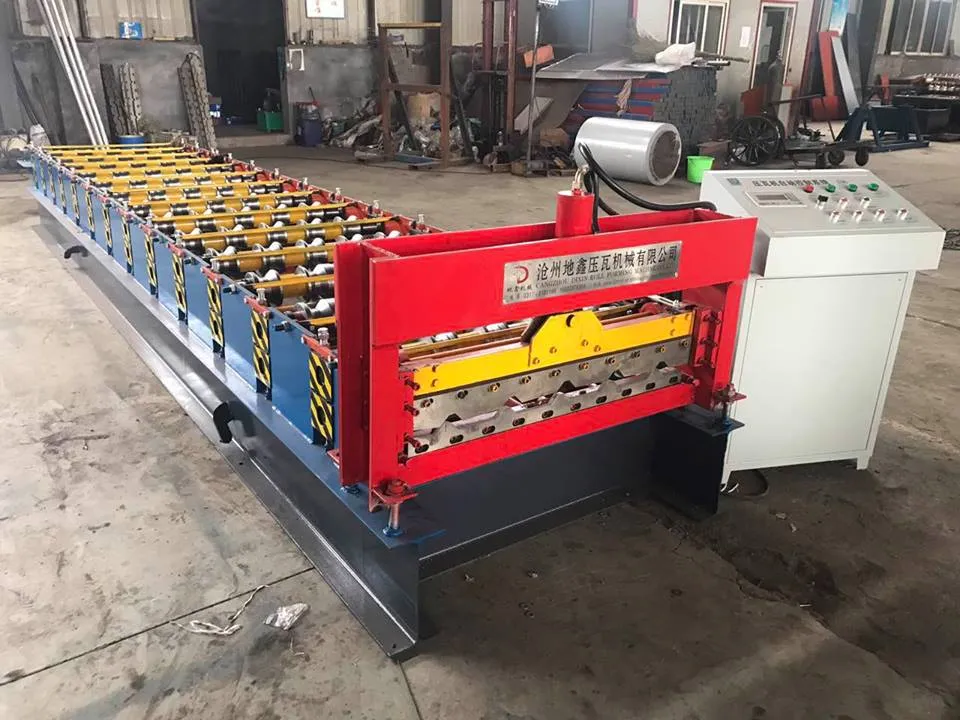

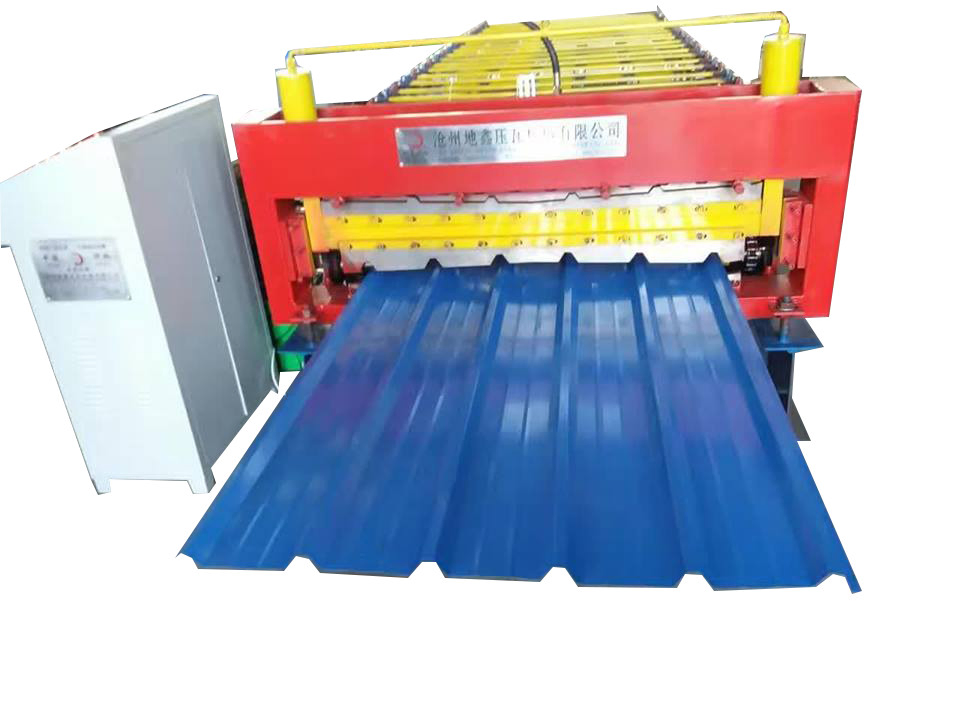

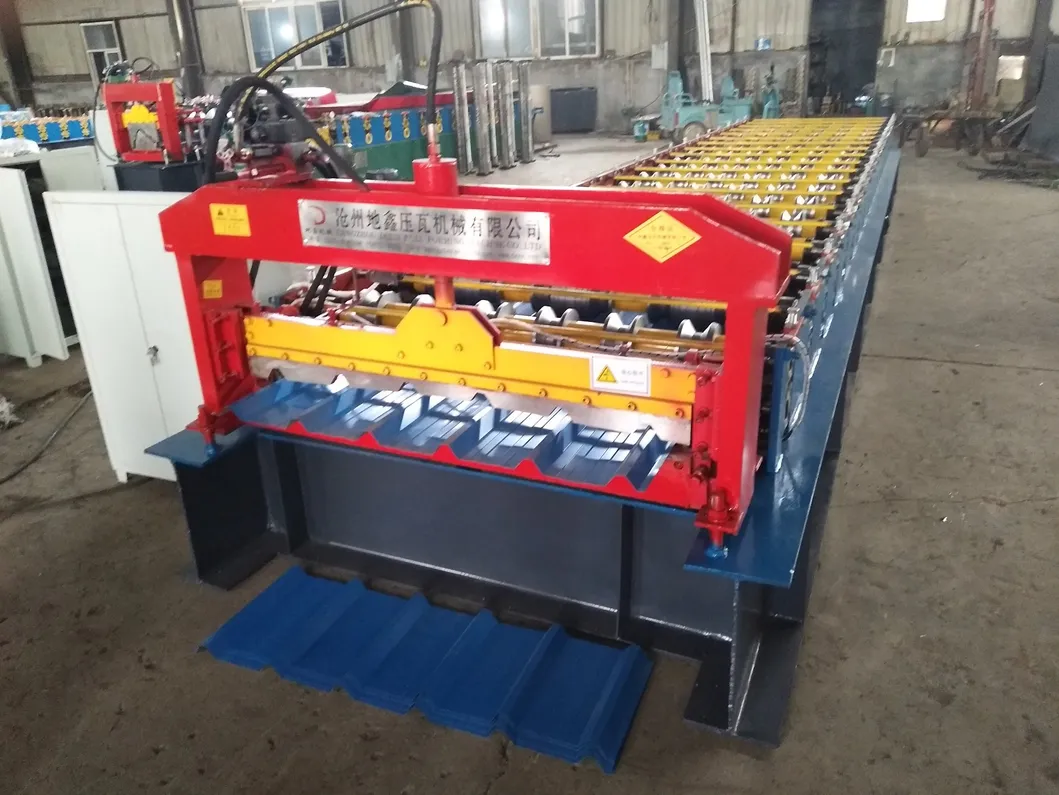

Dixin New Design for Brazil Roof Sheet Forming Machine
Dixin new design for Brazil roof sheet forming machineCangzhou Dixin Roll Forming Machine Co.,Ltd which has 8 years export experience, we ever sold machines all over the world, such as: US, UK, Canada, Russia, Italy, Brazil, Azerbaijan, Greece...1. Technique parameters(1) Processing material: Aluzi......
Send Inquiry
Product Description
Dixin new design for Brazil roof sheet forming machine
Cangzhou Dixin Roll Forming Machine Co.,Ltd which has 8 years export experience, we ever sold machines all over the world, such as: US, UK, Canada, Russia, Italy, Brazil, Azerbaijan, Greece...
1. Technique parameters
(1) Processing material: Aluzinc/galvanized steel/colored steel coil
(2) Material thickness: 0.3-0.8mm
(3) Effective width: 1020mm
(4) Feeding width: 1250mm
(5) Main motor power: 5.5 kw
(6) Pump power: 4 kw
(7) Shaft diameter: 75mm
(8) Forming steps: 15 steps
(9) Roller material: 45# forged steel, with hard chrome plating
(10) Main frame: 300H steel
(11) Medium plate thickness: 14mm
(12) Control systerm: PLC computer control with inverter
(13) Power supply: 380V, 3 Phase, 50Hz
(14) 0veral sized: 7000mm*1500mm*1500mm
(15)Total weight: 3.5 tons
2. Work flow
Manual decoiler- Roll forming machine- PLC control- Hydraulic system - Post cut- Stacking
3. Specific description
(1) Manual decoiler
Un-powered, single head, max capacity: 5000kg
(2) hydraulic pump station
It is controlled by gear wheel oil pump, after filling the hydraulic oil into the hydraulic oil tank, the pump drive the cutting machine to begin the cutting job.
(3) Computer control cabinet
It adopts TaiDa PLC to control, the target sheet length is adjustable.
Computed mode has two modes: Automatic and manual.
Touch screen.
(4) Output table
It is used to load the finished sheet. This kind is convenient for shipment.
(5) Spare parts
4. Payment term
TT, you should pay 30% as the deposit on the order day, then pay 70% before delivery when you inspect goods well in factory or by video
5. Warranty
24 months, and lifelong technical support service
6. Installation
If you need, we will send one technician to your factory to install & testing the machine. You should assist the technician to get Visa and pay for flight tickets and local accommodation, and pay 80 USD/day for salary.
7. Package
Standard export package, water-proof package, covered with plastic film
This is one of our main products, hotselling used in Nigeria, and has been certificated by SGS, CE.
Hope further contact with you.
Tel:+86 18231737651
Cangzhou Dixin Roll Forming Machine Co.,Ltd which has 8 years export experience, we ever sold machines all over the world, such as: US, UK, Canada, Russia, Italy, Brazil, Azerbaijan, Greece...
1. Technique parameters
(1) Processing material: Aluzinc/galvanized steel/colored steel coil
(2) Material thickness: 0.3-0.8mm
(3) Effective width: 1020mm
(4) Feeding width: 1250mm
(5) Main motor power: 5.5 kw
(6) Pump power: 4 kw
(7) Shaft diameter: 75mm
(8) Forming steps: 15 steps
(9) Roller material: 45# forged steel, with hard chrome plating
(10) Main frame: 300H steel
(11) Medium plate thickness: 14mm
(12) Control systerm: PLC computer control with inverter
(13) Power supply: 380V, 3 Phase, 50Hz
(14) 0veral sized: 7000mm*1500mm*1500mm
(15)Total weight: 3.5 tons
2. Work flow
Manual decoiler- Roll forming machine- PLC control- Hydraulic system - Post cut- Stacking
3. Specific description
(1) Manual decoiler
Un-powered, single head, max capacity: 5000kg
(2) hydraulic pump station
It is controlled by gear wheel oil pump, after filling the hydraulic oil into the hydraulic oil tank, the pump drive the cutting machine to begin the cutting job.
(3) Computer control cabinet
It adopts TaiDa PLC to control, the target sheet length is adjustable.
Computed mode has two modes: Automatic and manual.
Touch screen.
(4) Output table
It is used to load the finished sheet. This kind is convenient for shipment.
(5) Spare parts
4. Payment term
TT, you should pay 30% as the deposit on the order day, then pay 70% before delivery when you inspect goods well in factory or by video
5. Warranty
24 months, and lifelong technical support service
6. Installation
If you need, we will send one technician to your factory to install & testing the machine. You should assist the technician to get Visa and pay for flight tickets and local accommodation, and pay 80 USD/day for salary.
7. Package
Standard export package, water-proof package, covered with plastic film
| No. | Name | Unit | Qty |
| 1 | Manual decoiler | set | 1 |
| 2 | Main forming machine | set | 1 |
| 3 | PLC control system | set | 1 |
| 4 | Hydraulic pump station | set | 1 |
| 5 | Post cut and press | set | 1 |
| 6 | Electric motor | set | 1 |
| 7 | Output table | set | 1 |
This is one of our main products, hotselling used in Nigeria, and has been certificated by SGS, CE.
Hope further contact with you.
Tel:+86 18231737651
