Factory Price Glazed Tile Roll Forming Machine Roof Sheet Cold Roll Forming Machine
  • Factory Price Glazed Tile Roll Forming Machine Roof Sheet Cold Roll Forming MachineFactory Price Glazed Tile Roll Forming Machine Roof Sheet Cold Roll Forming Machine
  • Factory Price Glazed Tile Roll Forming Machine Roof Sheet Cold Roll Forming MachineFactory Price Glazed Tile Roll Forming Machine Roof Sheet Cold Roll Forming Machine
  • Factory Price Glazed Tile Roll Forming Machine Roof Sheet Cold Roll Forming MachineFactory Price Glazed Tile Roll Forming Machine Roof Sheet Cold Roll Forming Machine
  • Factory Price Glazed Tile Roll Forming Machine Roof Sheet Cold Roll Forming MachineFactory Price Glazed Tile Roll Forming Machine Roof Sheet Cold Roll Forming Machine

Factory Price Glazed Tile Roll Forming Machine Roof Sheet Cold Roll Forming Machine

Factory Price Glazed Tile Roll Forming Machine Roof Sheet Cold Roll Forming MachineThe archaistic tile sheet is rolled and pressed by modular glazed roll forming machine. it enjoys good appearance,primitive simiplicity and elegance,unique style,noblest grade,and etc. It is widely used in garden styl......

Send Inquiry

Product Description

Factory Price Glazed Tile Roll Forming Machine Roof Sheet Cold Roll Forming Machine
The archaistic tile sheet is rolled and pressed by modular glazed roll forming machine. it enjoys good appearance,primitive simiplicity and elegance,unique style,noblest grade,and etc. It is widely used in garden style factories,scenic resorts,pavilions,hotels, villas,exhibition halls,country clubs,and so on for outdoor decorations.

Factory Price Glazed Tile Roll Forming Machine Roof Sheet Cold Roll Forming Machine

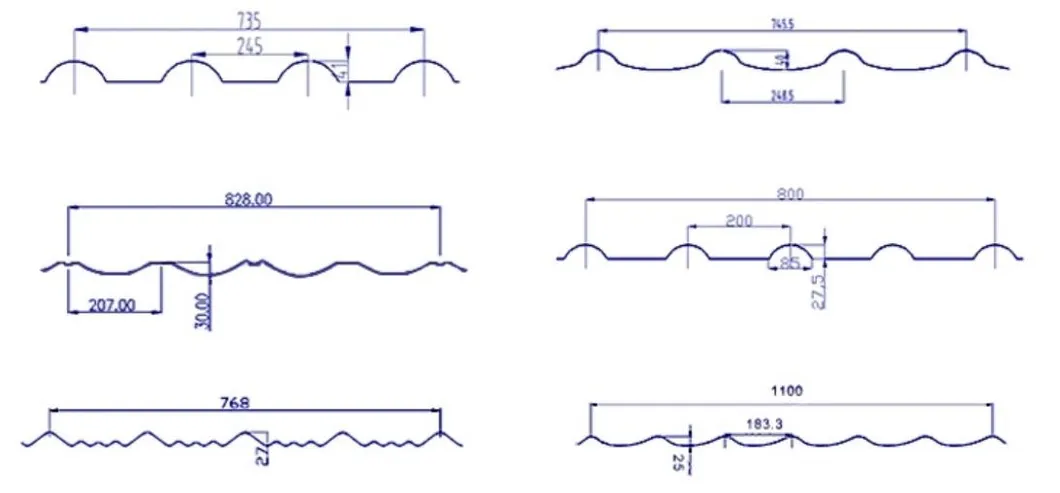

Regular Profile drawing
Factory Price Glazed Tile Roll Forming Machine Roof Sheet Cold Roll Forming Machine


Working flow:

Factory Price Glazed Tile Roll Forming Machine Roof Sheet Cold Roll Forming Machine

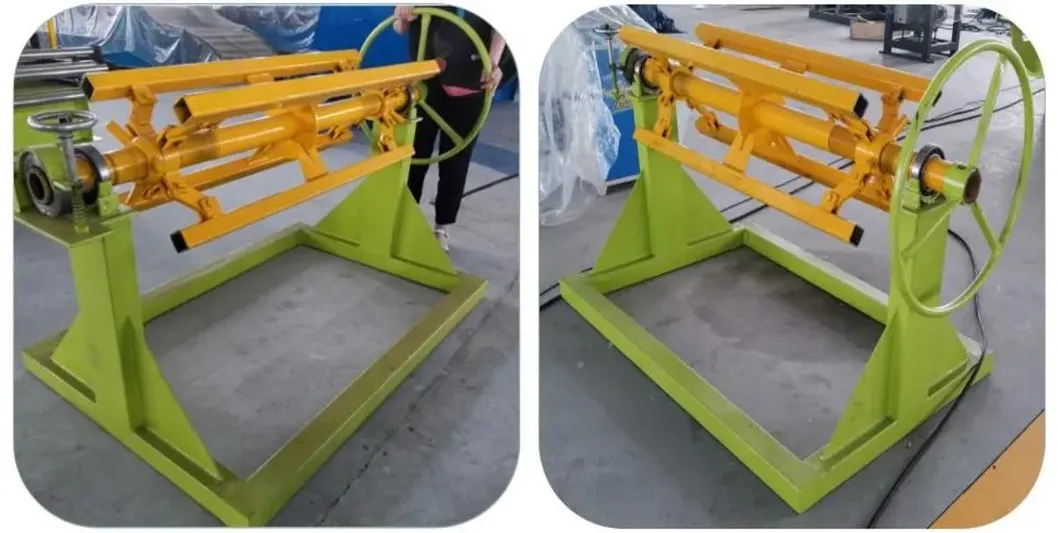

1.decoiler(regular 5T manual decoiler, also can equip with hydraulic decoiler)

inner diameter:450mm to 550mm
   outer diameter:1500mm
   width:1250mm max

  Factory Price Glazed Tile Roll Forming Machine Roof Sheet Cold Roll Forming Machine

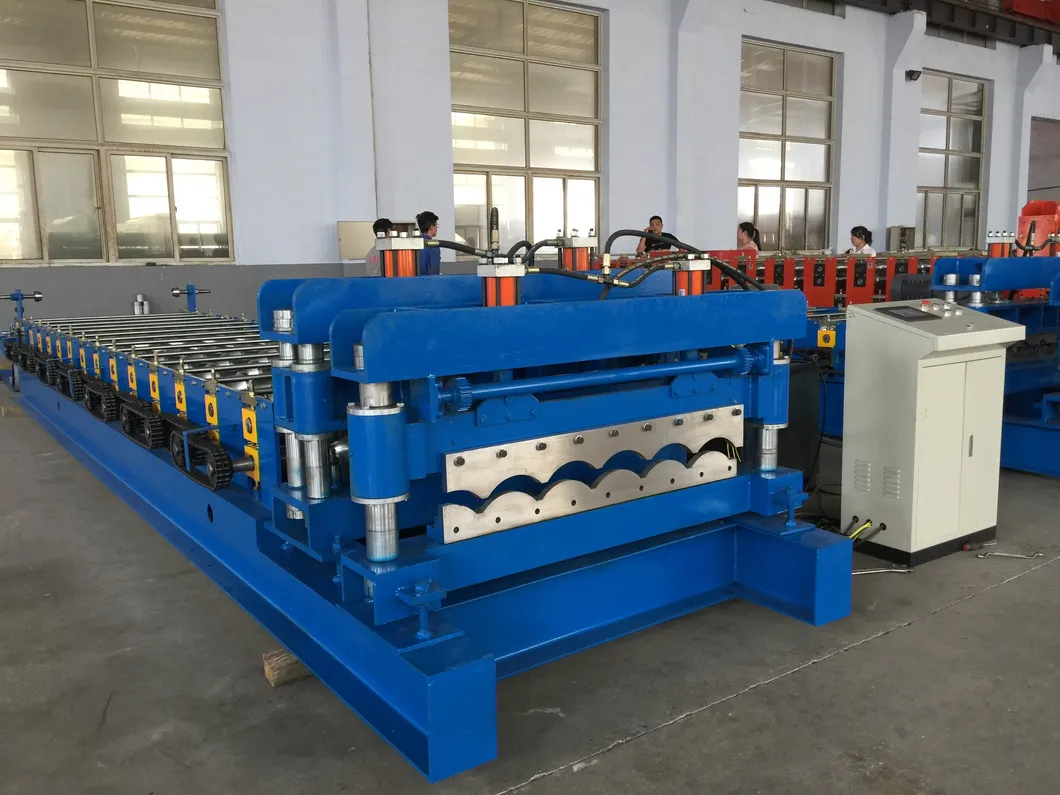

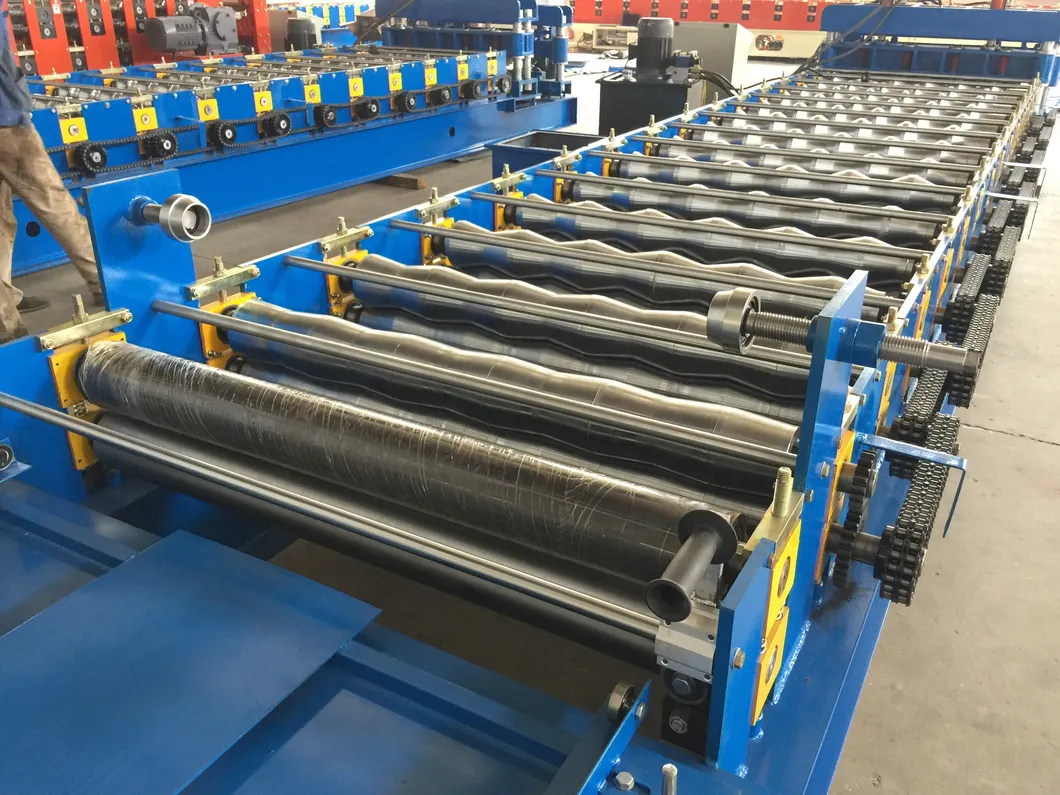

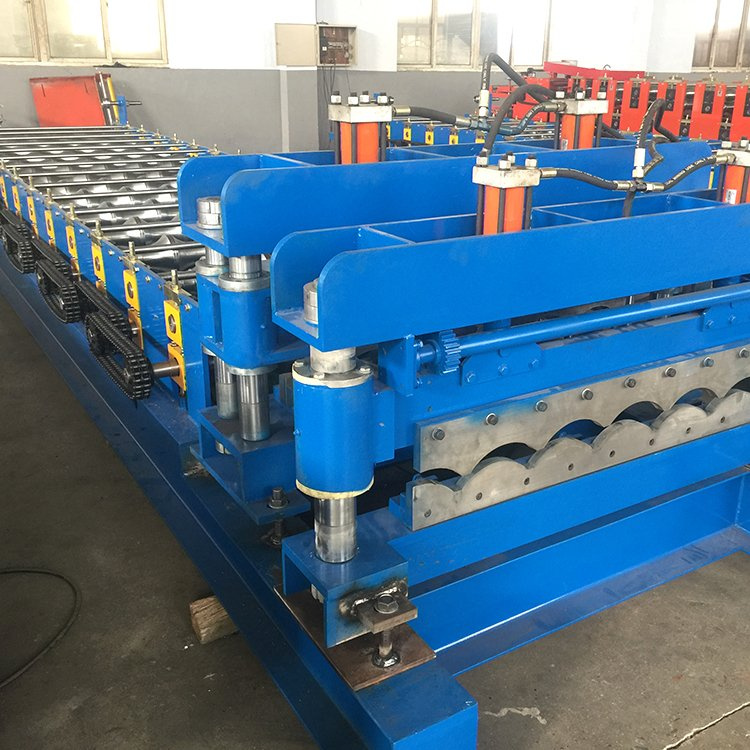

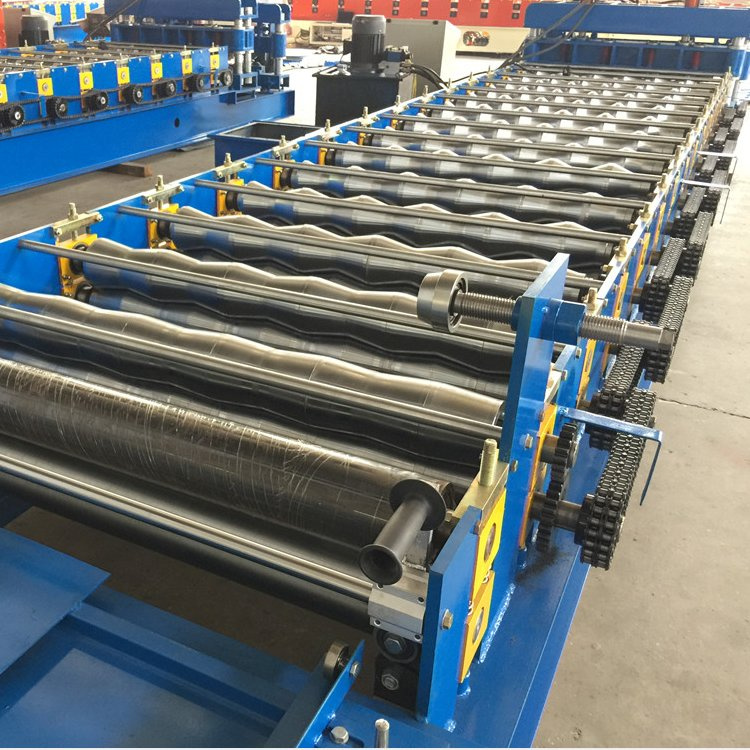

2. Main roll forming machine

feeding device: set up turnable rubber covered the roller on the bottom of the device;
                          the width can adjust through the hand wheels.

basic frame: 350H steel welded
machine structure: middle plate welded

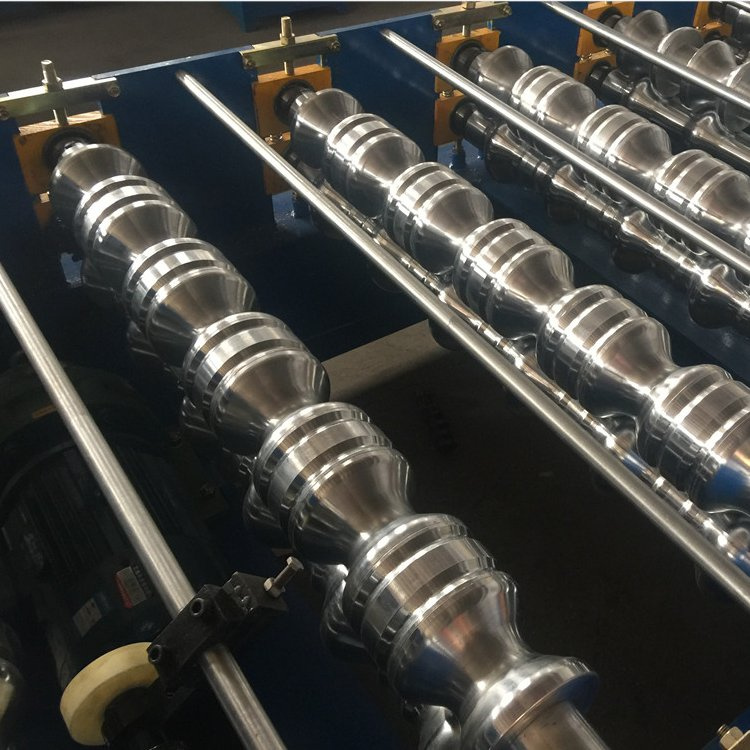

roller station: 22 stations
roller material: 45# steel with quenched treatment and hard chroming
shaft diameter: 80mm,solid
shaft material: 45# steel with tempering treatment
motor power: 5.5 kw
speed: 0-20m/min

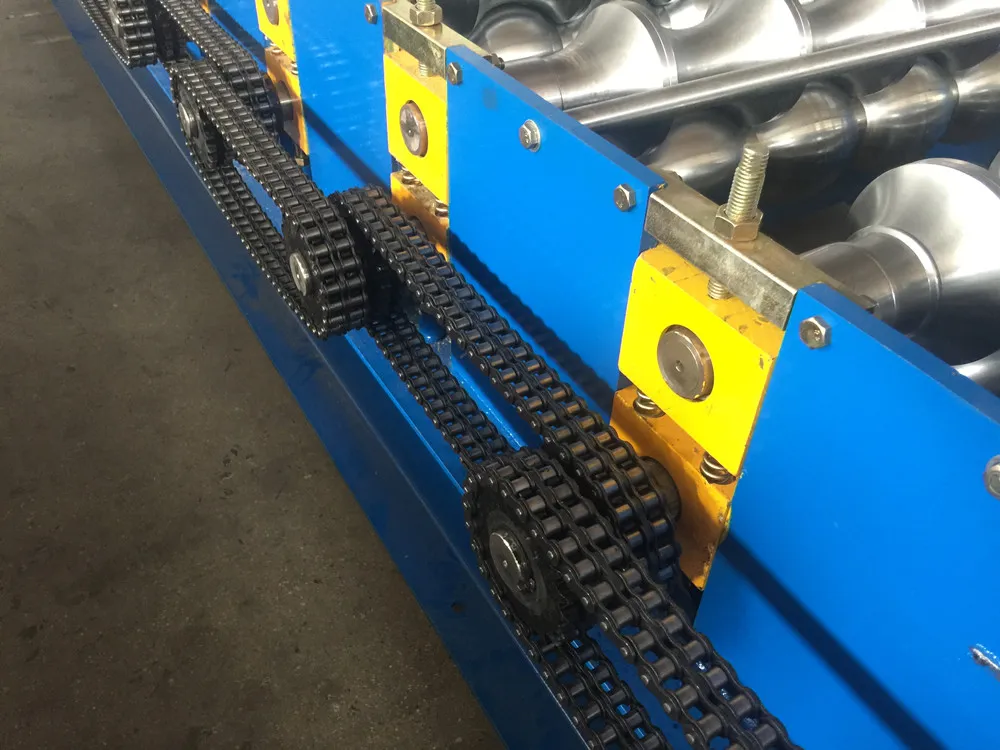

transmission: by double chains
voltage: 380V,50HZ,3Phase

Factory Price Glazed Tile Roll Forming Machine Roof Sheet Cold Roll Forming MachineFactory Price Glazed Tile Roll Forming Machine Roof Sheet Cold Roll Forming Machine

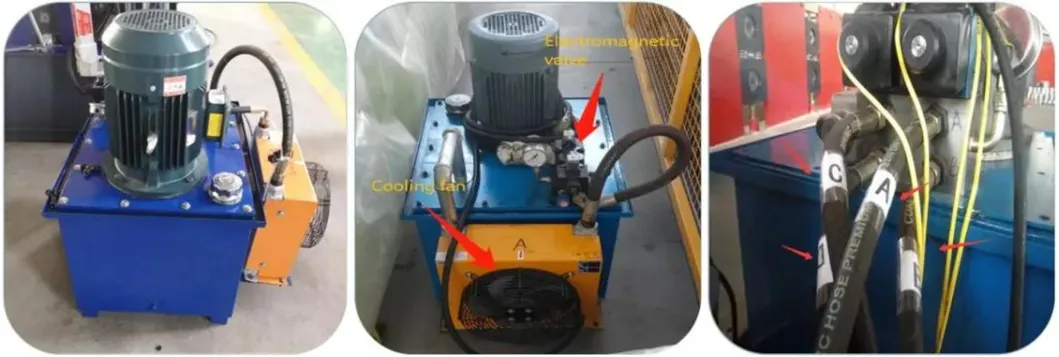

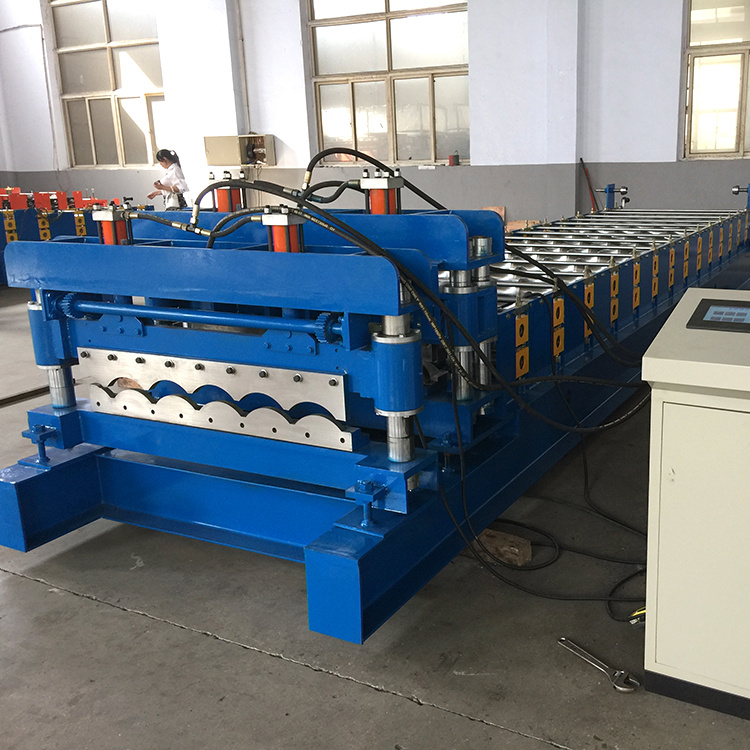

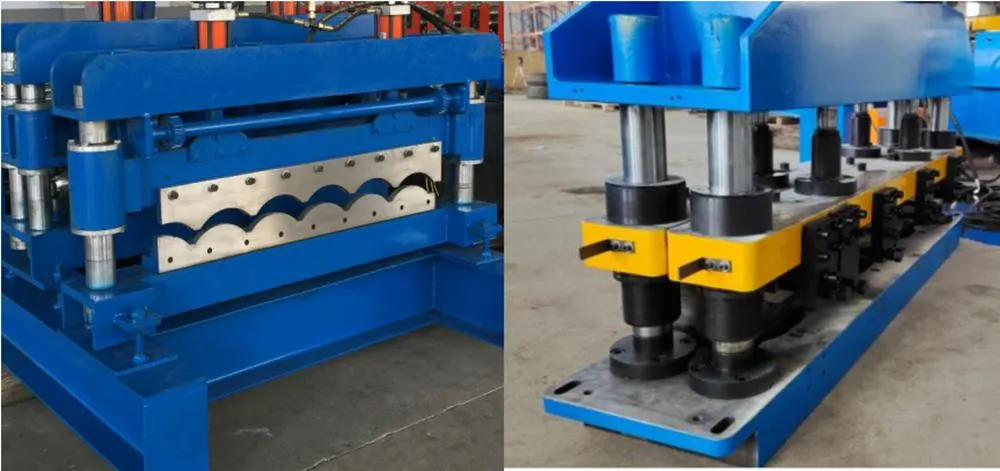

3.Cutting system

blade material: Cr12,with quenched treatment

  motor power: 4 kw
  cutting tolerance: +/-1 mm
  cooling system: With fan cooling
  cutting type: Hydraulic cutting
  feature: Low noise and high performance

Factory Price Glazed Tile Roll Forming Machine Roof Sheet Cold Roll Forming MachineFactory Price Glazed Tile Roll Forming Machine Roof Sheet Cold Roll Forming Machine

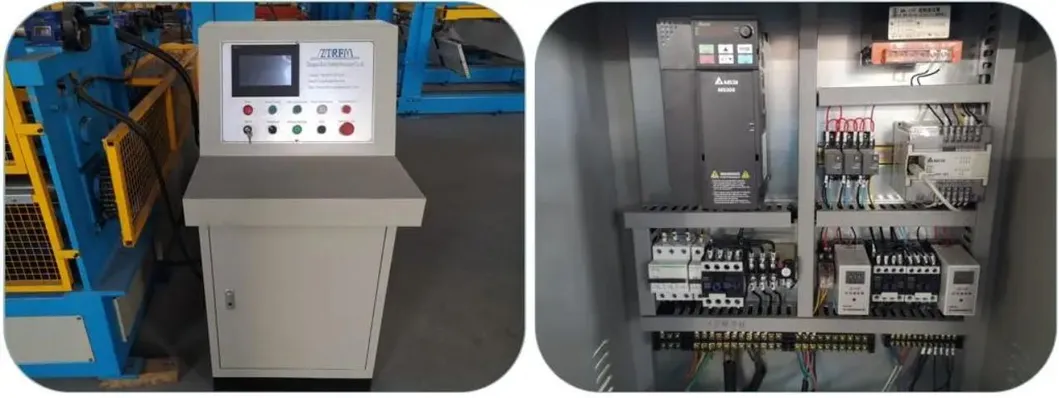

4.PLC control system


PLC brand: Delta from Taiwan
Frequency converter brand: Delta from Taiwan
Encoder: Omron
Function: Automatic control the length,quantity and batch

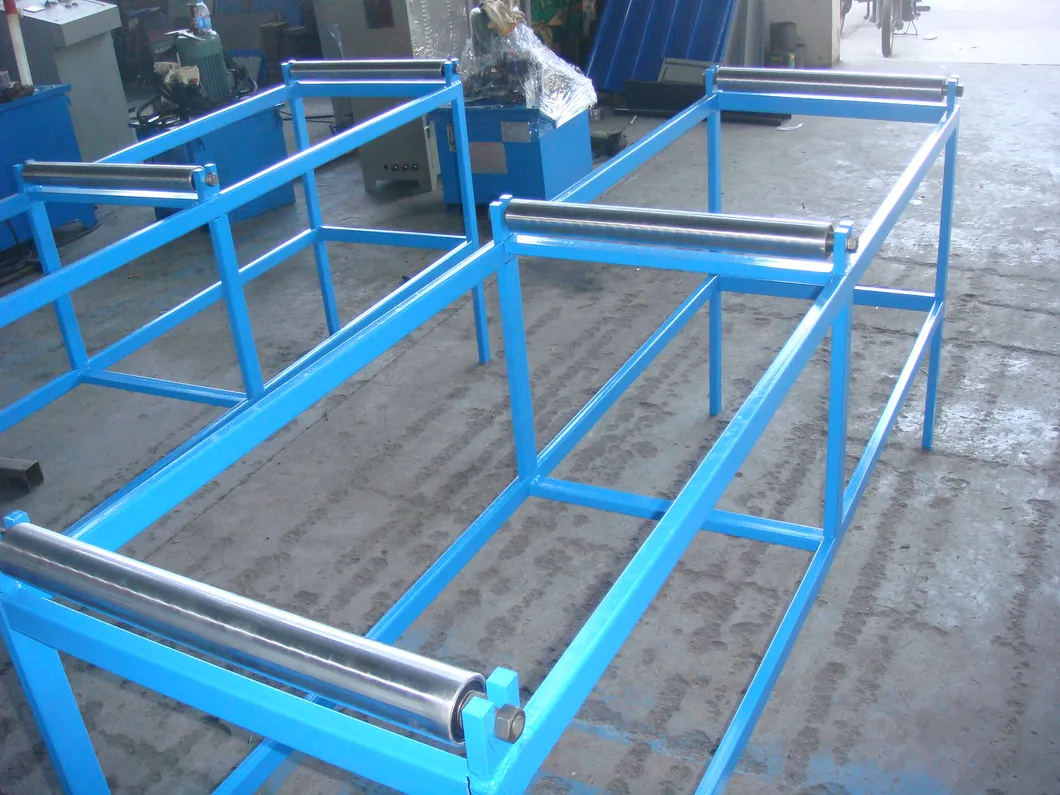

Factory Price Glazed Tile Roll Forming Machine Roof Sheet Cold Roll Forming Machine5.Runout table (regular 3m length )

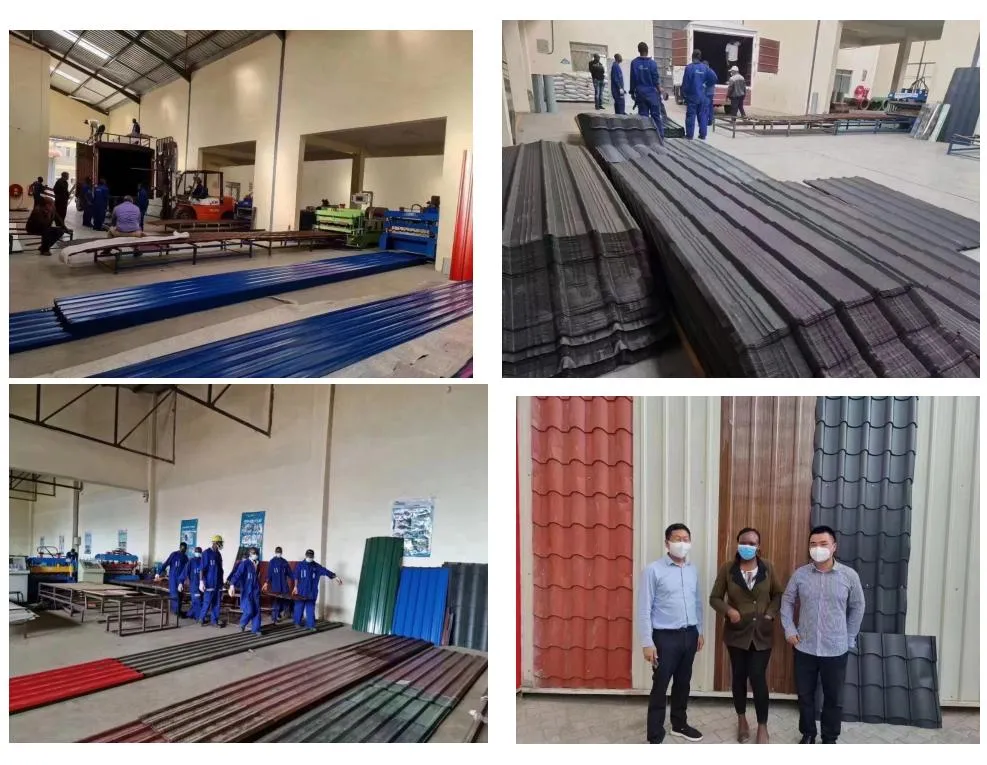

Factory Price Glazed Tile Roll Forming Machine Roof Sheet Cold Roll Forming MachineFeedback from Customers
Factory Price Glazed Tile Roll Forming Machine Roof Sheet Cold Roll Forming Machine
Factory Price Glazed Tile Roll Forming Machine Roof Sheet Cold Roll Forming Machine
FAQ:
Q1. Can you manufacture the roll forming machine according to my profile drawing or picture of finished product ?
A: Yes. Our rich experienced technical team can draft the accurate profile drawing, provide the most suitable technical solution for your required roll forming machine.
Q2. How can we be assured that you will deliver us quality machine with spare parts ?
A: 1. Customers can come to our factory, or send the technical people to our factory for checking the quality.
     2. We can send the technicians to the buyer's factory for the installation of the machine.
Q3. What's your payment terms and delivery time?
A: 30% as the deposit by T/T in advance, 70% as the balance payment by T/T after your inspect the machine well and before delivery. Of course your payment terms are acceptable. After we get down payment, we will arrange production. About 45 workdays for delivery.
Q4. Do you have after-sales support?
A: Yes, we are happy to provide advice and we also have skilled technicians available across the world.
Q5. Do you sell only standard machines?
A: No, most of our machines are customized according to customers specifications, also adopt top brand components.
Q6. What will you do if the machine is broken?
A: We provide 1 year free warranty and free technical support for the whole life of any machine. If the broken parts can't repair, we can send the new parts replace the broken parts freely, but you need pay the express cost by yourself. If it is beyond the warranty period, we can negotiate to solve the problem, and we supply the technical support for the whole life of the roll forming machine.
Q7. Can you be responsible for transport?
A: Yes, please tell me the destination port or address. we have rich experience in transporting.
Q8. How to visit your company?
A:1) Fly to Beijing airport, By high speed train From Beijing Nan to Cangzhou Xi (1 hour).
    2)Fly to Tianjin airport, By high speed train From Tianjin to Cangzhou Xi (0.5 hour).
    3) Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.
