Forming Speed 0- 15m /Min Box Profile Roll Forming Machine with 9 Stations

Product Description

Shelf Panel Box Roll Forming Machine without punching

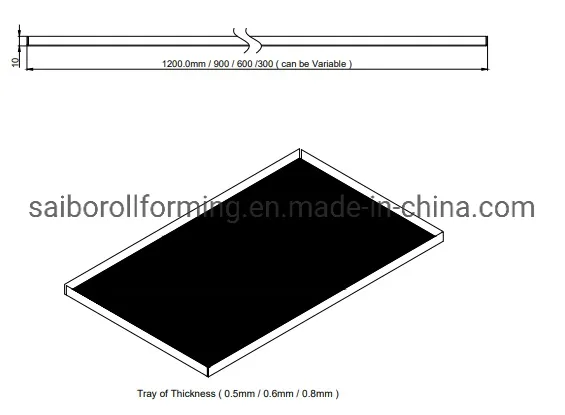

1. Profile drawing:

Machine adopts one punching station for square hole, the square hole size is 600X 600mm, 450X450mm, 300X300mm.

No	Specification of the material
1	Suitable Material	GI steel
2	Width of the raw material	1250mm max.
3	Thickness	0.45-1.2mm

Machine Detailed Parameters:

1	Machine structure	Wire-electrode cutting
2	Change size	Change size by hand wheel
3	Main power	About 25KW
4	Roller stations	About 9 stations
5	Forming speed	0-15m/min
6	Drive system	By chain
7	Diameter of shaft	¢65mm solid shaft
8	Voltage	415V 50Hz 3phases (Customized)

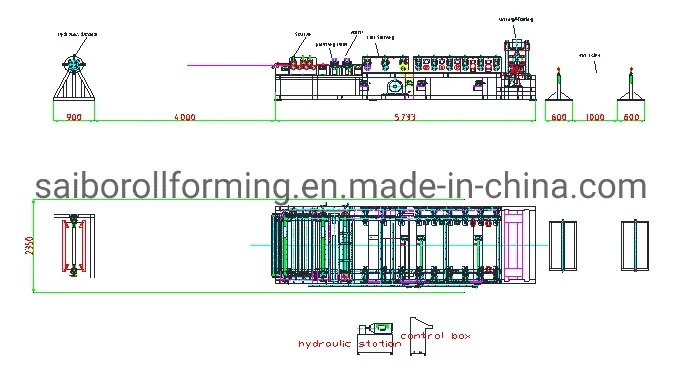

The Chart of Process Flow
De-coiler→ Feeding system→ Flatten system→ Hydraulic Notch →Roll forming→ Cutting and folding→ finish supporter.

Specification of Components

No		Technical Specification & Remark
1	De-coiler 5T hydraulic de-coiler	Width of feeding: 1250mm Capability: 5 Ton Inter diameter: 470-520mm Maximal out diameter: 1500mm Working speed: 20m/min adjustable Main motor power: 5.5KW AC motor Hydraulic power: 4kw Speed controlled by frequency converter Color: blue Quantity: 1

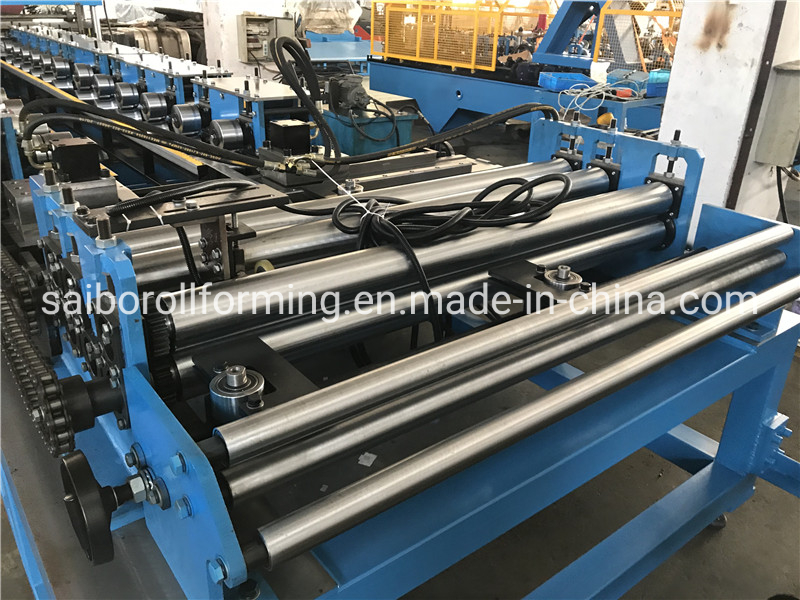

2	Leveling part	Flattener roller: upper is 2 rollers, down is 3 stations(total is 5 rollers) Flattener roller material: SAE 1045 thermal treatment hardness 48-52 HRC. Diameter of flattener shaft: ¢65mm, material is SAE 1045, hardening and tempering

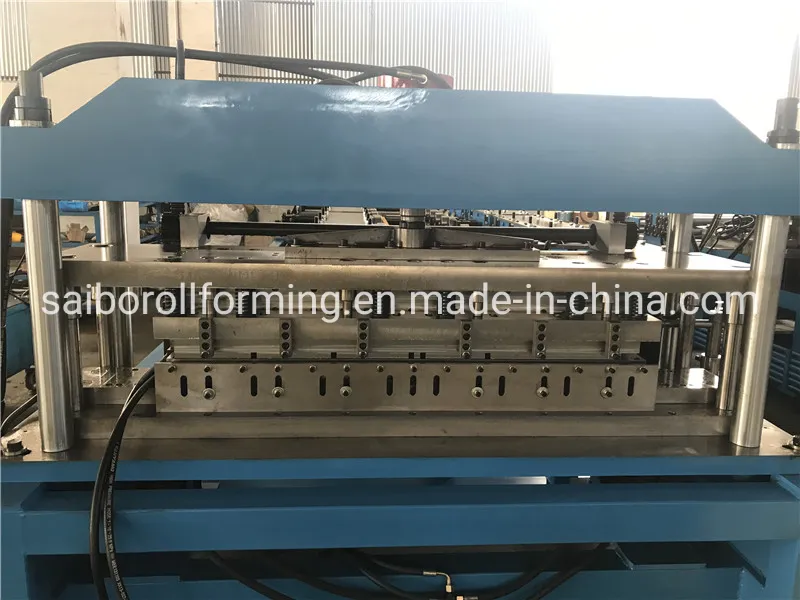

3	Notch	This hydraulic punching station is used for notch Hydraulic power: 7.5kw

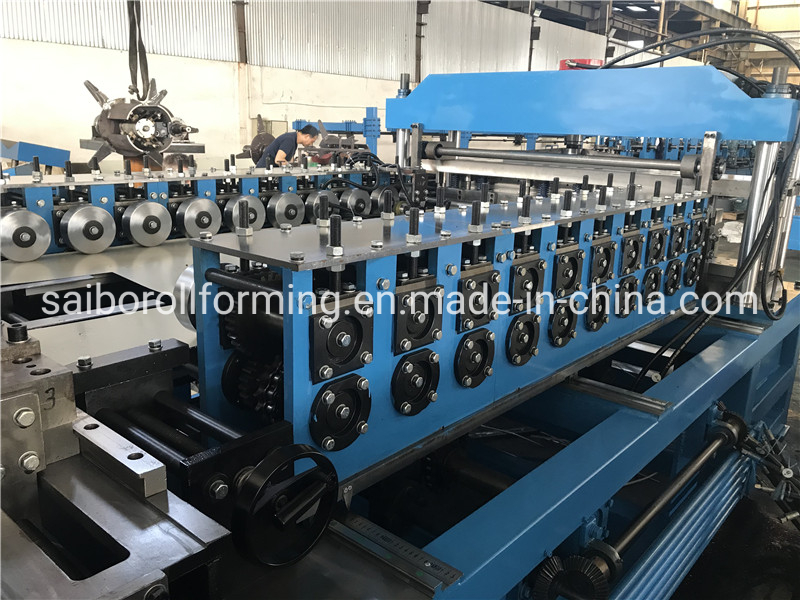

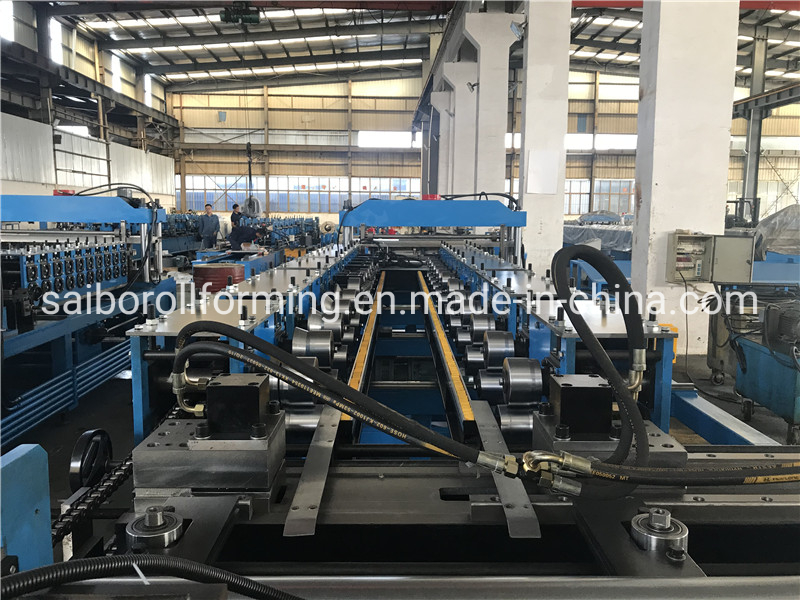

4	Main Roll Forming Machine	Roll station: about 9 stations Width adjustment: one side is fixed, the other side can adjusted by hand wheel Roller material: 45# forge steel, chrome plated surface Shaft diameter: ¢65mm material: SAE1045 Drive by chain Main motor: 7.5KW
