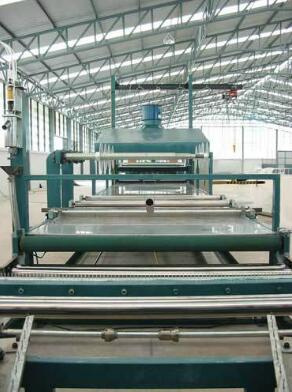

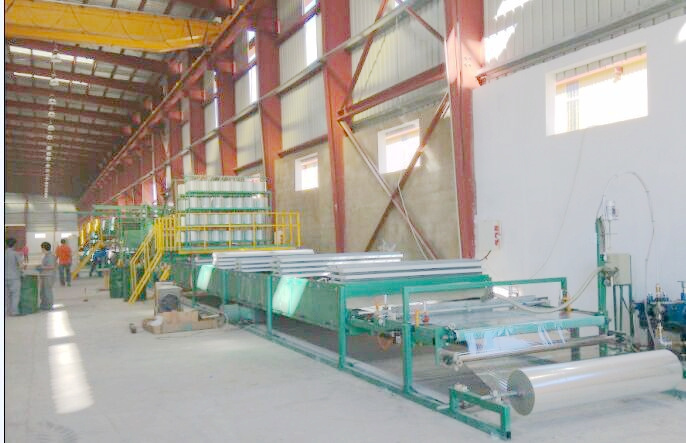

FRP Cooling Tower Panel Pultrusion Equipment

Product Description

Specifications
1.rib type roll forming machine
2.easy to operation
3.PLC control
4.full automatic
5.CE and ISO
frp roofing sheets making machine
1. rib type roll forming machine technical process

Decoiling-active feeding (put the coil strip into the first feeding roller)-leveling -roll forming -computer control system-hydraulic cutting-product to stand

2. rib type roll forming machine technical parameters
1.feeding platform: frame strructure steel plate welded
2.overall size: 7000mm*1300mm*1200mm
3.total weight:4.5T
4.main frame: 300mm H-Beam
5.backboard thickness: 16mm
6.roll station:13-16
7.roller diameter:70mm
8.roller material:45# steel
9.cutter material: Cr12,quenched
10.Cr-Plating size:0.05mm
11.control system:PLC control
12.material thickness:0.3mm-0.8mm
13. Scale Accuracy:10m±2mm

Electrical system

Screen display

5.7 inches TaiDa touch screen

Main computer control cabinet

It adopts industrial computer to control. The target piece's length is adjustable and digit of it can be adjusted. Computed mode has two modes: automatic and manual one. The system is easy to operate and use.
Processing precision : within 1.00mm
It contains liquid crystal screen, programmer, transformer for the electronic machines and kits of every part.
Transducer brand isEURA
The seller should provide Chinese and English language screen.

Hydraulic shearing

Material of blade	Cr12,heat treatment 60-62°C
Shearing system	It is controlled by gear wheel oil pump. After filling the hydraulic oil into the hydraulic oil tank, the pumps drive the cutter machine to begin the cutting job. The system includes a set of hydraulic tank, a set of hydraulic oil pump, two hydraulic pipes. And two sets of electromagnetism valves. Power of the oil pump: 4kw Hydraulic oil :40#
