Metal Rolls Forming Machine Input Sheet 1250 mm
  • Metal Rolls Forming Machine Input Sheet 1250 mmMetal Rolls Forming Machine Input Sheet 1250 mm
  • Metal Rolls Forming Machine Input Sheet 1250 mmMetal Rolls Forming Machine Input Sheet 1250 mm
  • Metal Rolls Forming Machine Input Sheet 1250 mmMetal Rolls Forming Machine Input Sheet 1250 mm
  • Metal Rolls Forming Machine Input Sheet 1250 mmMetal Rolls Forming Machine Input Sheet 1250 mm

Metal Rolls Forming Machine Input Sheet 1250 mm

metal rolls forming machine input sheet 1250 mmProduct Description : metal rolls forming machine input sheet 1250 mm has different types which used together with corrugated sheet and IBR sheet, or glazed tile sheet. The ridge cap sheet is widely used in many kinds of industrial factory, civilian bui......

Send Inquiry

Product Description

metal rolls forming machine input sheet 1250 mm
Product Description :
 metal rolls forming machine input sheet 1250 mm has different types which used together with corrugated sheet and IBR sheet, or glazed tile sheet. The ridge cap sheet is widely used in many kinds of industrial factory, civilian buildings, and Roof board for attached part product It has advantage of pretty appearance, durable using and so on.
Metal Rolls Forming Machine Input Sheet 1250 mm
No.metal rolls forming machine input sheet 1250 mm
1Suitable to processColor alu-zinc steel coil
2Roller12 Rows
3Dimensions6.2*1.65*1.7m
4Motor Power4Kw
5Pump Station Motor4Kw.Lichao Brand
6Thickness of the plate0.3-0.8mm
7Productivity10-15m/min
8Material of the cutting bladeCr12,Quenched treatment 58ºC-60ºC
9Diameter of the rollerΦ70mm
10WeightAbout 5800kgs
11Main structure of the machine300H beams
12Processing precisionWithin 1.0mm
13Side panel of machine16mm
14Chain Wheel and Cycle Chain1 Inch
15Voltage380V 50Hz 3phases or as customer's need
16Control systemPLC control (Delta)
17Frequency systemDelta
18Drive modeMotor driver
19Touch screenDelta
20Rolling materials45# forging steel with chromium plate
21Length Tolerance±2mm
metal rolls forming machine input sheet 1250 mm for sale
1.The system is easy to operate and use. PLC: Delta(Can customize as customer require)
2.The surface of the final product is very smooth and beautiful without any scratch on the surface.
Metal Rolls Forming Machine Input Sheet 1250 mm
Metal Rolls Forming Machine Input Sheet 1250 mm
Metal Rolls Forming Machine Input Sheet 1250 mm
Metal Rolls Forming Machine Input Sheet 1250 mm
Metal Rolls Forming Machine Input Sheet 1250 mm
Metal Rolls Forming Machine Input Sheet 1250 mm
Metal Rolls Forming Machine Input Sheet 1250 mm
metal rolls forming machine input sheet 1250 mm after sales services :
1. Warranty :One year,and we will provide technical support for whole life of the equipment.
2. Delivery time: Within 25 days after deposit receipt your payment
3. Guarantee period: 24months free service/ pay service all the machine life
4. Installation and training If buyers visit our factory and check the machine, we will teach you how to install and use the machine and also train your workers/technician face to face.
Metal Rolls Forming Machine Input Sheet 1250 mm

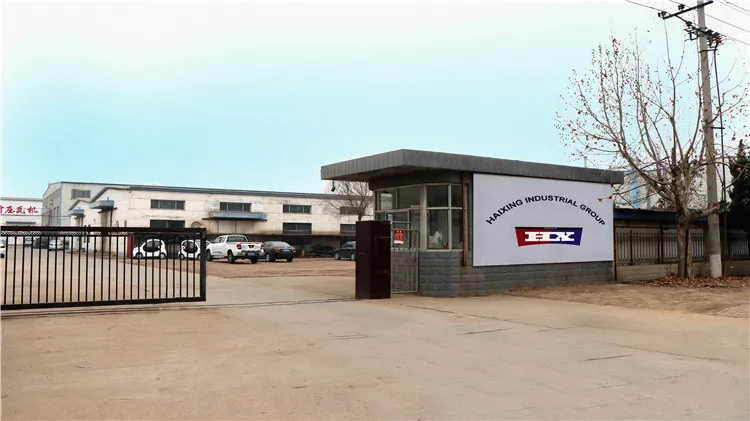

Company infomation
