Standing Seam Straight/Tapered Roof Tile Roll Forming Machine ( YX65 -400/425)
Standing Seam Straight/Tapered Roof Tile Roll Forming Machine (YX65-400/425):Main Accessories:A. Main roof forming machine;B. 5 tons manual decoiler;C. Hydraulic system;D. PLC computer controlling system with touch screen;E. Hydraulic forming cutter;F. Protective Cover;G. Manual operation. Main Tech......
Send Inquiry
Product Description
Standing Seam Straight/Tapered Roof Tile Roll Forming Machine (YX65-400/425):
Main Accessories:
A. Main roof forming machine;
B. 5 tons manual decoiler;
C. Hydraulic system;
D. PLC computer controlling system with touch screen;
E. Hydraulic forming cutter;
F. Protective Cover;
G. Manual operation.

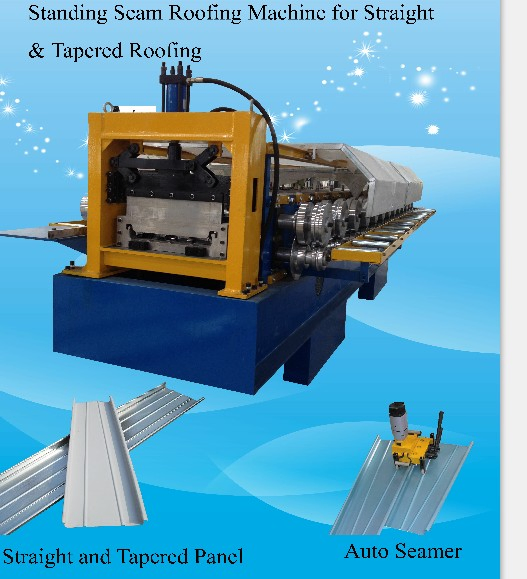

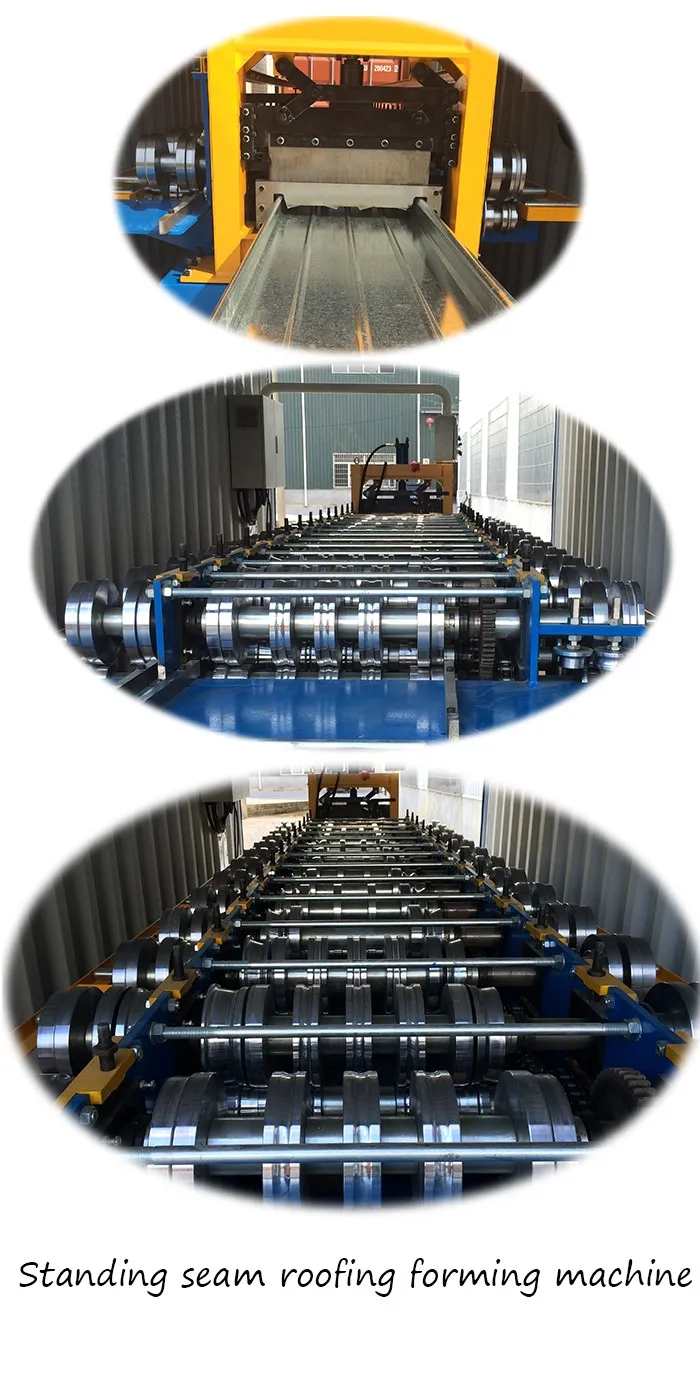

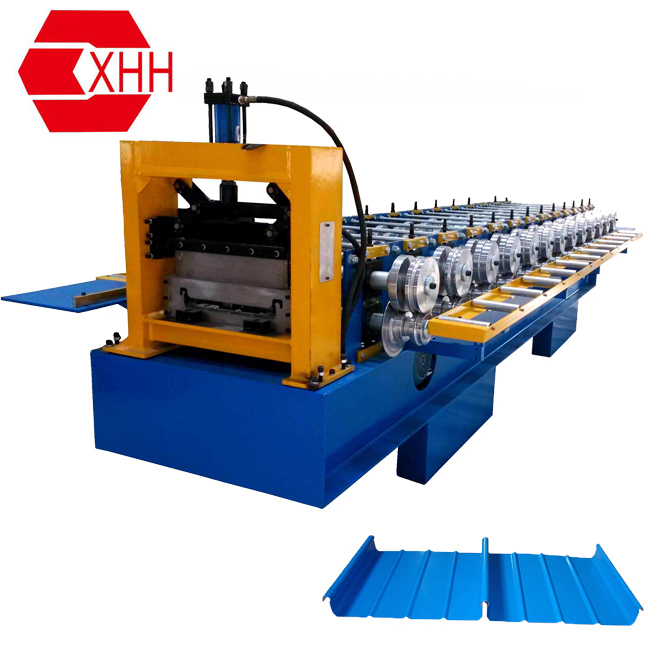

machine show:

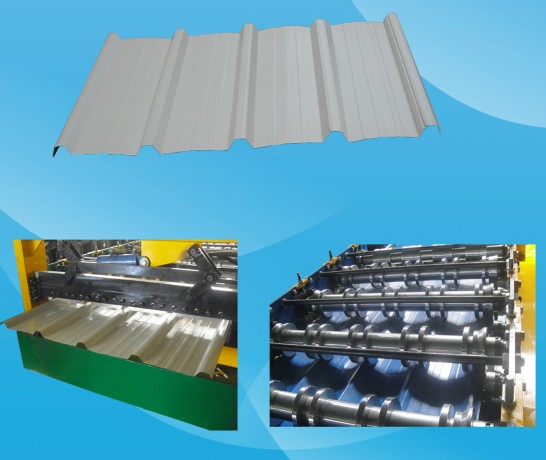

Metal panel details:
Main Accessories:
A. Main roof forming machine;
B. 5 tons manual decoiler;
C. Hydraulic system;
D. PLC computer controlling system with touch screen;
E. Hydraulic forming cutter;
F. Protective Cover;
G. Manual operation.
Main Technic Data:
| 1. | Dimension | 5800*1600*1400mm |
| 2. | Weight | 7000KGS |
| 3. | Motor Power | 5.5KW*2 sets |
| 4. | Hydraulic Power | 2.2KW |
| 5. | Voltage | 380V/50HZ/3PH |
| 6. | Forming Steps | 13 |
| 7. | Forming Speed | 8-14m/min |
| 8. | Effective Width | 300mm,400mm,500mm |
| 9. | Material of Width | 470mm,575mm,680mm |
| 10. | Material of AL-Mg-Mn,Galvanized Sheet Thickness | 0.4-1.0mm |
| 11. | Material of Colored Prepainted Sheet Thickness | 0.5-0.8mm |
| 12. | Material for All Roller | high grade no.45 forged steel,plated hard chrome and polished the rollers |
machine show:
Metal panel details:
