Steel 988type Corrugated Board Production Line

Product Description

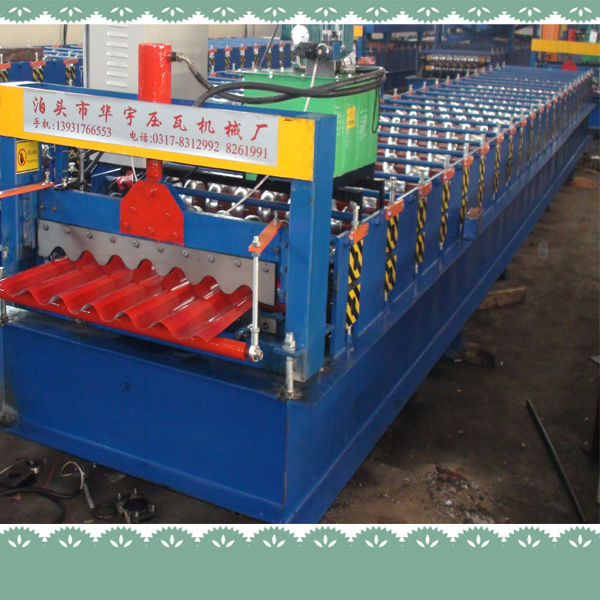

corrugated board color steel roll forming machine

technical parameters:

Material Spec	colored steel sheet; galvanized steel sheet
Thickness of coil sheet	0.3-0.8mm
Main Motor Power	3 kw
Forming Speed	10-12m/min
Hydraulic station power	3kw
Quantity of stand	about 9-13
Hydraulic pressure	10-12mpa
controlling system	PLC
Index error of length	10m+2mm
Appearance sizes	5.8x1.4x1.2 (L x W x H)
Total weight	about 3 tons
Voltage	380V 3phase 60 HZ or at buyer's requirement
Roller material	high grade NO.45 forged steel plated hard chrome on the surface of roller with thickness 0.05mm
Active shaft material	high grade NO.45 carbon wrought steel at Φ 72mm
Cutting blade	Cr12 mould steel with quenched treatment.

Processes: Manual decoiler-Roll forming machine-PLC system-Hydraulic system-Post cut-Stacking

Components of line:

NO	Name	Unit	Qty
1	Manual decoiler	set	1
2	Main machine for roll forming	set	1
3	PLC Control system	set	1
4	Hydraulic system	set	1
5	Post cut	set	1
6	Stacking	set	1

Packaging & Shipping

Company Information

FAQ

1:How to play order:

Inquiry---confirm the profile drawings and price---confirm the PI---arrange the deposit or L/C---then OK

2:How to visit our company:

Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi(1 hour),then we can pick up you.

Fly to Shanghai Airport:By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5hours),then we can pick up you.

If any questions,you can call me mobile phone at any times:0086-15613790178

3:When we exported the machines:
We have beening making and exporting the machines since from the year of 1998.

4:If you want to get more pictures or videos of the machines,I can send them to you by Email or Skype
