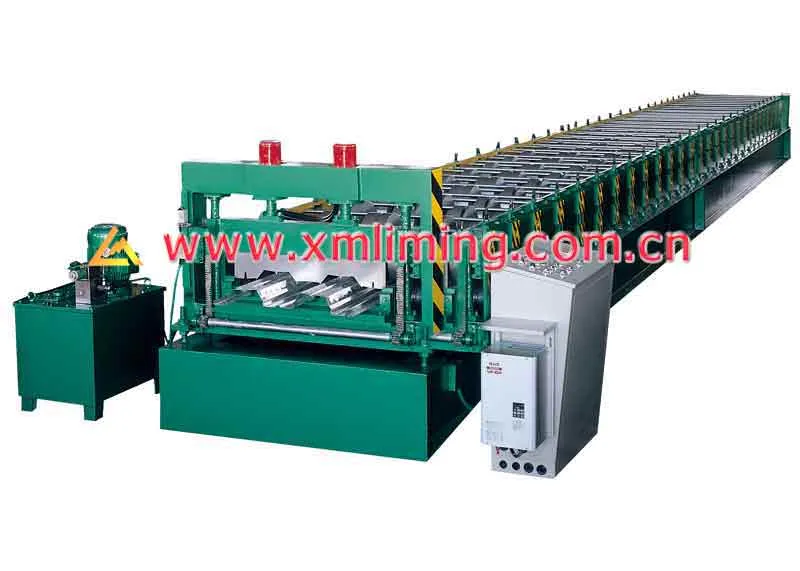

China Xiamen Liming Yx76-344-688 Roll Forming Machine for Decking Profile

Product Description

Machine Composition	Specification
5Ton*1250mm Hydraulic un-coiler	Hydraulic system to expand coil inner hole;Pump motor:3.0KW; Frequency Inverter to regulate turn speed;Motor:5.5KW Coil Inner-diameter=510±30mm. Coil Outer-diameter Max. 1300mm; Taper wedge expanding system Load Capacity: Max. 5 Tons; Coil Width Max. 1250mm; Automatic stopping device with limited switch as assistance to control stop/start rotation Self-contained electric controller, out of control system of the complete line
Hydraulic Pre-cutting Device	Smart cut control, to cut off the end of the final piece of sheet only
Cold Rolling Mills	Feeding section with guide; Wall-plate-frame design Gear/Sprocket driving;29-step to form; Rollers manufactured from 45# Steel, CNC lathes, hard Chrome Coated Shafts Diameter=ф95mm, Precision Machined Main motor =15KWX2, Frequency speed control Max. Liner speed of roll former:Approx. 18-20m/min; Protection mesh cover is not including
Hydraulic Cutting Device	Stop to cut, Post cut, Slug breaker Cutting tool material : Cr12, Heat treatment;mould steel with quenched treatment Hydraulic unit, Pump motor =5.5KW (Hydraulic tank located inside)
PLC Control System	Control the quantity & cutting length automatically; Combined with: PLC, Inverter (Delta), Touch Screen (Weinview), Encoder (Omron), etc Cut-to-length tolerance≤±2 mm Control voltage 24V Portable controller with forward/backward/emergency stop buttons
Product Table	un-powered, one unit, 4 meter long
