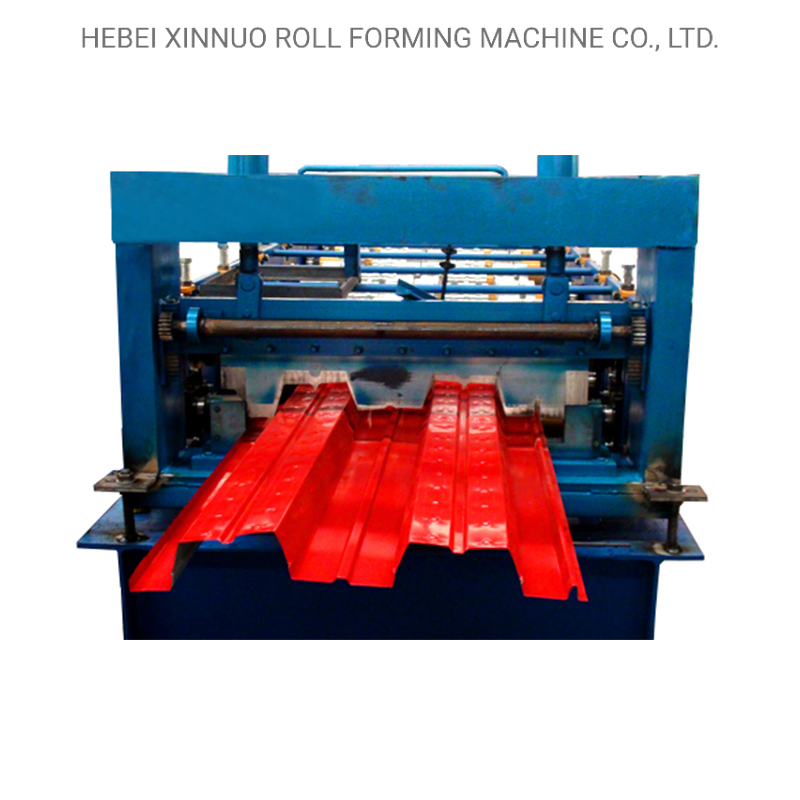

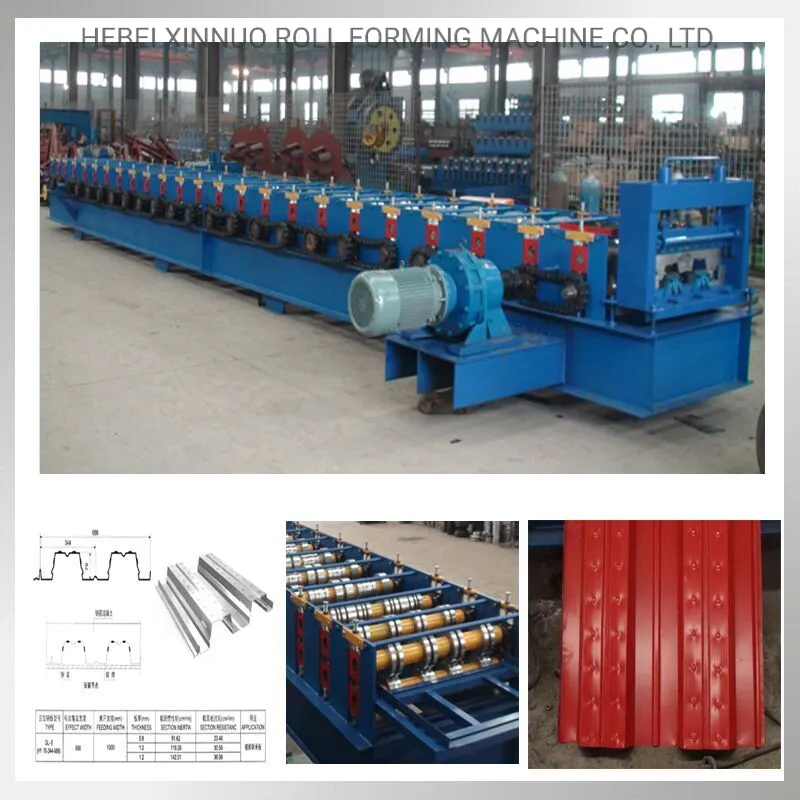

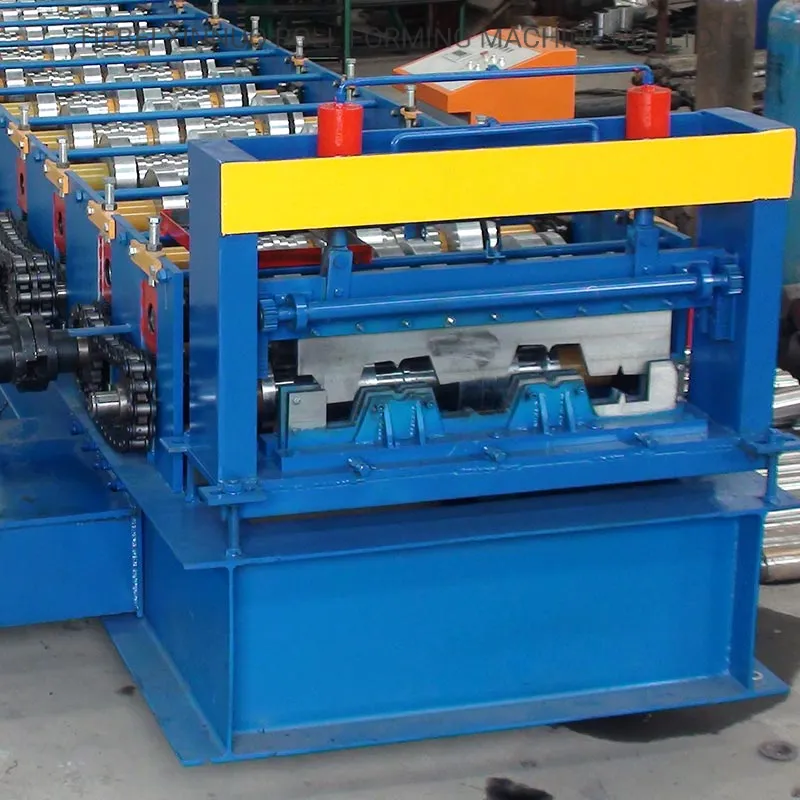

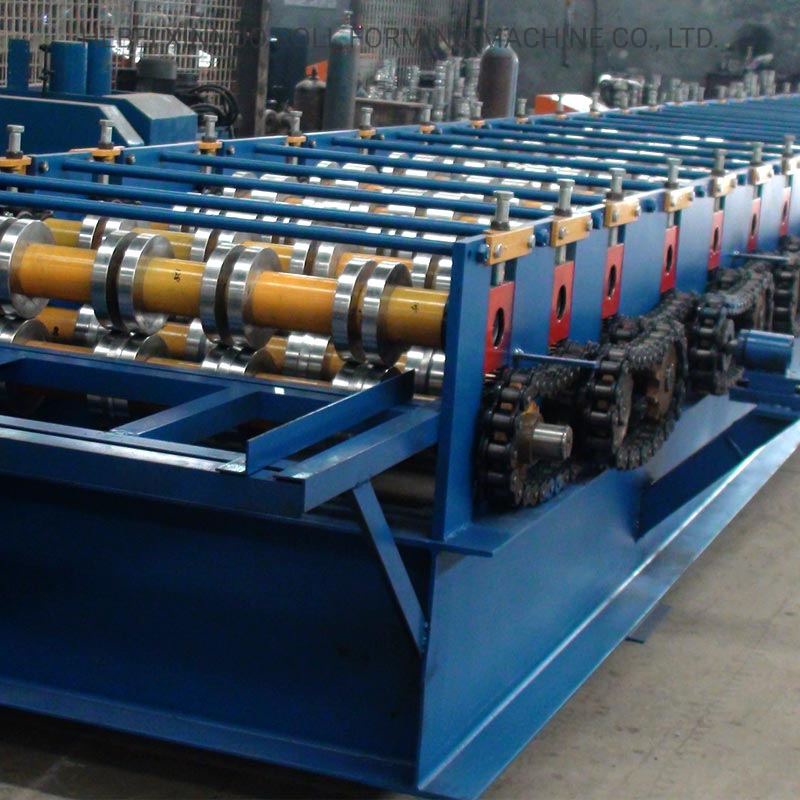

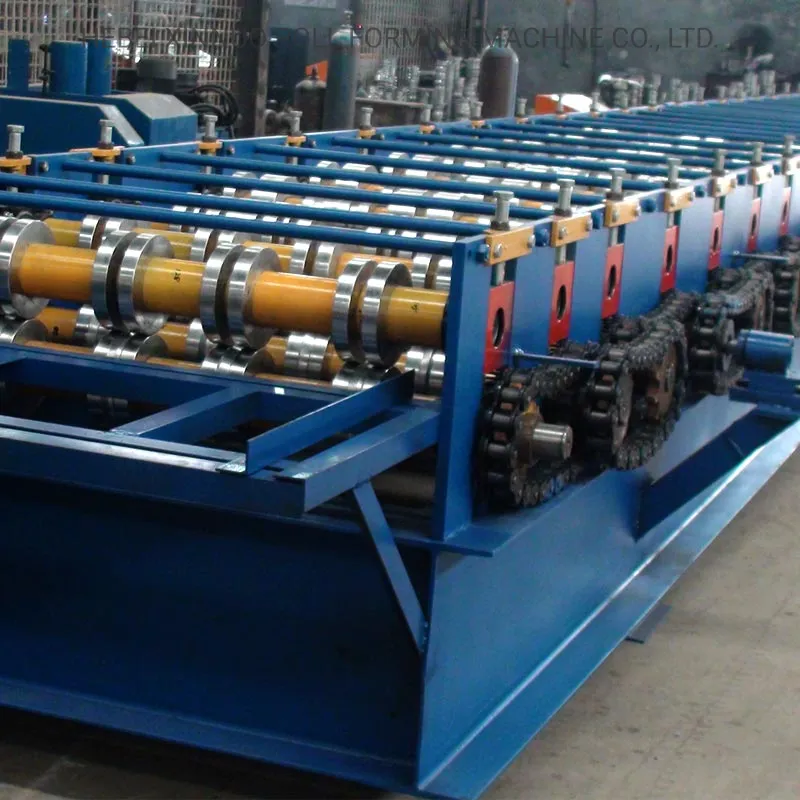

Xinnuo 688 Galvanized Steel Small Scale Floor Deck Tile Making Machine
Xinnuo 688 Galvanized Steel Small Scale Floor Deck Tile Making Machine Detailed Photos Product Description ConfigurationsManual Uncoiler ,Guiding Platform ,Coil Strip Leveler ,Main Machine Of Roll Forming ,Electro-Motor,Cutting Device ,Hydraulic Station ,PLC Control, Supporter Table.Control Sys......
Send Inquiry
Product Description

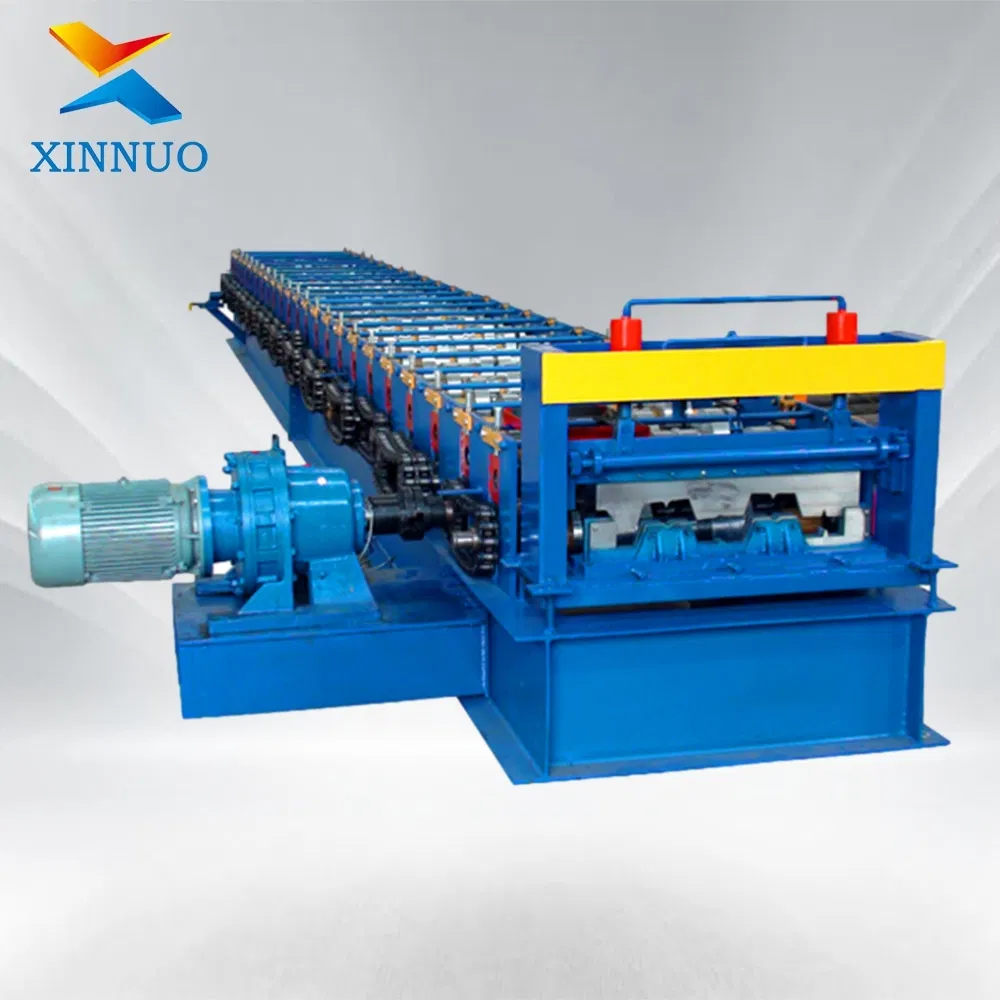

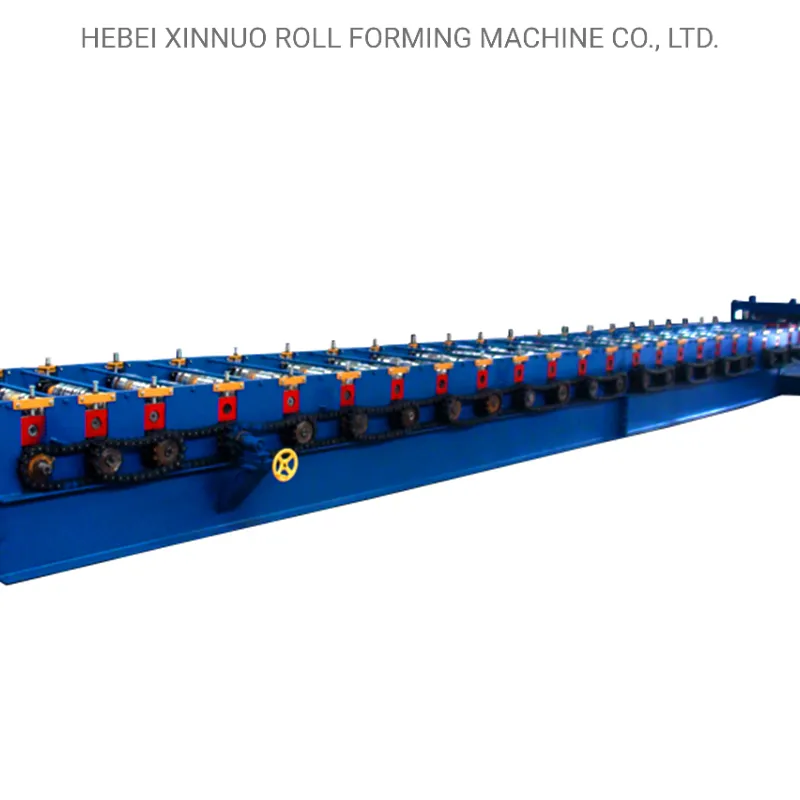

Xinnuo 688 Galvanized Steel Small Scale Floor Deck Tile Making Machine

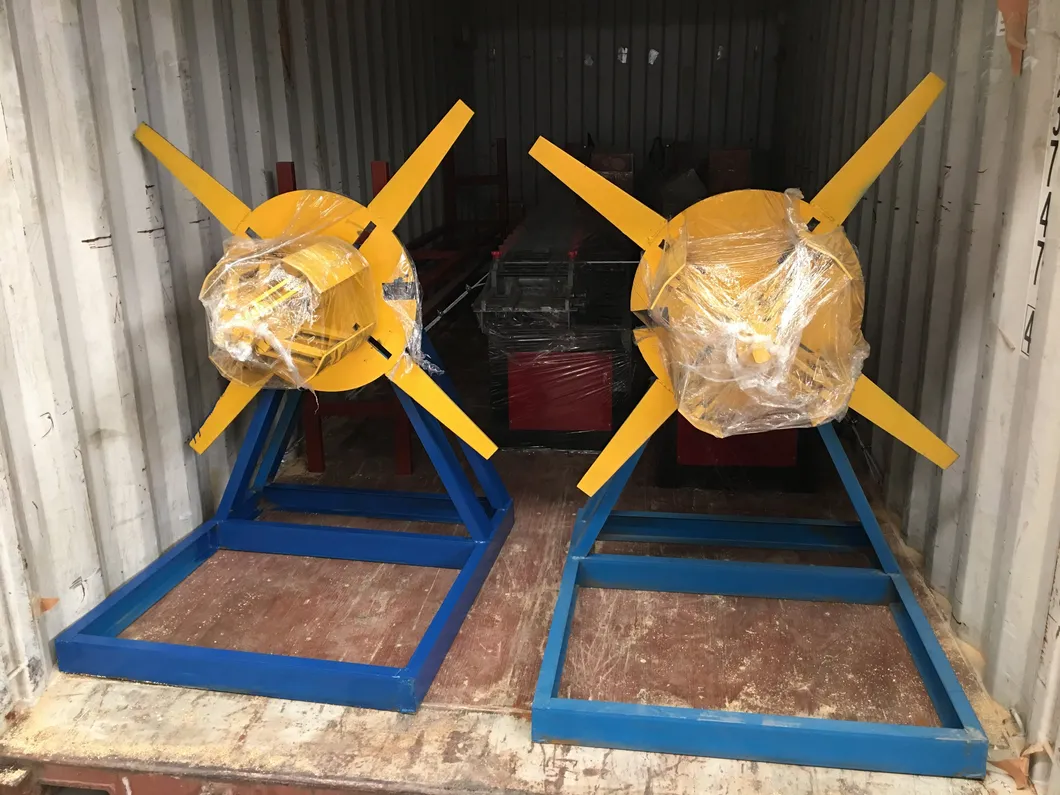

Configurations | Manual Uncoiler ,Guiding Platform ,Coil Strip Leveler ,Main Machine Of Roll Forming ,Electro-Motor,Cutting Device ,Hydraulic Station ,PLC Control, Supporter Table. |
Control System | PLC Panasonic Inverter |
Main Frame | 400mm H-Beam |
Main Power | 18.5 kw |
Pump Power | 7.5 kw |
Power Supply | 380V, 3-Phase,50Hz |
Forming Speed | 8-10m/min |
Roll Station | 24 stands |
Roller Diameter | 95mm |
Hydraulic Pressure | 18-20MPa |

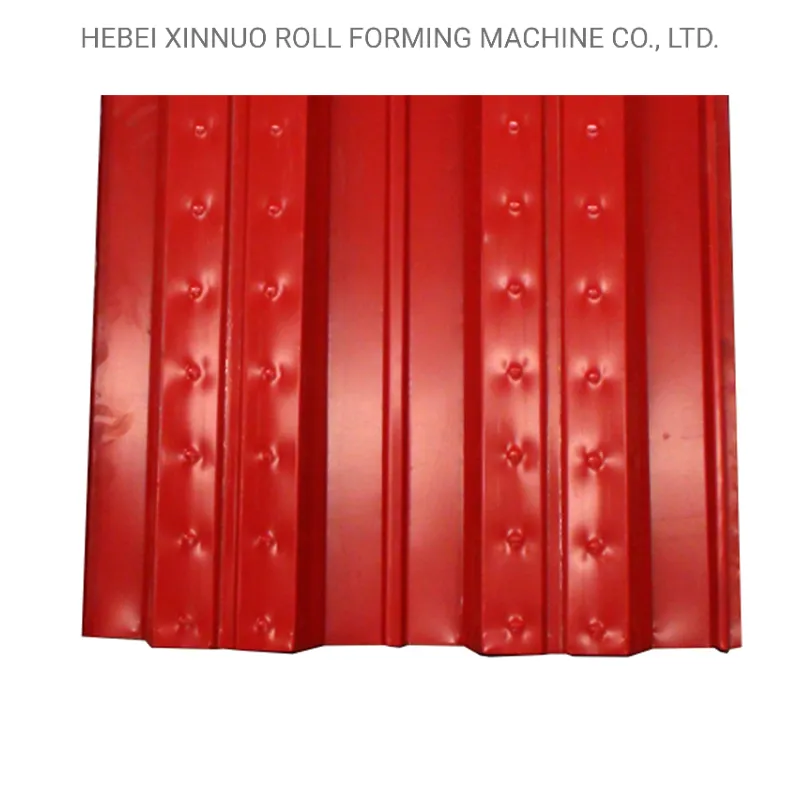

Forming Size | 688mm |
Feeding Thickness | 0.3-0.8mm |
Feeding Width | 1000mm |
Backboard Thickness | 22mm |
Chain Size | 66mm |
Cutter Standard | Cr12 |
Roller Standard | Cr12 |
Cr-Plating Size | 0.05mm |
Overall Size | 15000×1200×1100mm |
Total Weight | 19T |
F. Customer Visit
1:How to play order:
Inquiry---confirm the profile drawings and price---confirm the PI---arrange the deposit or L/C---then OK
2:How to visit our company:
Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi(1 hour),then we can pick up you.
Fly to Shanghai Airport:By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5hours),then we can pick up you.
3:When we exported the machines:
We have beening making and exporting the machines since from the year of 1998.
4:If you want to get more pictures or videos of the machines, feel free contact us.
THANK FOR YOUT TIME !
