Product Description

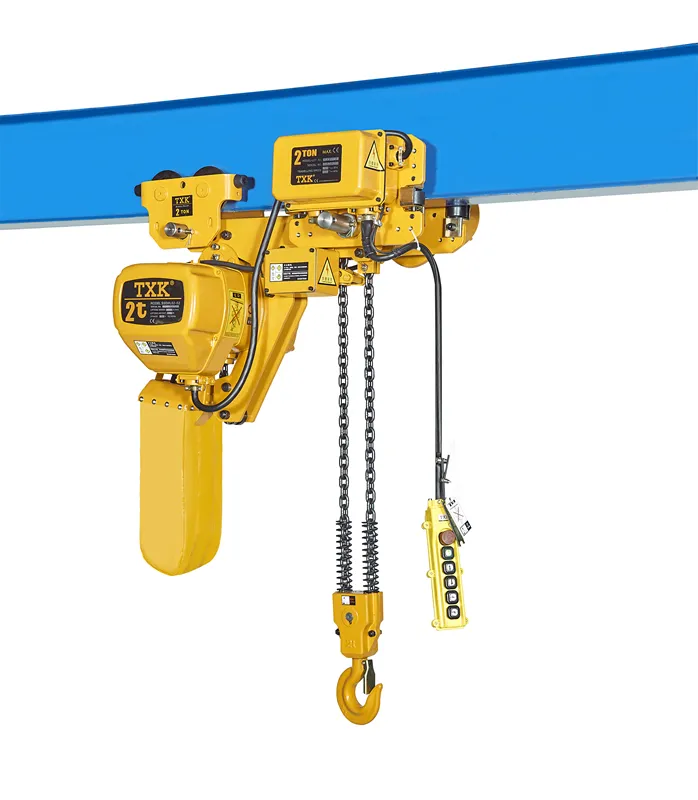

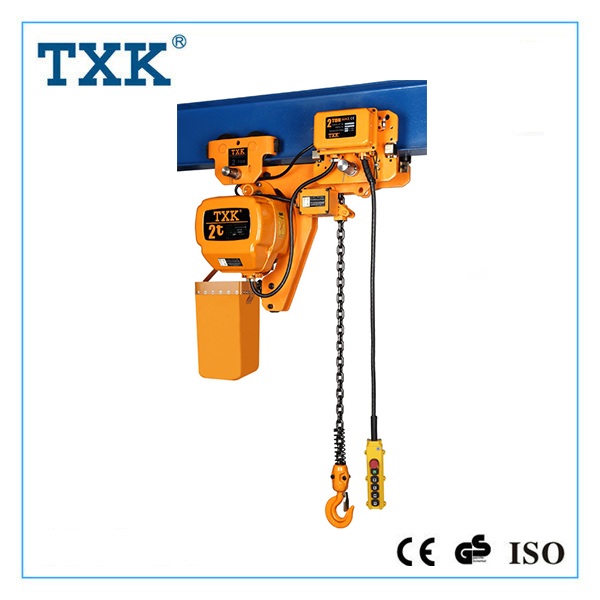

0.5Ton-2 Ton Low Headroom Electric Chain Hoist

TXK ultra low headroom electric chain hoist is uniquely designed to have shorter headroom than that of standard hoist configurations. This product is the most suitable for installation which requires a low celling of buildings or maximizes effective lift. The trolley are available as optional.

Technical Parameter

0.5ton-2 Ton Low Headroom Electric Chain Hoist

Model	SSDHL
Model	0.5-01L	01-01L	1.5-01L	02-01L	02-02L
Capacity(ton)	0.5t	1t	1.5t	2t	2t
Lifting Speed(m/min)	7.2	6.6	8.8	6.6	3.3
Motor Power(Kw)	0.8	1.5	3.0	3.0	1.5
Rotation Speed(r/min)	1440
Insulation Grade	F
Power Supply	3P,220V-690V,50Hz/60Hz
Control Voltage	24V/36V/48V
No.of Chain	1	1	1	1	2
Spec.of Load Chain(Φ)	6.3	7.1	10.0	10.0	7.1
Net Weight(kg)	58-153	58-153	82-178	82-178	82-178

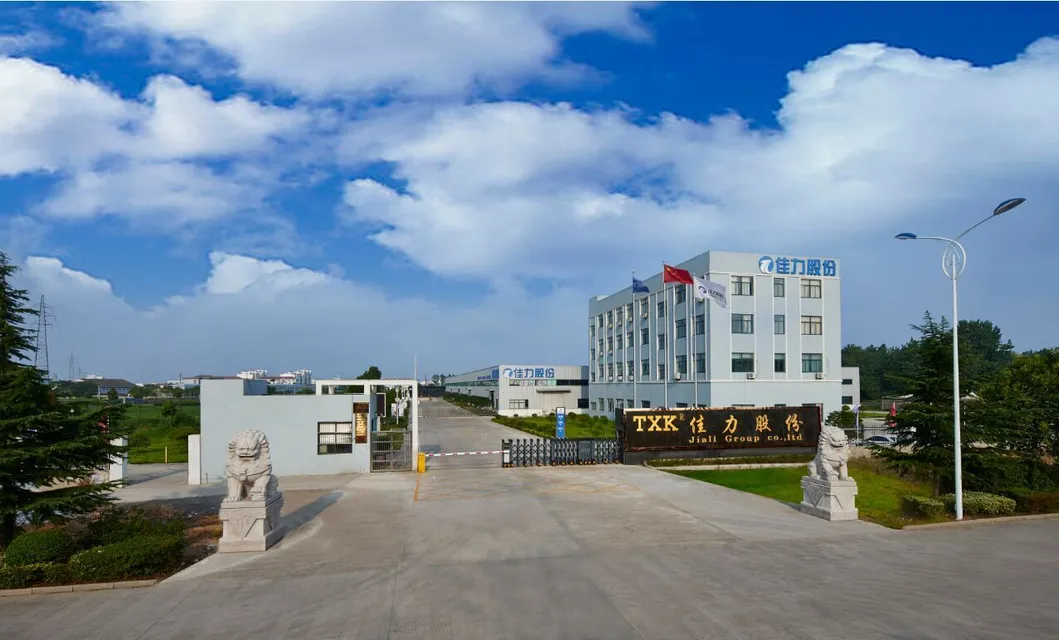

Company Profile

TXK was founded in 1997 with 1.5 million USD registered fund in the very beginning and grow up as a leading manufacturer of electric chain hoist, manual chain hoist, electric wire rope hoist and various lifting and material handling equipments with more than 15 years experience and hard work.Our factory cover an area of 66000 square meters, the biggest workshop in the electric hoist industry in China.
We provide quality, safe and stable products to meet the highest industrial standards. We are ISO9001: 2008 and TUV certified manufacturer, our products are CE, GS, SGS certified, serving all spheres of industry in the world.
Our products are widely used in industry and manufacturing industry and other special purpose, such as mold, wind power, logistics, railway, shipbuilding, bridge construction, factory assembly line, mechanical maintenance platform etc.
The company establishes a global marketing network with exportation to Germany, Norway, Poland, United States, Canada, Mexico, Peru, Brazil, Argentina, Egypt, Saudi Arabia, South Africa, India, Indonesia, Malaysia and total more than 50 countries and regions.
0.5ton-2 Ton Low Headroom Electric Chain Hoist

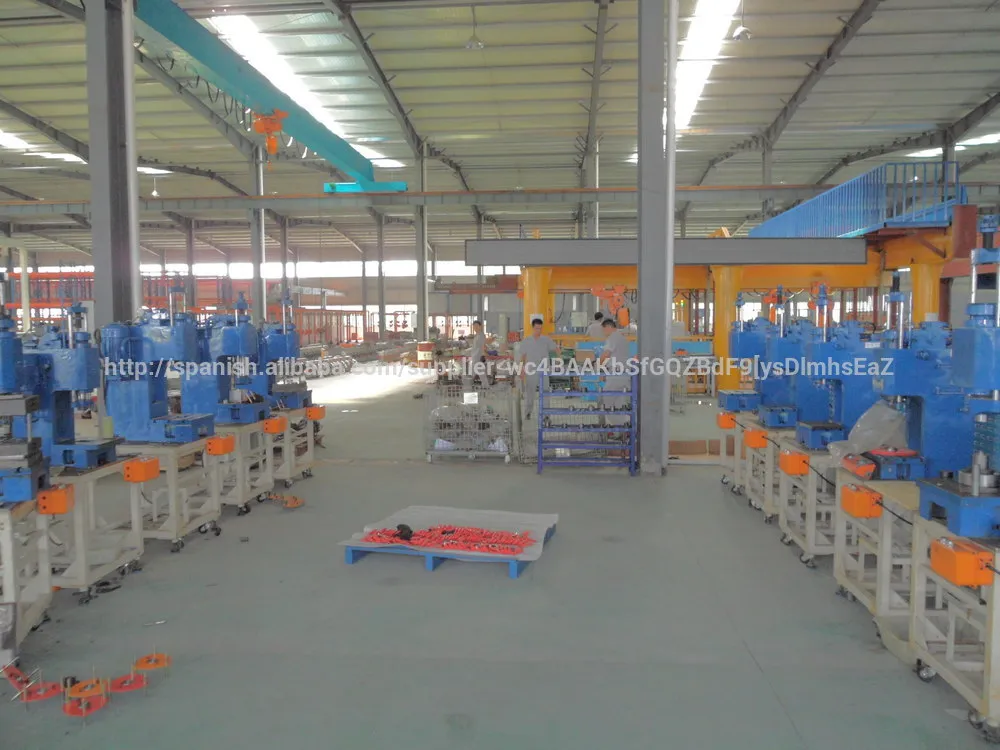

Workshop

0.5ton-2 Ton Low Headroom Electric Chain Hoist

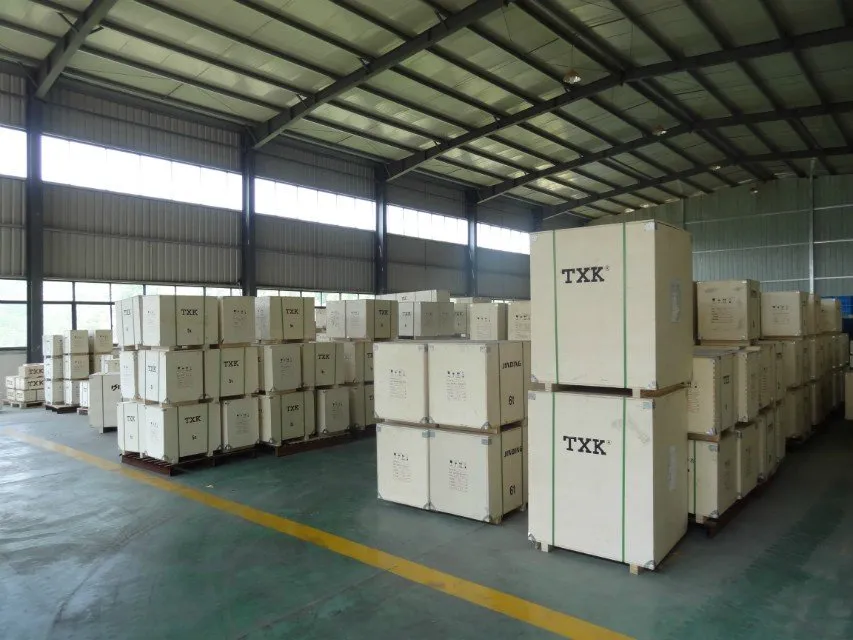

Packing

0.5ton-2 Ton Low Headroom Electric Chain Hoist

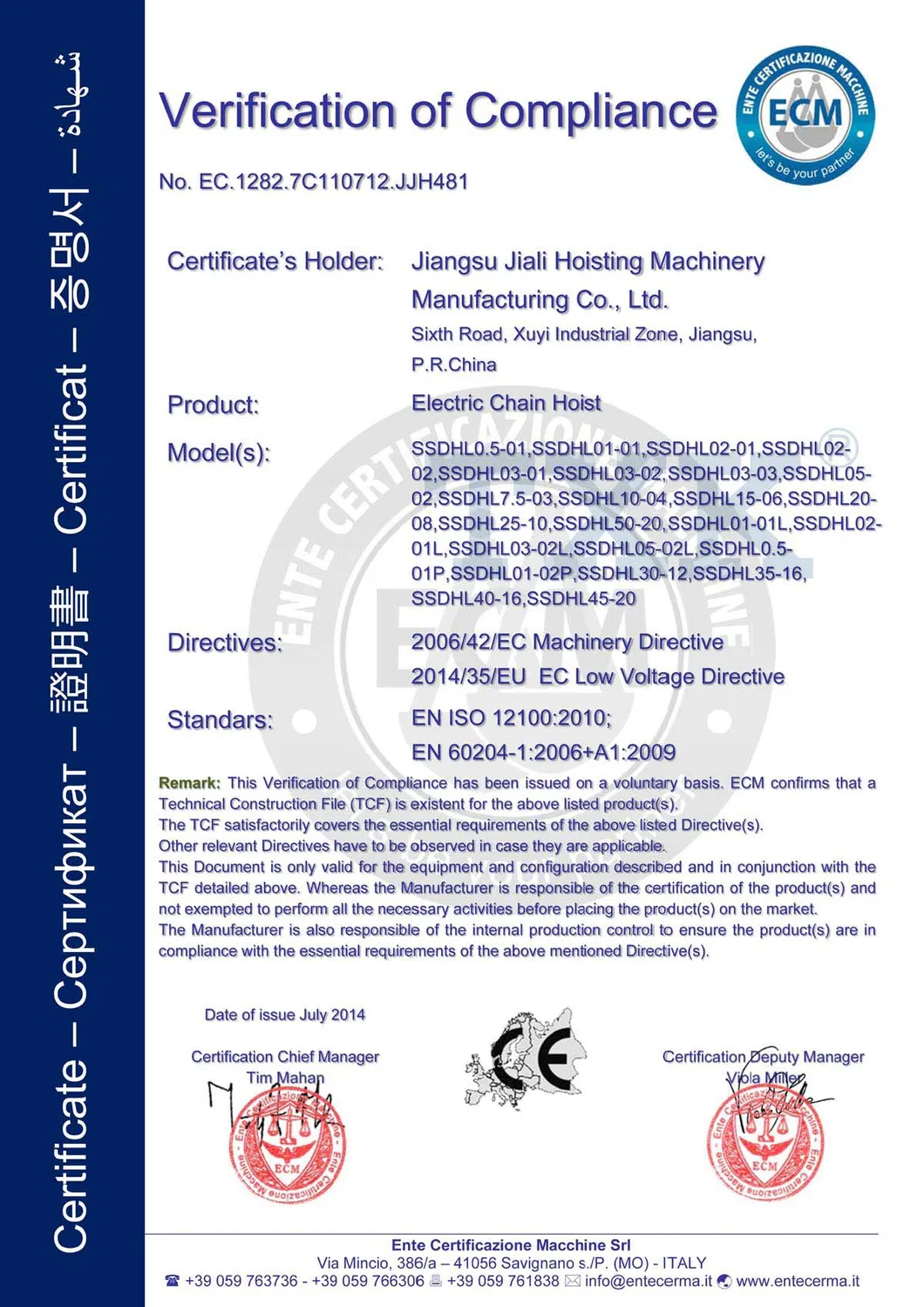

Certificates

7 reasons to trust TXK

Longest history and longevity - TXK is one of the oldest established electric chain hoist manufacturers in China,with almost 20 years.
Largest factory and production capability - TXK factory is the biggest factory covering more than 56,000 square meters territory.
Widest products and servuce providing - TXK can provide widest products items include electric&manual lifting equipments.
Richest experience in world business - TXK has more than 10 years experience on international trade business.
Fastest lead times - TXK factory is equipped with most efficient producing line which handled by skillful workers.
Fullest certifications - TXK factory and products are well certified by CE,GS,TUV,ISO,SGS,etc.
Highest reputation - TXK products are well sold in more than 50 countries.
