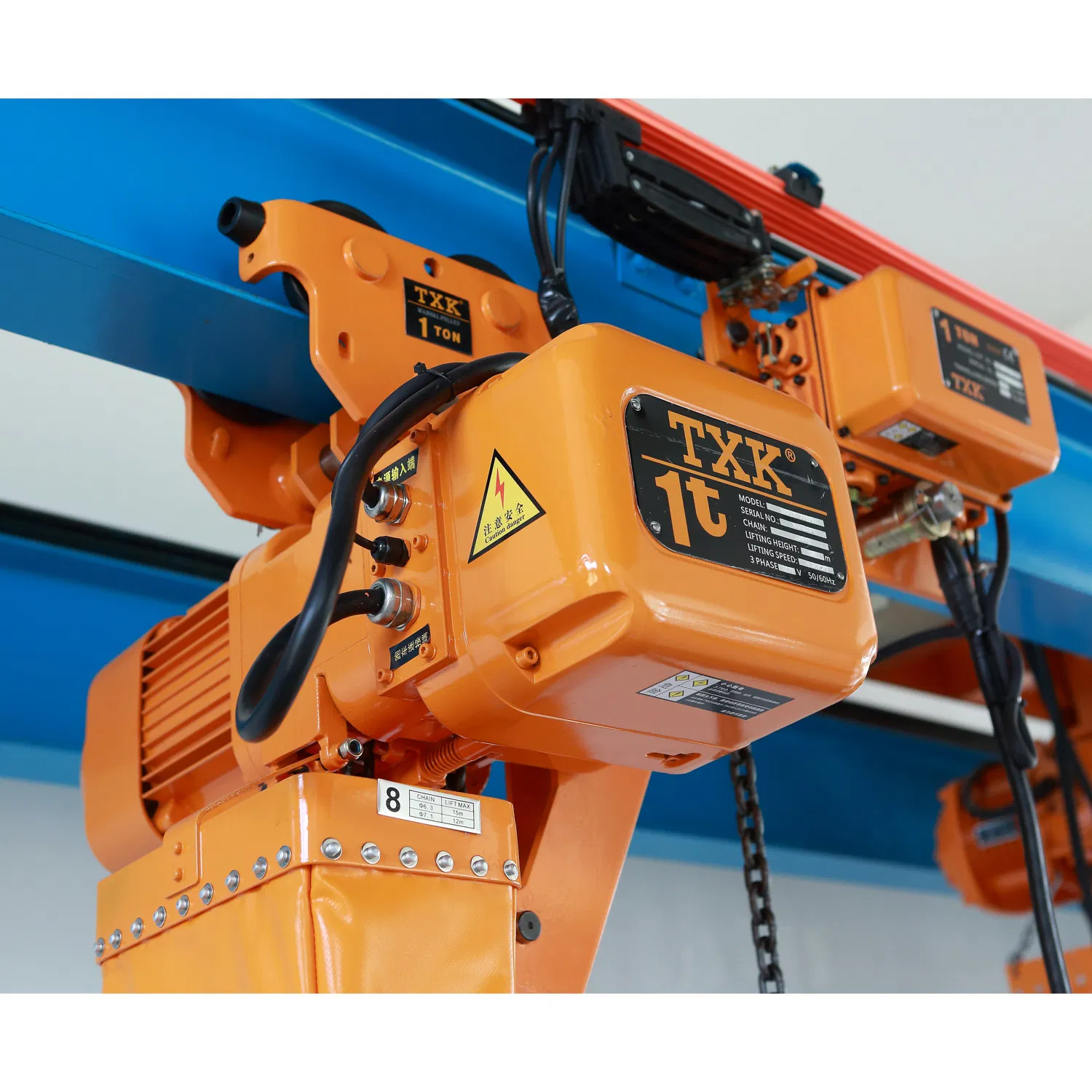

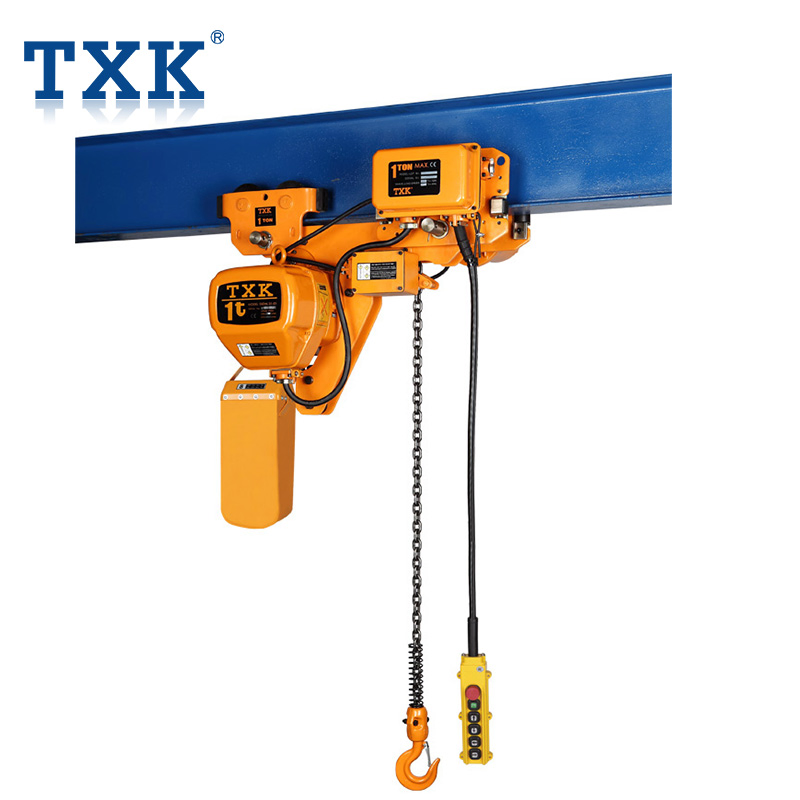

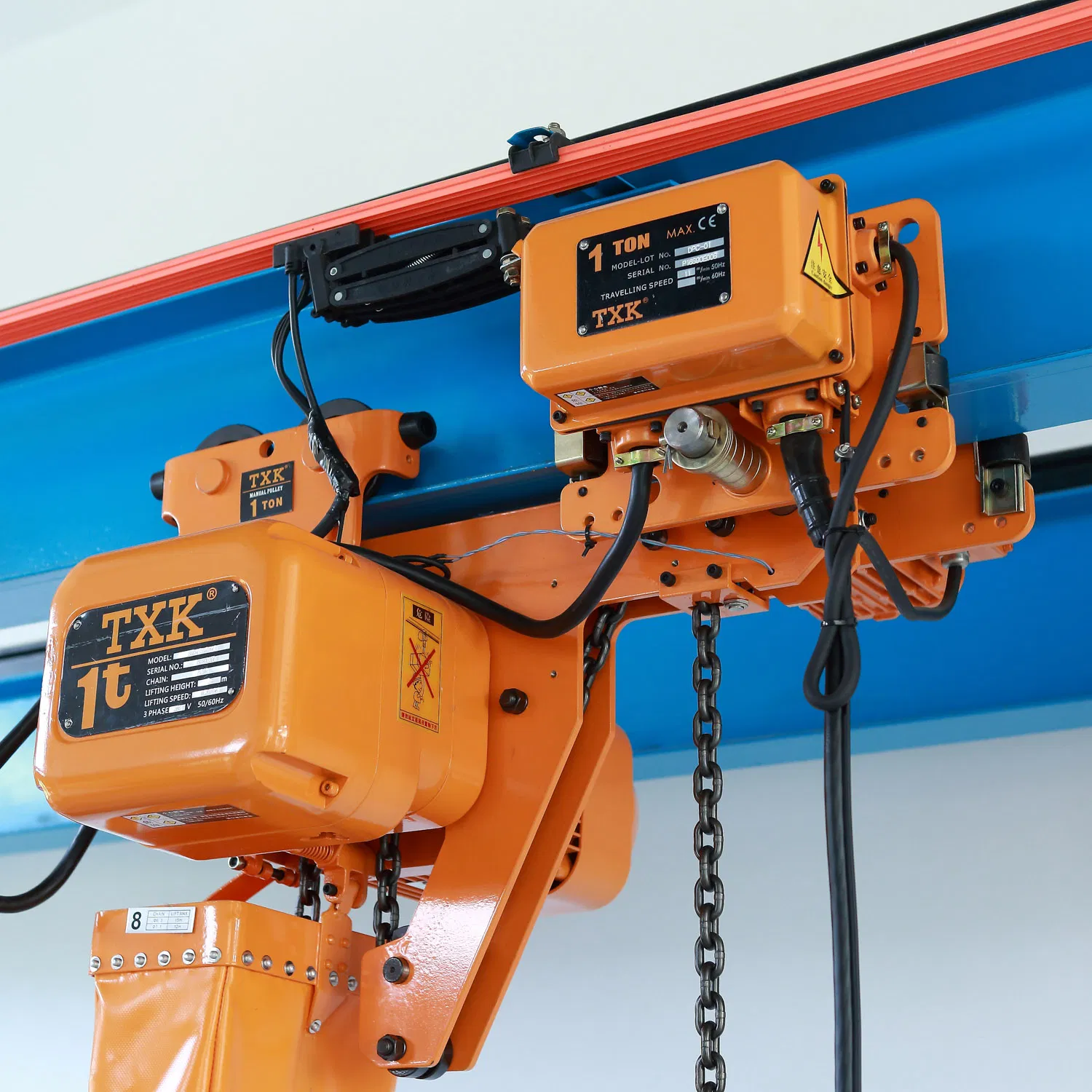

1t Txk Brand Low Headroom Electric Chain Hoist with Schneider Contactor
1T TXK brand low headroom electric chain hoist with Schneider Contactor Characteristics:0.5~50 ton lifting capacityWith upper hook (fixed) or with trolleySingle/Double speed option Shell: aluminum alloyChain: high quality G80Chain container: canvas / ironGear & chain wheel: alloy steel + heat tr......
Send Inquiry
Product Description
- 0.5~50 ton lifting capacity
- With upper hook (fixed) or with trolley
- Single/Double speed option
- Shell: aluminum alloy
- Chain: high quality G80
- Chain container: canvas / iron
- Gear & chain wheel: alloy steel + heat treatment
- Hooks: heat forging+heat treatment
- Chain diameter: 6.3~11.2mm (as per different capacities)
- Motor rotate speed:1440r/min(single speed), 2880/960 r/min(double speed),
- Standard chain length: 3m (can be customized)
- Power specification:200~690V,50/60HZ,3 Phase
- Safe voltage:24V/36V/48V
- Button switch:2/4/6/8 buttons option
- Insulation grade:F class
- Protection class: IP55
- Working group:M4
- Working temperature: -40ºC ~ +40ºC
- OEM acceptable
- Customized logo acceptable
- Package: plywood case
- Warranty: 2 years for mechanical parts, 1 year for electric parts
| Low Headroom Hoist | Technical Parameters | ||||||||
| Model | SSDHL | ||||||||
| 0.5-01L | 01-01L | 02-01L | 02-02L | 03-01L | 03-02L | 05-02L | 7.5-03L | 10-04L | |
| Capacity(t) | 0.5t | 1t | 2t | 3t | 5t | 7.5t | 10t | ||
| Lifting Speed(m/min) | 7.2 | 6.6 | 6.6 | 3.3 | 5.4 | 4.4 | 2.7 | 1.8 | 2.7 |
| Motor Power(Kw) | 0.8 | 1.5 | 3.0 | 1.5 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 |
| Rotation Speed (r/min) | 1440 | ||||||||
| Insulation Grade | F | ||||||||
| Power Supply | 3P 220V ~ 690V | ||||||||
| Control Voltage | 24V/36V/48V | ||||||||
| No. of Chain | 1 | 1 | 1 | 2 | 1 | 2 | 2 | 3 | 4 |
| Spec. of Load Chain | ø6.3 | ø7.1 | ø10.0 | ø7.1 | ø11.2 | ø10.0 | ø11.2 | ø11.2 | ø11.2 |
Company Profile
TXK was founded in 1997 and is a leading manufacturer of lifting and material handling equipments with almost 20 years experience. We provide quality, safe and stable products to meet the highest industrial standards. We are ISO9001:2008 certified company, our products are GS, CE certified, serving all of industry in the world.
Our brand TXK is well sold in more than 50 countries worldwide and has earned an enviable reputation for high quality products. With our professional R&D team, we are able to provide customization services with the most professional quality and never stop meeting the highest standard of safety.
TXK will never stop being as an innovation manufacturer. We will continue to develop and extend our products range with high quality, safety standard and long life usage.
