Product Description

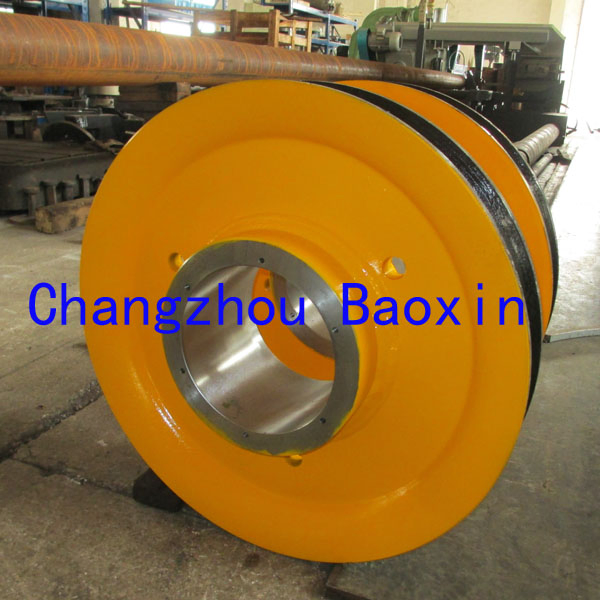

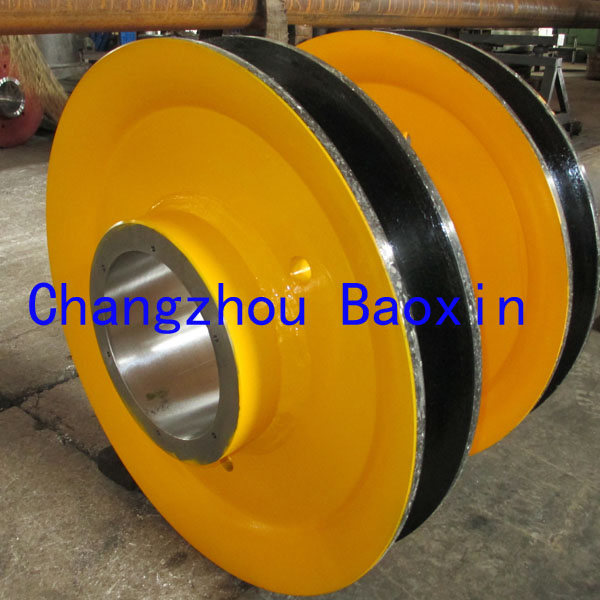

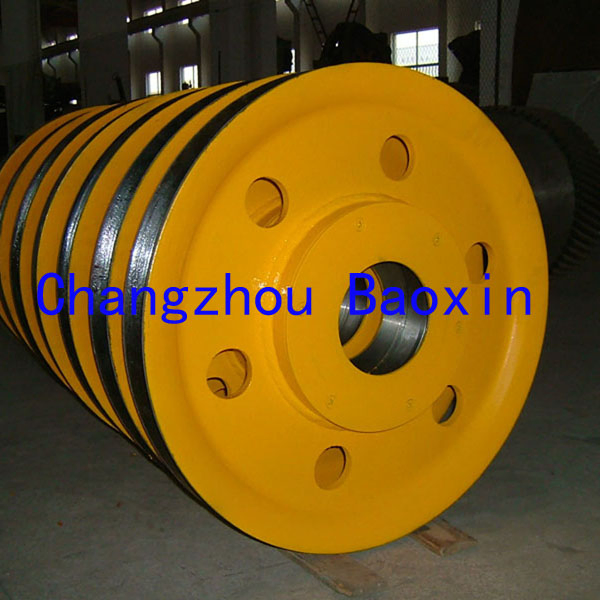

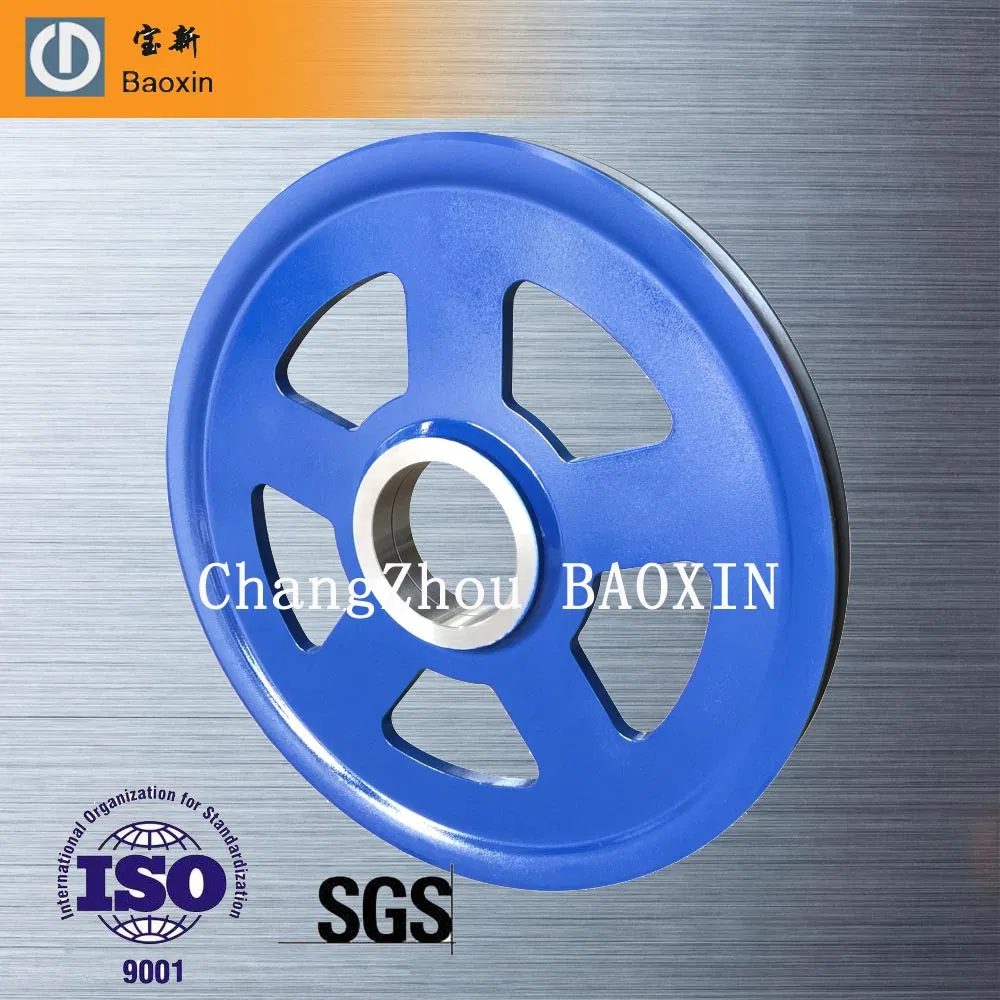

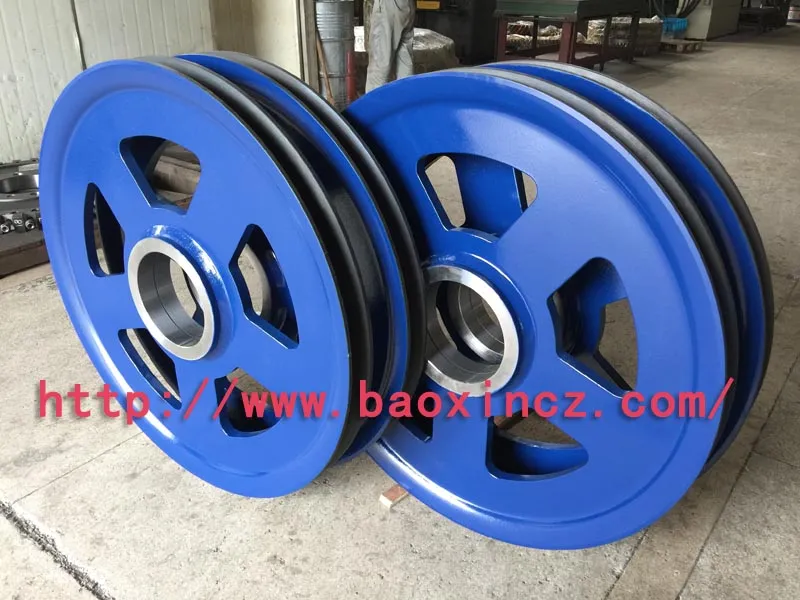

ASTM A194 2H High Strength Hoisting Pulley,
With high bearing capacity, high wear resistance and long service life
Sheave features:

1) Material: Q235B, Q345B, 35#, 45#, 60#, SSW-QR1, S45C
2) Groove surface quench: HRC45-55
3) Groove surface quench depth: 2mm-2.5mm
4) groove MT after heat treatment and welding line UT and MT
4) Max processing diameter: 2, 000mm
5) Short production cycle
It is used for crane equipment, port equipment, oil drilling rig and so on.

Code	Wire rope diameter(mm)	Main dimension(mm) D
Code	Wire rope diameter(mm)	Groove diameter	Outside diameter	R	Groove Width	Shaft diameter	Bearing hole width
BX1321	10-14	450	495	7	37	55	70
BX2321	>14-19	560	620	10	50	80	86
BX3321	>19-23.5	710	781	12	60	95	106
BX4321	>23.5-30	900	990	15	73	130	122
BX5321	>23.5-30	1120	1232	19	92	160	142
BX6321	>30-37	1250	1376	22	104	160	142
BX7321	>43-50	1600	1752	26	123	190	182
BX8321	>50-58	1800	1972	29	135	190	182

Services:
Best Services For You

1) We can provide OEM service and design for you
2) We can pack the goods according to your requirement
3) We test the quality of all products before delivery
4) We guarantee our reply in 24 hours of working day
5) We can communicate with you in different languages
6) High quality, best price, punctual shipment, good after-sale service will be guaranteed.

FAQ:
Q: What information should I provide if I want to order the products?
1) Product information: Quantity, specification
2) Delivery time required.
3) Shipping information: Company name, address, phone number, destination seaport/air port.
4) Forwarder's contact details if there is any in China.

Q: How about your payment terms?
A: 30% -50%deposit, with the balance before delivery, we accept T/T and L/C at sight.

Q: Can I use our own logo?
A: Yes, we can produce by using your own logo if you need.

Q: How about sample & MOQ policy?
A: Welcome sample order. MOQ can be 1 set.

Q: What is your lead time for your goods?
A: Normally 30 days after confirmed order,
