Ce GS Approved Construction Manual Lever Block, Manual Chain Hoist
TXK brand Chain Block,manual hoistChain Block ParametersModelCB-BCapacity(ton)0.250.511.52357.510Standard lifting height(m)2.52.52.52.52.53333Running Test Load(ton)0.31250.6251.251.8752.53.756.259.37512.5Headroom H(mm)280345376442470548688765765Effort to required to lift max. load(N)2262352452553243......
Send Inquiry
Product Description

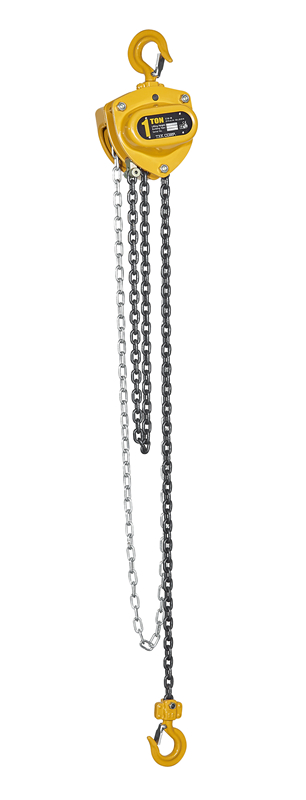

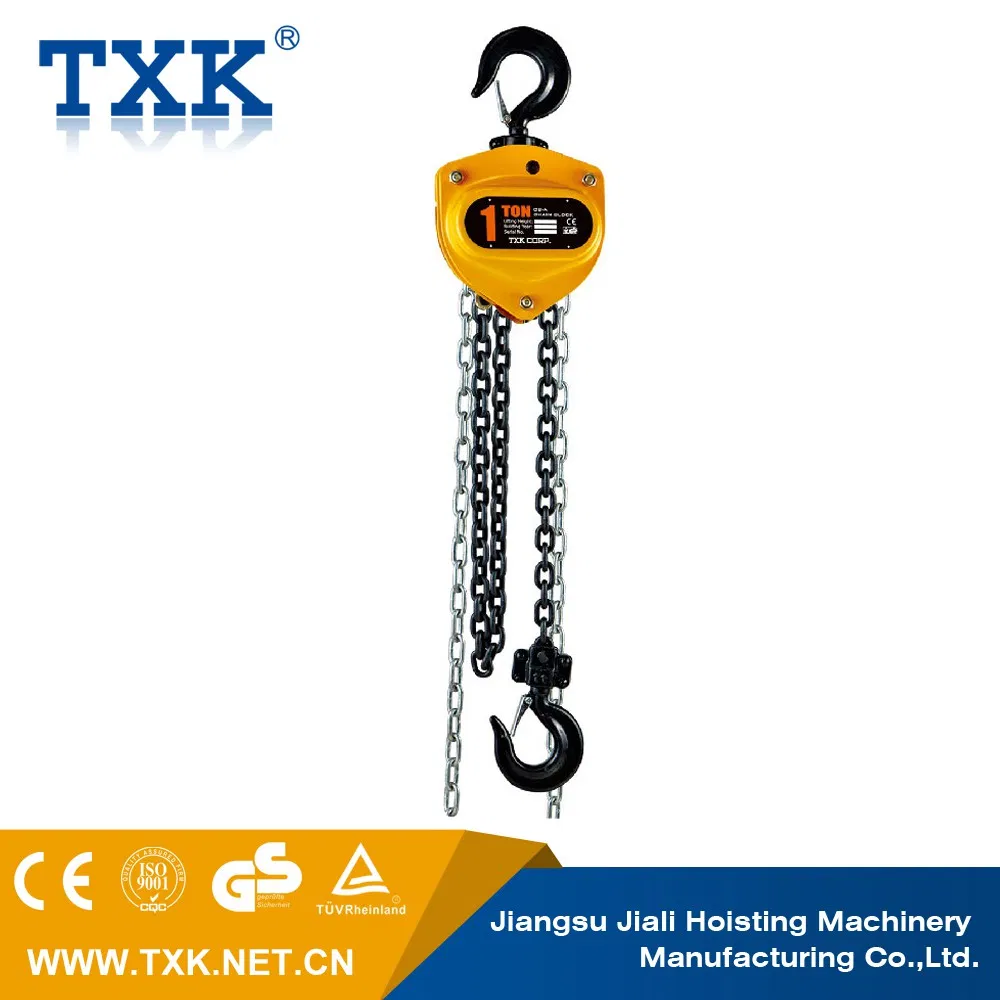

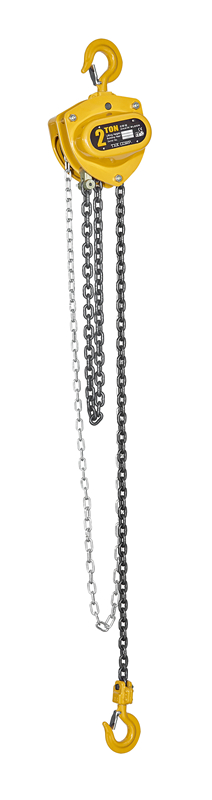

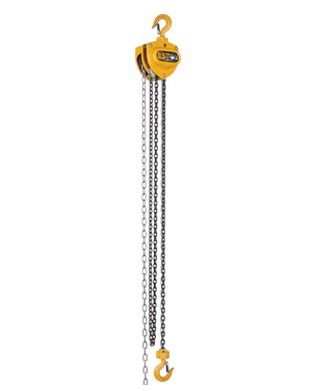

TXK brand Chain Block,manual hoist
Chain Block Parameters
What makes us different from others?
1. Production Capacity
*Over 96,000 square meters factory territory.
*Maximum daily capacity of new electric hoist can reach to 300 units.
2. Qualifications
*TXK is ISO9001:2008 cerfified company.
*Factory authorized by TUV Germany.
*CE & GS certificates for all products.
3. Marketing
*TXK is well sold in more than 60 countries.
*We serve over 2,000 companies in the world, include "500 Fortune Enterprises".
*Best price in Competitors of same products
What else you can get from us?
Chain Block Parameters
| Model | CB-B | |||||||||
| Capacity(ton) | 0.25 | 0.5 | 1 | 1.5 | 2 | 3 | 5 | 7.5 | 10 | |
| Standard lifting height(m) | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 3 | 3 | 3 | 3 | |
| Running Test Load(ton) | 0.3125 | 0.625 | 1.25 | 1.875 | 2.5 | 3.75 | 6.25 | 9.375 | 12.5 | |
| Headroom H(mm) | 280 | 345 | 376 | 442 | 470 | 548 | 688 | 765 | 765 | |
| Effort to required to lift max. load(N) | 226 | 235 | 245 | 255 | 324 | 363 | 353 | 373 | 380 | |
| Load Chain Dia. (mm) | Columns | 1 | 1 | 1 | 1 | 1 | 1 | 2 | 3 | 4 |
| Dia+Pitch | 4× 12 | 5× 15 | 6× 18 | 7× 21 | 8× 24 | 10× 28 | 9× 27 | 9× 27 | 9× 27 | |

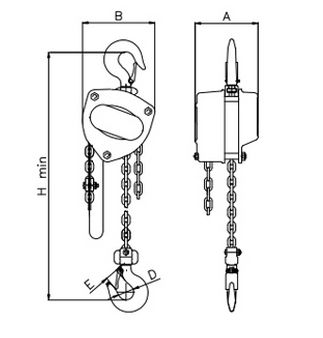

| Dimension(mm) | A | 121 | 148 | 172 | 196 | 210 | 255 | 280 | 433 | 463 |
| B | 114 | 132 | 151 | 173 | 175 | 205 | 189 | 189 | 189 | |
| C | 24 | 25 | 30 | 33 | 35 | 40 | 42 | 56 | 56 | |
| D | 31 | 31.5 | 37.5 | 42.5 | 45 | 50 | 53 | 85 | 85 | |
| Net Weight(kg) | 6.5 | 9.3 | 12.2 | 16.5 | 19.5 | 32 | 41.1 | 61.6 | 75.7 | |
| Packing Measurements(l× w× h)(mm) | 23× 16× 15 | 30× 17× 18 | 32× 18× 19 | 37× 20× 24 | 37× 20× 24 | 43× 40× 30 | 47× 44× 35.5 | 62× 47× 39.5 | 53× 51× 46.5 | |
| Extra Weight per meter of extra lift(kg) | 0.81 | 1 | 1.29 | 1.61 | 1.92 | 2.68 | 4.1 | 5.86 | 7.73 | |
What makes us different from others?
1. Production Capacity
*Over 96,000 square meters factory territory.
*Maximum daily capacity of new electric hoist can reach to 300 units.
2. Qualifications
*TXK is ISO9001:2008 cerfified company.
*Factory authorized by TUV Germany.
*CE & GS certificates for all products.
3. Marketing
*TXK is well sold in more than 60 countries.
*We serve over 2,000 companies in the world, include "500 Fortune Enterprises".
*Best price in Competitors of same products
What else you can get from us?
| *Electric Chain Hoist |
| *Wire Rope Hoist |
| *Crane & Crane Components |
| *Chain Block |
| *Lever Block |
| *Manual Trolley |
| *Wire Rope Pulling Hoist |
| *Hand Winch |
| *Permanent Magnetic Lifter |
| *Jack & Scale |
| *Plate & Drum Clamp |
