China High Quality Electric Lifting Equipment/Electric Chain Hoist

Product Description

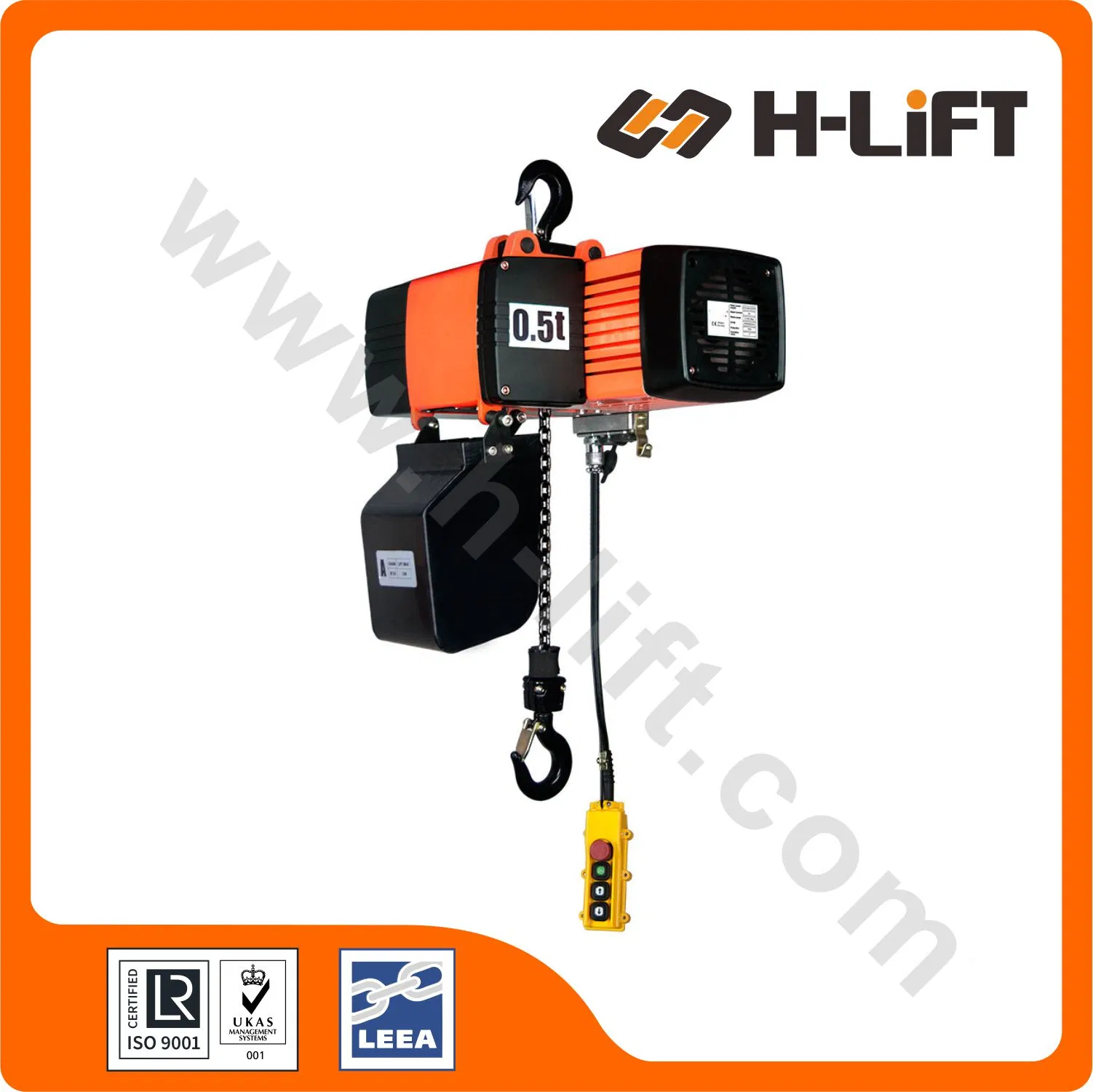

H-Lift Electric Chain Hoist EHY Type

Model		EHY0025	EHY005	EHY010	EHC020
Capacity t		0.25	0.5	1	2
Standard Lift m		3	3	3	3
Lifting Speed m/min		8/2	7/2.33	7/2.33	3.5/1.17
Work Group		2m/M5
Hoist Motor kw		0.4/0.1	0.72/0.18	1.6/0.4	1.6/0.4
ED %		26.6/13.4%
Load Chain mm		4x12	5x15	7.1x21	7.1x21
Load Chain Falls		1	1	1	2
Proof Load kN		3.06	6.13	12.25	24.5
H min mm		440	440	449	600

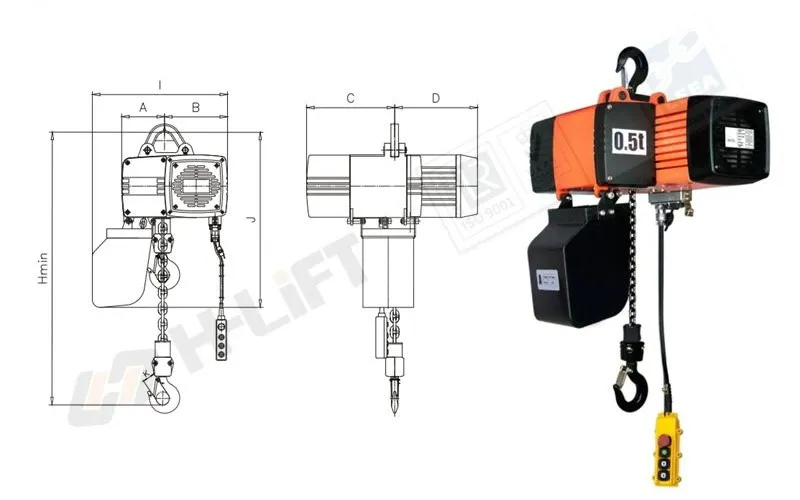

Dimensions (mm)	A	108	108	127	127
	B	172	172	188	188
	C	238	238	262	262
	D	169	217	329	238
	I	360	360	420	4250
	J	485	485	530	530
	K	31	31	38	38
Net Weight kg		30	32	51	56

High Quality Electric Lifting Equipment/Electric Chain Hoist

ALWAYS:
• Store and handle power operated blocks correctly.
• Inspect the block and accessories before use and before placing into storage.
• For top hook suspension, use hooks that are fitted with safety catches or mouse the hook and ensure the support fits freely into the seat of the hook.
• For trolley suspension, ensure the trolley is correctly set for the beam width.
• Check that the bottom hook will reach its lowest point without running the chain or rope fully out.
• Raise the load just clear then halt the lift to ensure the integrity of the block before continuing with the lift. If the block has more than one speed, start in the slow speed.

NEVER:
• Expose power operated blocks to chemicals, particularly acids, without consulting the supplier.
• Expose power operated blocks directly to the elements, water spray, steam etc without consulting the supplier.
• Replace the load chain or rope with a longer one without consulting the supplier.
• Use the load chain or rope to form a sling.
• Change motions without first allowing the motor to stop.
• Allow persons to ride on power operated blocks.

Selecting the Correct Block
Power operated blocks are available in a range of capacities, designs and suspensions with electric or pneumatic power options. Select the block to be used and plan the lift taking the following into account:
Type of block - chain, wire rope - electric, pneumatic - class of use - capacity and range of lift etc.
Type of suspension - hook, trolley, fixed.
Speeds and control - single speed, dual speed - pendant push button, pull cord, remote etc.
Power operated blocks are designed for vertical lifting only.
Consult the supplier if the block is to be used in areas of high risk, exposed to the elements, water, steam etc, with hazardous substances, eg acids or chemicals, or subjected to extremes of temperature.
