Product Description

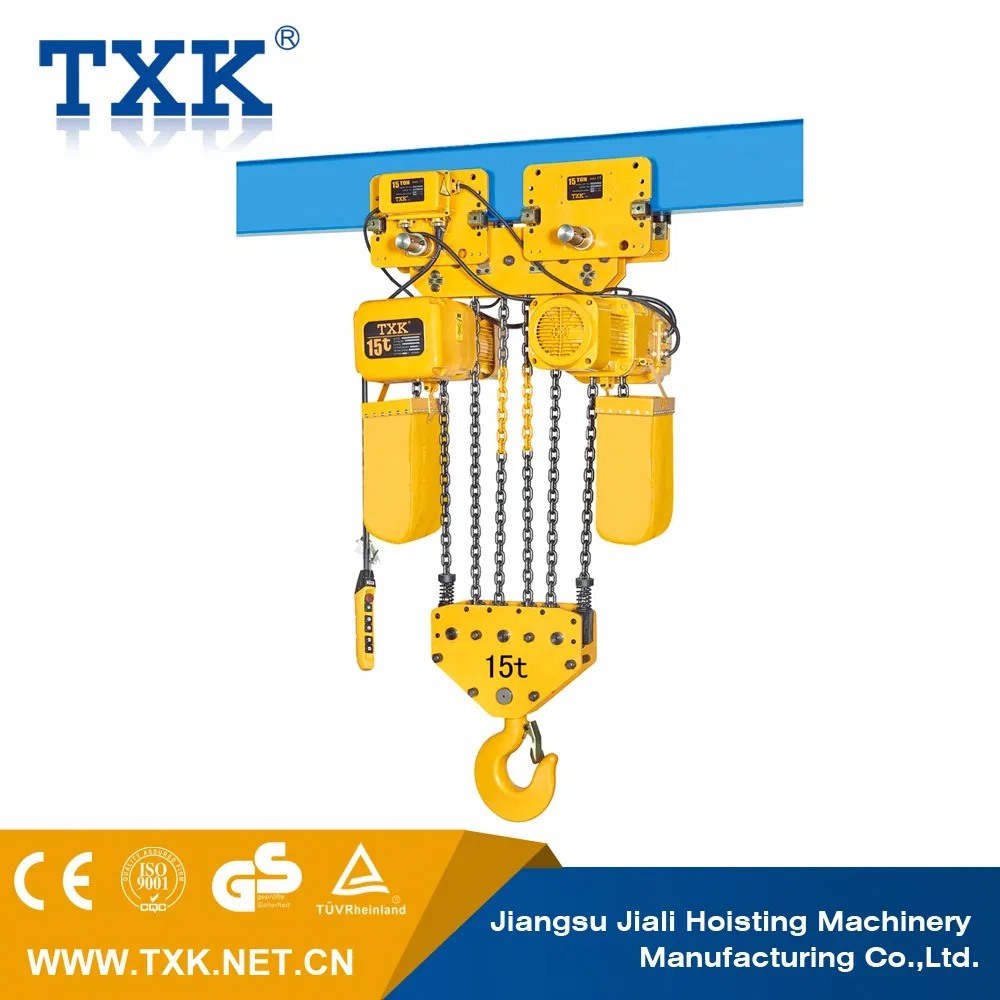

SSDHL15-06M Electric Chain Hoists specifications:

Model	SSDHL
Model	15-06S	15-06D
Capacity	15t
Lifting Speed(m/min)	1.8	1.8/0.6
Motor Power(kw)	3.0*2	3.02/1.02
Rotation Speed(r/min)	1440	2880/960
Insulation Grade	F
Power Supply	3P 220V-690V
Control Voltage	24V/36V/48V
No. of Chain	6	6
Spec. of Load Chain	Φ11.2
New Weight(kg)	382	455

Details of Electric Chain Hoists:

1. Electric motor partial outer cover
They are made of high strength aluminum system through compression casting formation.
Features: Solid and light, Fast release heat, Continuous use, Enclosed structure. Can be used in the chemical plants, electroplating factories, and other places.
2. Side kind braking
This masterly structure ensure the hoist absolutly safety when the power off. And ensures it is safe when has excess load. Also it combine to the motor braking as the double brake system to strengthen security and durability.
3. Gear
The gear made of alloy steel and through the heat treatment
4. Antiphase protector
Advatages: When power-supply wiring mistake, the control circuit is unable to move.
5. Hooks
They are made by hot forging and heat treatment.
6. Chain
It is made of FEC80 ultra strong heat treatment alloy steel.
Advatages: It is safely approximately when used in the rain water, the sea water, under the chemical and other bad conditions.
7. ISO: M4 /FEM: 1AM
Insulation grade: F
8. Protection class (hosit and push button): IP54
9. Powder supply: 3 phase, 200-600V, 50Hz
10. Noise (single/ double speed): 81dB.
