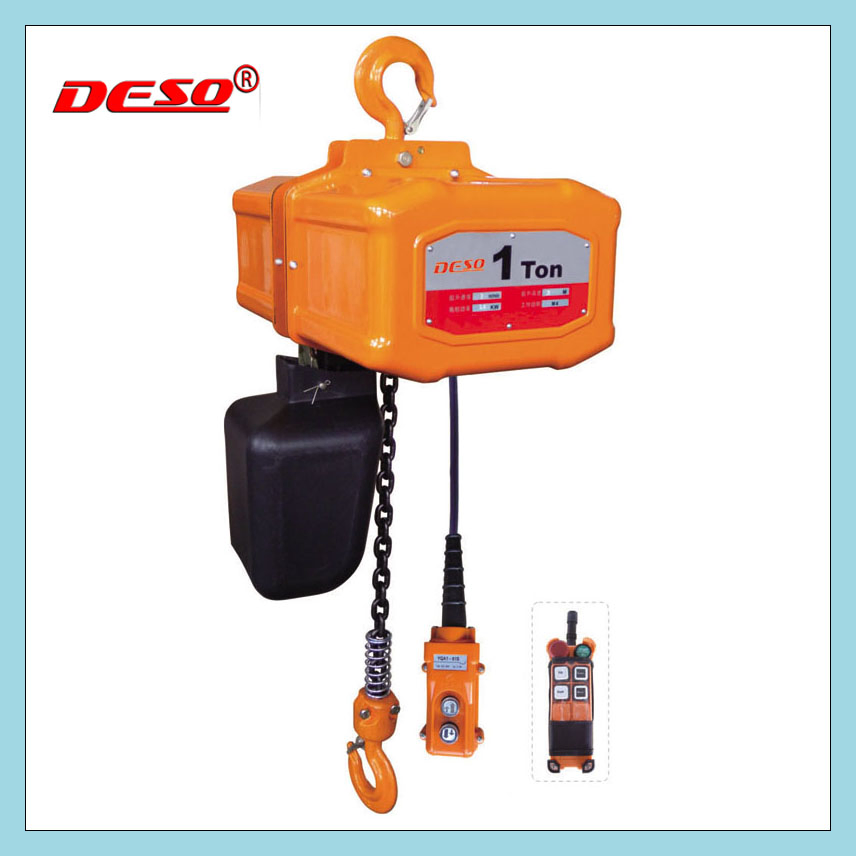

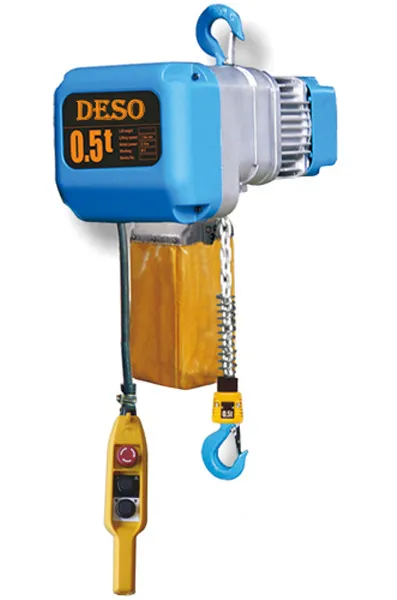

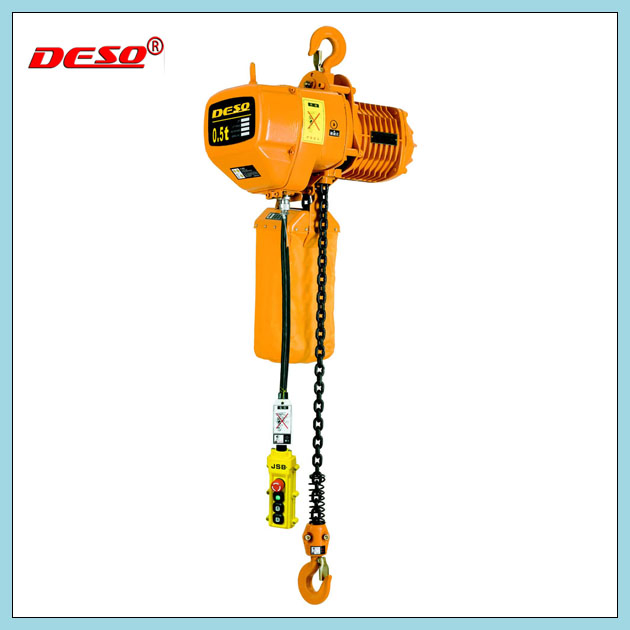

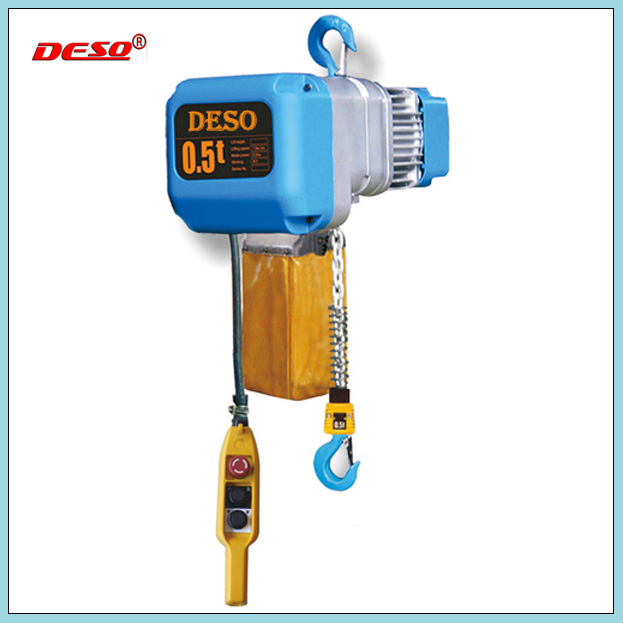

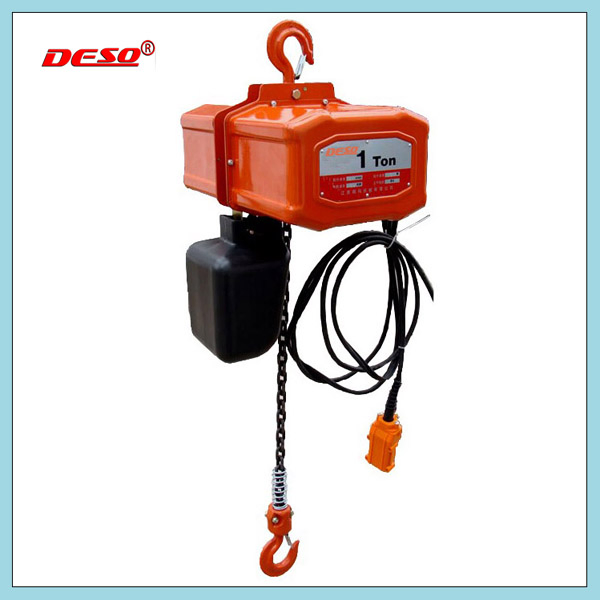

Suspended Lifting Electric Chain Pulley Hoist

Product Description

Electric Chain Hoist
Suspended Lifting Electric Chain Pulley Hoist

Features:
*Low voltage control 24V is standard. 36V, 48V is optional.
*High efficient energy-saving motor, asbestos free brake system.
*Light weight, compact and solid body case.
*Top and bottom hooks are fitted with safety latches as standard.
*Drop forged steel suspension & load hooks are heat treated and fracture resistant. In case of dangerous overloading or abuse, the hook does not fracture but will slowly yield.
*Super strong surface hardened chain
*Limit switch devices fitted at both top & bottom ends, switch off power automatically to prevent load chain from running out.
Suspended Lifting Electric Chain Pulley Hoist

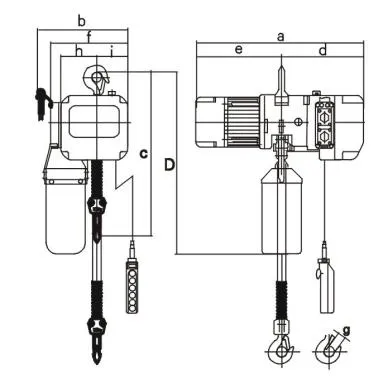

Type	Capacity (t)	Classification	Power (kw)	Lifting speed (m/min)	Load chain	N.W (kg)	Dimension(mm)
Type	Capacity (t)	Classification	Power (kw)	Lifting speed (m/min)	Load chain	N.W (kg)	c	d	a	b	d	e	f	g	h
D-H-0.25	0.25	m5	0.85/0.21	14/3.5	5x15	36/40	505	620	570/592	304	273	297/337	255	24	120
D-H-0.5	0.5	m5	0.9/0.3	7.6/2.5	6.3x19	38/42	520	620	592/610	304	273	319/337	255	31	120
D-H-1.0	1	m5	1.1/0.37	5/1.7	8x24	40/46	550	640	592/630	304	273	319/357	255	38	120
D-H-2.0	2	m4	1.1/0.37	2.5/0.85	8x24	50/56	700	680	592/630	304	273	319/357	255	45	120
D-H-2.0A	2	m5	3.0/1.0	6.0/2.0	11.2x34	98/108	605	770	694/740	408	336	358/404	342	45	170
D-H-2.5	2.5	m5	3.0/1.0	5.2/1.7	11.2x34	100/110	605	770	694/740	408	336	358/404	342	45	170
D-H-3.0	3	m4	3.0/1.0	2.6/0.85	11.2x34	105/115	820	770	694/740	408	336	358/404	342	45	170
D-H-5.0	5	m4	3.0/1.0	2.6/0.85	11.2x34	120/130	880	860	694/740	408	336	358/404	342	61	170
D-H-5.0	10	m4	2x3.0/1.0	2.6/0.85	11.2x34	280/300	1320	1100	694/740	408	336	358/404	342	71	170
