Txk 3 Ton 1 Chain Single Speed Ultra Low Headroom Hoist
Wholesale Low Price High Quality Professional 0.25 Ton to 50 Ton Electric Chain HoistSingle SpeedTechnical ParametersModel0.5-01L01-01L1.5-01L02-01L02-02L2.5-01L03-01L03-02L05-02L7.5-03L10-04LCapacity(T)0.511.5222.5357.510Lifting Speed(M/Min)7.26.68.86.63.35.45.44.42.71.82.7Lifting Motor Power(Kw)0.......
Send Inquiry
Product Description
Wholesale Low Price High Quality Professional 0.25 Ton to 50 Ton Electric Chain Hoist
| Single Speed | Technical Parameters | ||||||||||
| Model | 0.5-01L | 01-01L | 1.5-01L | 02-01L | 02-02L | 2.5-01L | 03-01L | 03-02L | 05-02L | 7.5-03L | 10-04L |
| Capacity(T) | 0.5 | 1 | 1.5 | 2 | 2 | 2.5 | 3 | 5 | 7.5 | 10 | |
| Lifting Speed(M/Min) | 7.2 | 6.6 | 8.8 | 6.6 | 3.3 | 5.4 | 5.4 | 4.4 | 2.7 | 1.8 | 2.7 |
| Lifting Motor Power(Kw) | 0.8 | 1.5 | 3.0 | 3.0 | 1.5 | 3.0 | 3.0 | 3.0 | 3 | 3 | 3 |
| Traveling Speed(M/Min) | 21.0 | 21.0 | 21.0 | 21.0 | 21.0 | 21.0 | 21.0 | 21.0 | 11.0 | 11.0 | 11.0 |
| Traveling Motor Power(M/Min) | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 | 0.75 | 0.75 | 0.75 | 0.75 | 0.75 | 0.75 |
| Rotation Speed(R/Min) | 1440 | ||||||||||
| Insulation Grade | F | ||||||||||
| Power Supply | 3P 220V-690V | ||||||||||
| Control Voltage | 24V/36V/48V | ||||||||||
| No. Of Chain | 1 | 1 | 1 | 1 | 2 | 1 | 1 | 2 | 2 | 3 | 4 |
| Spec. Of Load Chain | φ6.3 | φ7.1 | φ10.0 | φ10.0 | φ7.1 | φ11.2 | φ11.2 | φ10.0 | φ11.2 | φ11.2 | φ11.2 |
| Net Weight(Kg) | 82 | 110 | 156 | 183 | 114 | 187 | 195 | 202 | 282 | 310 | 425 |
| I-Beam Width(mm) | 58-153 | 58-153 | 82-178 | 82-178 | 82-178 | 100-178 | 100-178 | 100-178 | 100-178 | 150-220 | 150-220 |
Packaging & Shipping
Packaging Details:Plywood Cases (Fumigation-free packing)
Shipping Details:7 Days Rapid Deliver
Product Description

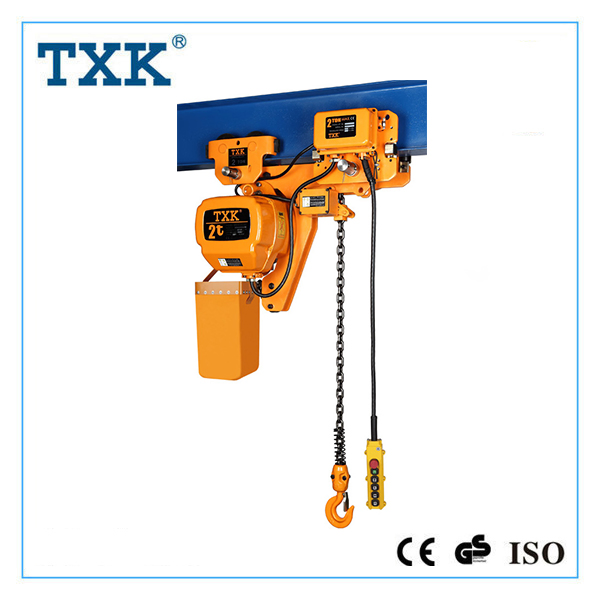

TXK Electric Chain Hoist
1. Aluminum alloy shell , light but hard .
2. G80 Load chain or Japan FEC G80 load chain, can be used in harsh environment .
3. Hook: hot forged with perfect strength , hard to break .
4. Push button, remote control : imported from Taiwan .
5. Three phase & Single phase electric chain hoist, both optional
