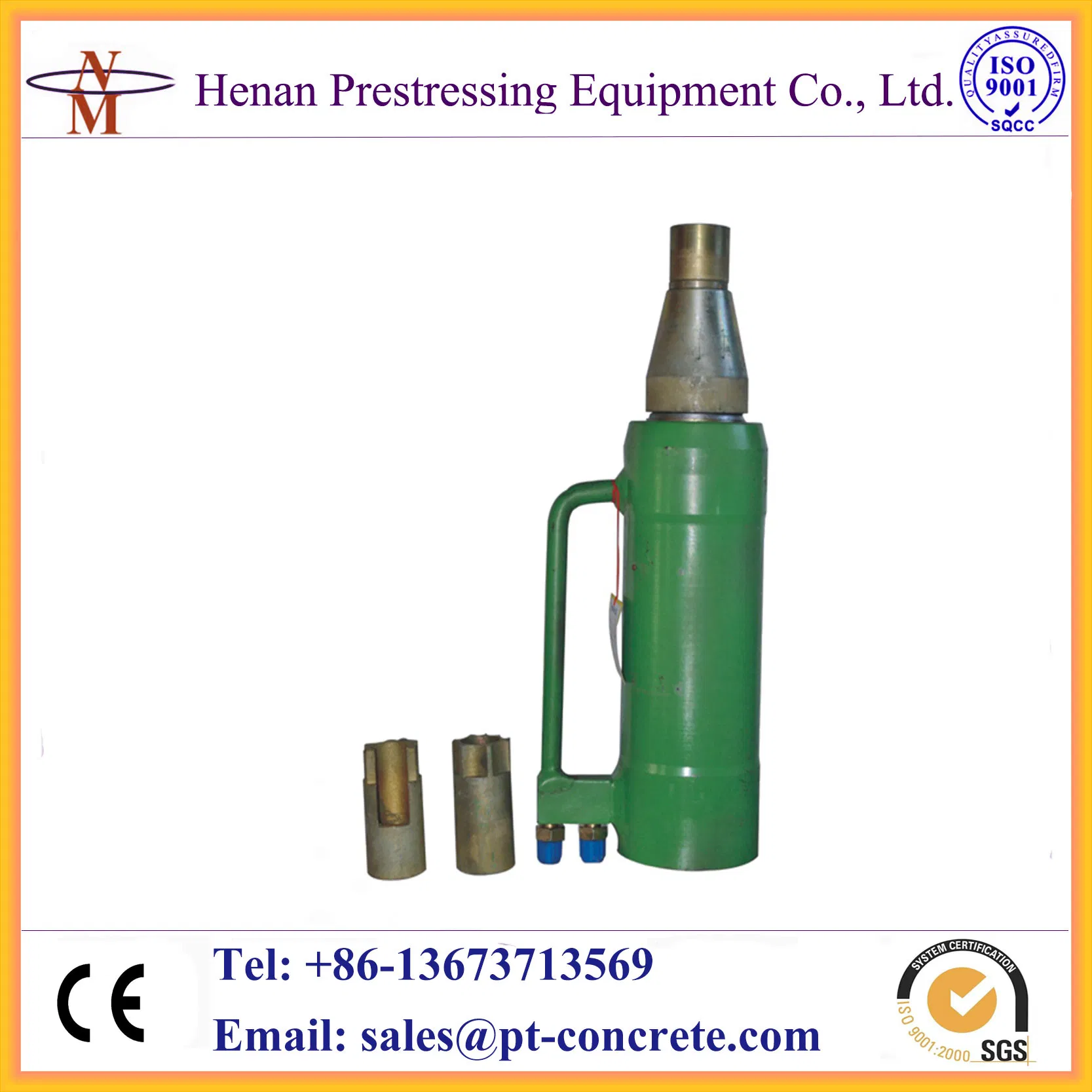

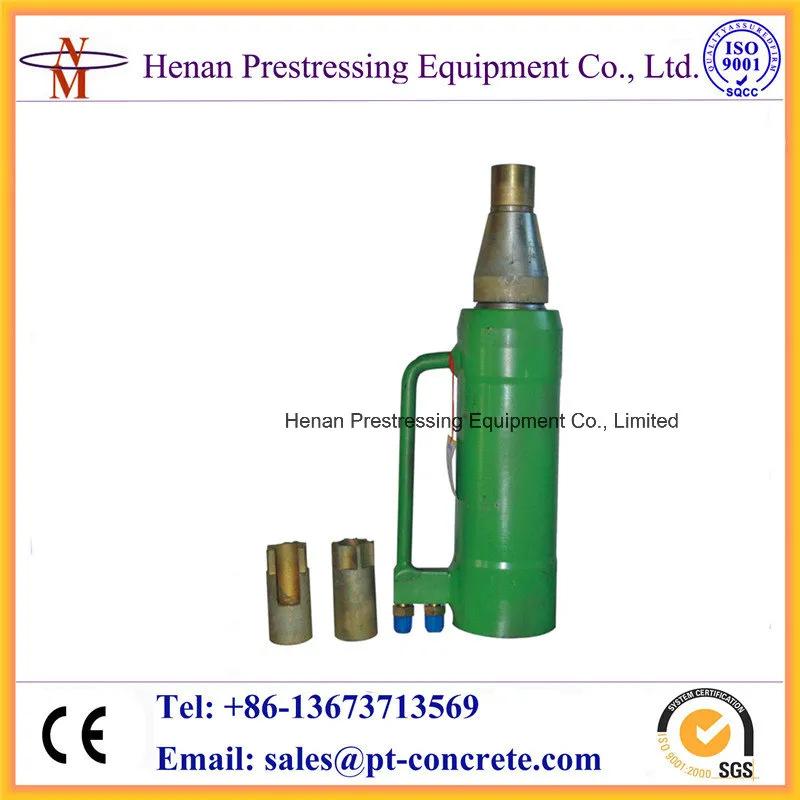

Qyc270 Hydraulic Monostrand Pretension Jack
QYC270 Prestressed Hydraulic Monostrand Stressing Jack PRODUCTION DESCRIPTIONS 1. Model: QYC270(27 tons), QYC240(24 tons).2. Capacity: 24 tons and 27 tons, Tension Journey: 200mm, Tension Cylinnder Area: 4418mm², Weight: 24kg, Size: 108x510mm.3. Usage: For stressing single strand, such as......
Send Inquiry
Product Description

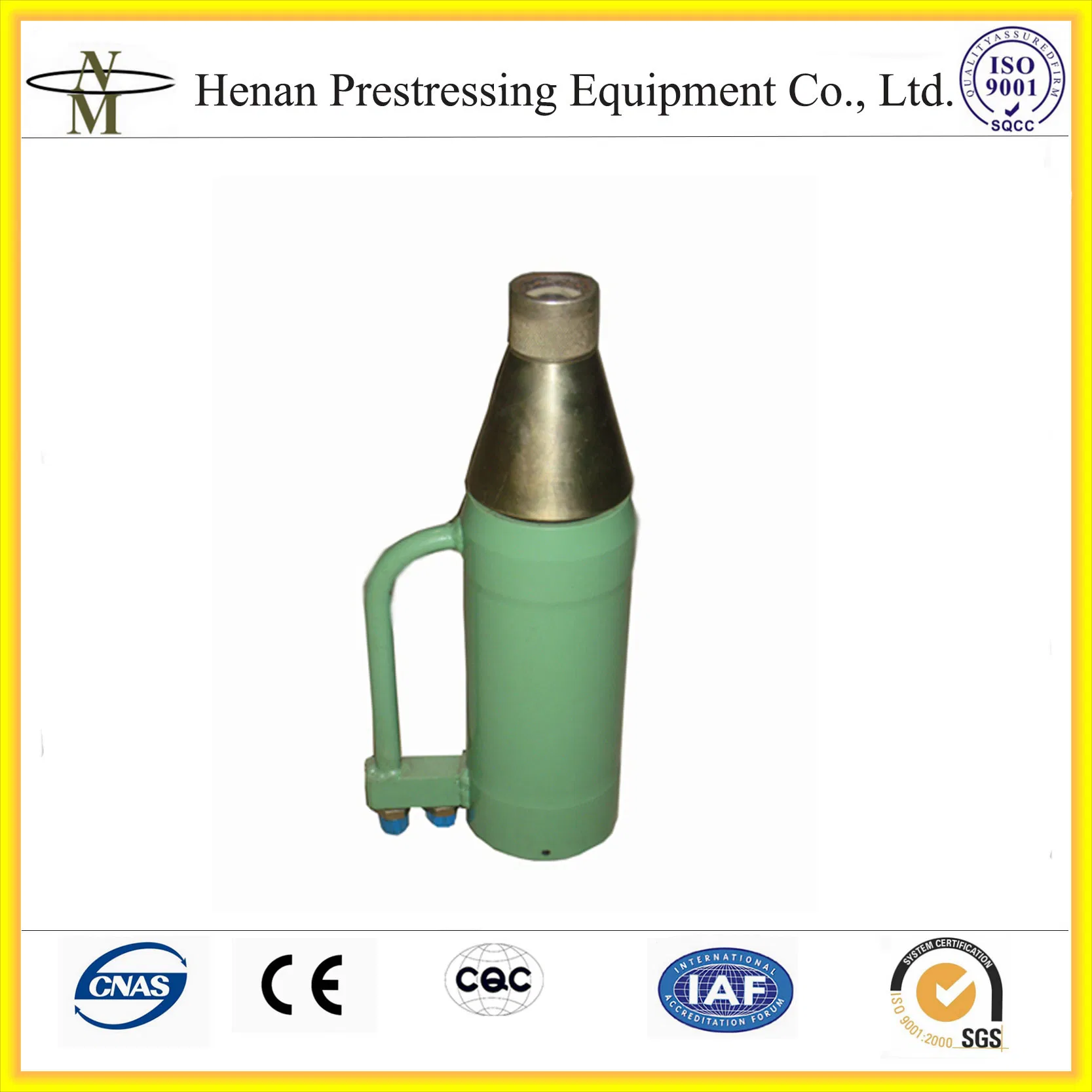

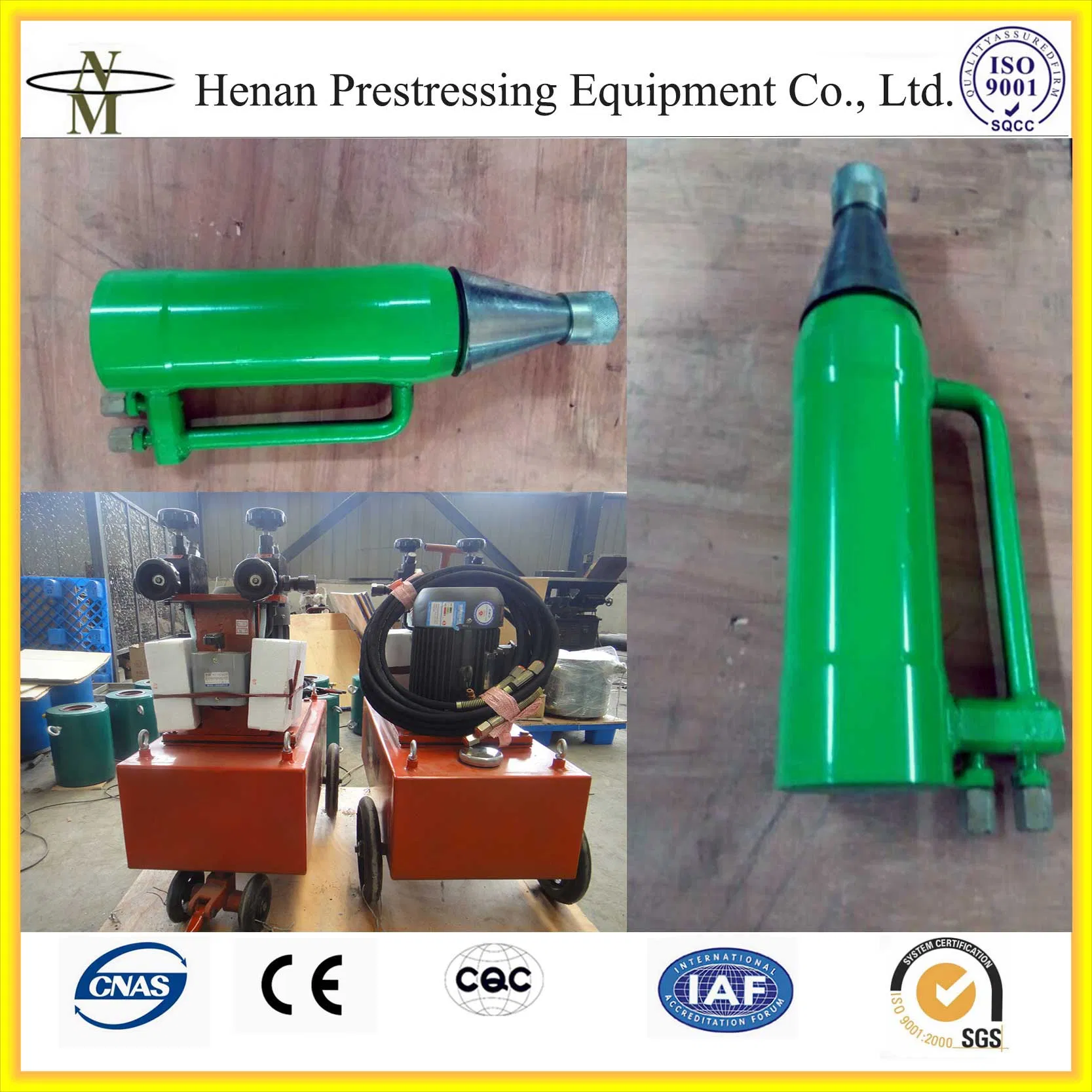

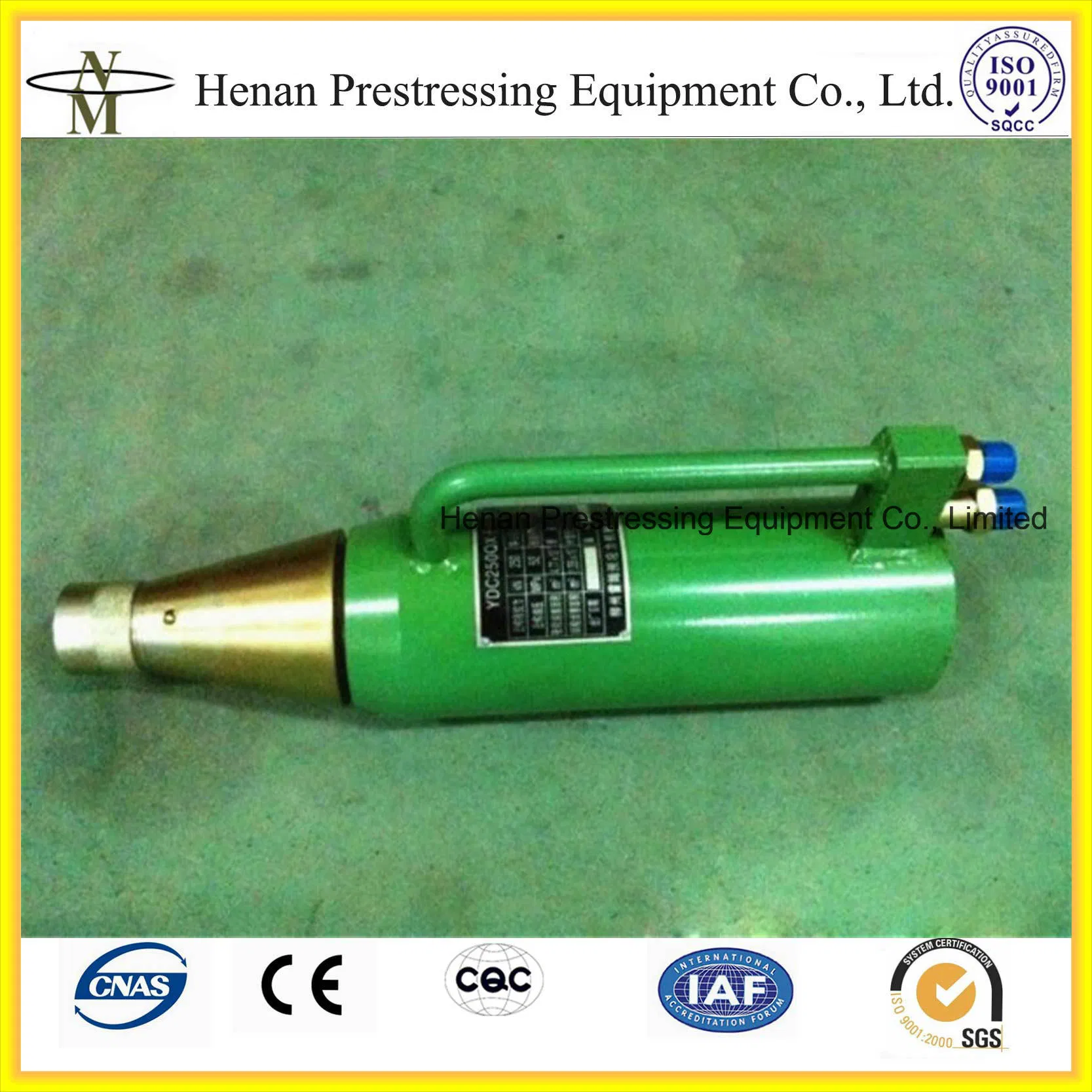

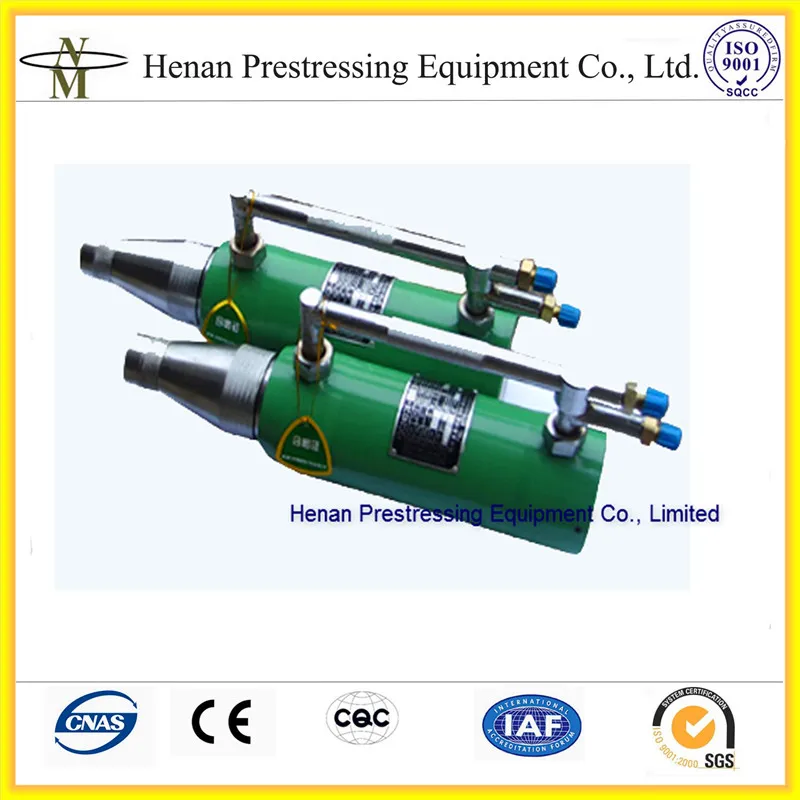

QYC270 Prestressed Hydraulic Monostrand Stressing Jack
PRODUCTION DESCRIPTIONS
1. Model: QYC270(27 tons), QYC240(24 tons).
2. Capacity: 24 tons and 27 tons, Tension Journey: 200mm, Tension Cylinnder Area: 4418mm², Weight: 24kg, Size: 108x510mm.
3. Usage: For stressing single strand, such as unbonded monostrand anchor system and flat anchor system.
4. For PC Strand Diameter: 9.53mm, 12.7mm, 15.24mm, for PC Steel Wire Diameter: 5mm, 7mm, 9mm.

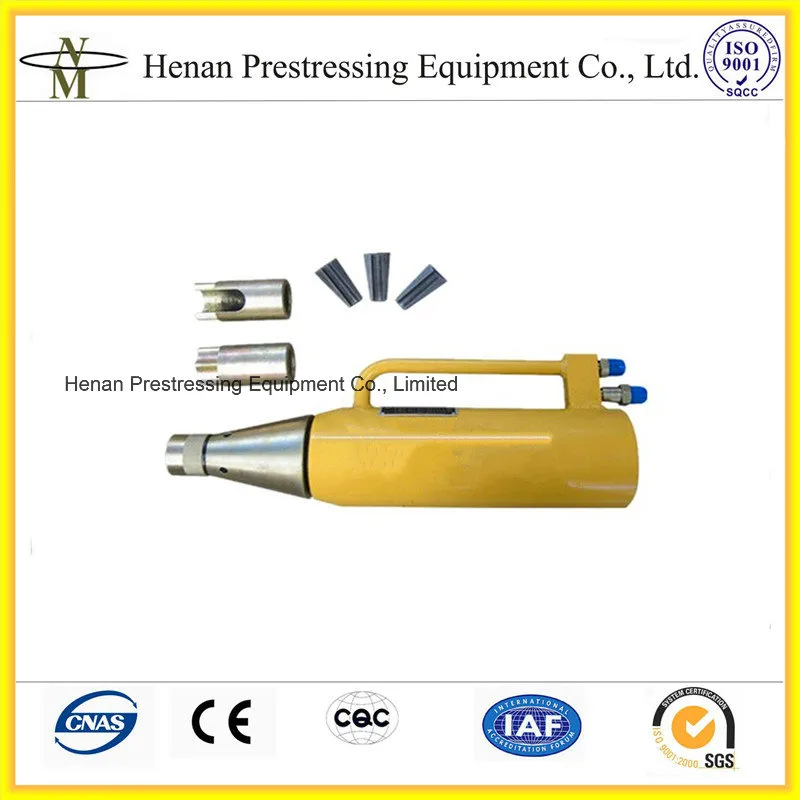

5. Accessories: Removing Anchor Device, Limited Board, Seal Kits, Spare Wedges.
APPLICATIONS
1). For Buildings: Housing, Commercial Buldings, High Rise Buildings.
2). For Municipal Engineering: Railway, Highway, Over Head Fast Speed Way, Metro Way, High-speed Railway, etc.
3). For Projects: Mining, Piling, Foundation, Slope and Rock Reinforcement, Hydropower Station, Anchoring Engineers, Water Conservancy Project, Oil or Gas Tank, etc.
FEATURES
Features: It can tension different diameter of pc strand, steel wire and steel rebar(see followings) by replacing different grip wedges inside it.
A: It can tension 12.7mm, 15.24mm, 15.7mm, 16mm pc strand.
B: It can tension 5mm, 7mm, 8.0mm, 9.52mmn steel wires.
C: The customized jack can tension 16mm, 22mm, 24mm, 26mm, 28mm, 32mm, steel rebar.
6. Professional Services: 1x7 days 24 hours service online, and engineer can service oversea
7. Warranty Time: One Year, we will send you Repair Kits if you need any time.
QYC270 TECHNICAL DATA

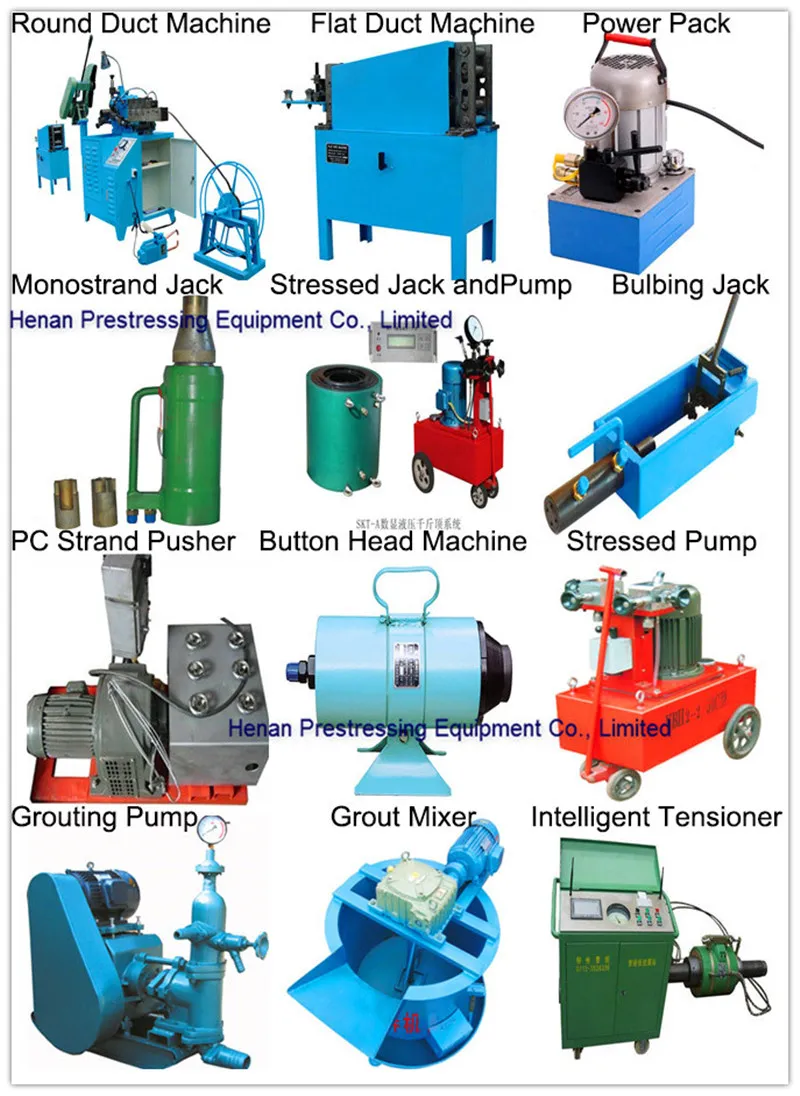

ABOUT OUR COMPANY
Henan Prestressing Equipment Co.,Limited manufacture full complete post tension components, materials and post tension equipment for buildings and bridge construction.
OUR ADVANTAGES

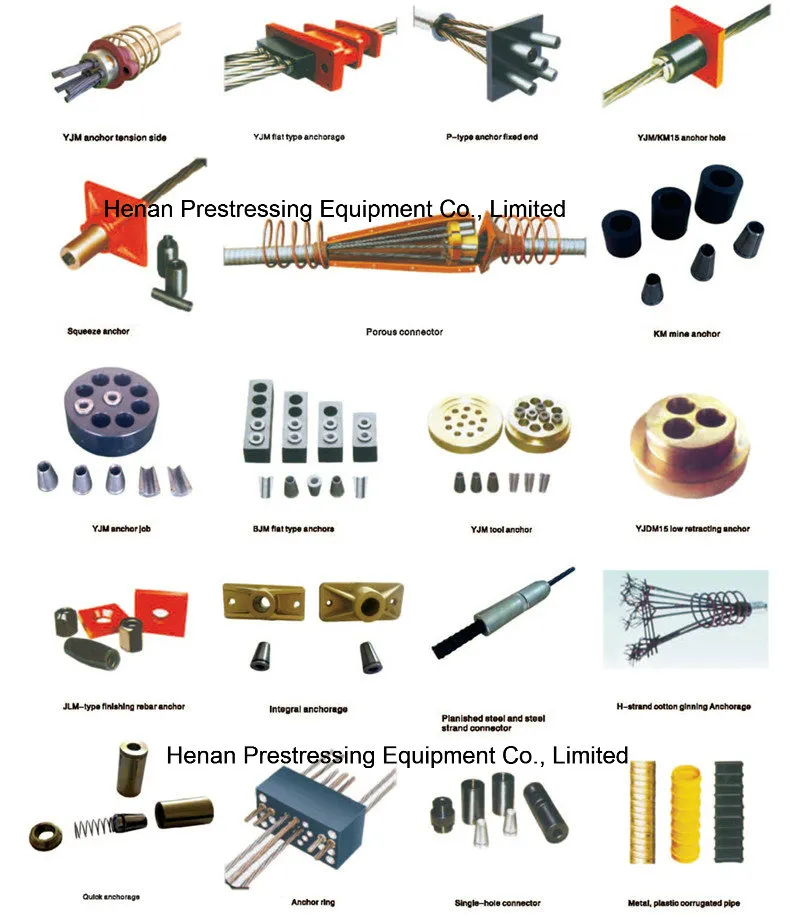

1. Anchor System: unbonded monostrand anchor system, multistrands anchor system, flat anchor system, arch type flat anchor, anchor barrel and wedges, ground anchor, rock and soil anchor, anchor wedges, anchor bearing plate, spiral reinforcing rings.

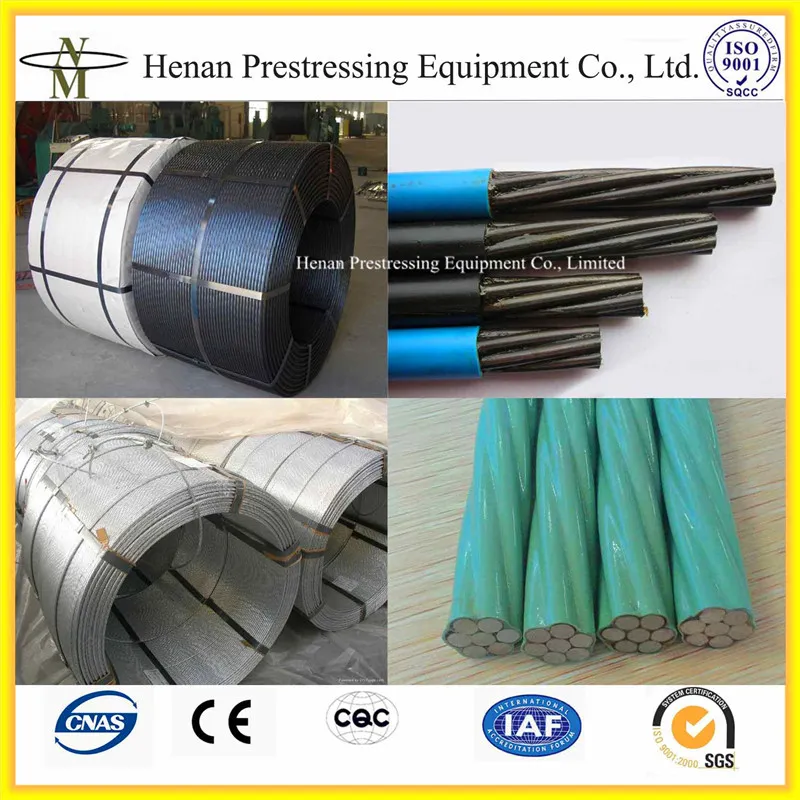

2. PC Strand System: unbonded pc strand, bonded pc strand, 12.7mm prestressed cable, 15.24mm prestressed strand, epoxy coated pc strand,galvanized pc strand, 6mm, 7mm, 9mm pc steel wire.
3. Duct System: galvanized metal duct, HDPE plastic duct, curved type galvanized metal duct, flat duct, corrugated pipe.
4. Heavy equipment: bridge girder launching machine, drilling rig, bridge girder transporter.
RELATED PRODUCTS
Prestressed Anchor System
Prestressed Strand Cable
Prestressing Equimpent
FAQ:
1) Q: Do you provide OEM Service or Customized-made Jack and Pump?
A :Yes, we do. Kindly please inform us your required Maximum Capacity(tons) And Stroke(tension journey) for Jack.
2) Q: How to guarantee we get Good Quality Hydraulic Jack And Pump?
A: We have built Testing Center with full ranges of Testing Equipment to test Anchorage, Wedges, PC Strand, Ducts, Hydraulic Jack and Pump. All goods must be tested here to make sure it is qualified before delivery.
3) Q: How is the delivery lead time:
A: Goods in stock: within 3 days, Goods out of stock(7 days), Goods need to be customized(10-15 days).
4) What is your Minimum Order?
A: MOQ: 1 SET.
CONTACT WITH US:
Jason Wang
Sales Manager
Henan Prestressing Equipment Co., Limited
PRODUCTION DESCRIPTIONS
1. Model: QYC270(27 tons), QYC240(24 tons).
2. Capacity: 24 tons and 27 tons, Tension Journey: 200mm, Tension Cylinnder Area: 4418mm², Weight: 24kg, Size: 108x510mm.
3. Usage: For stressing single strand, such as unbonded monostrand anchor system and flat anchor system.
4. For PC Strand Diameter: 9.53mm, 12.7mm, 15.24mm, for PC Steel Wire Diameter: 5mm, 7mm, 9mm.
5. Accessories: Removing Anchor Device, Limited Board, Seal Kits, Spare Wedges.
APPLICATIONS
1). For Buildings: Housing, Commercial Buldings, High Rise Buildings.
2). For Municipal Engineering: Railway, Highway, Over Head Fast Speed Way, Metro Way, High-speed Railway, etc.
3). For Projects: Mining, Piling, Foundation, Slope and Rock Reinforcement, Hydropower Station, Anchoring Engineers, Water Conservancy Project, Oil or Gas Tank, etc.
FEATURES
Features: It can tension different diameter of pc strand, steel wire and steel rebar(see followings) by replacing different grip wedges inside it.
A: It can tension 12.7mm, 15.24mm, 15.7mm, 16mm pc strand.
B: It can tension 5mm, 7mm, 8.0mm, 9.52mmn steel wires.
C: The customized jack can tension 16mm, 22mm, 24mm, 26mm, 28mm, 32mm, steel rebar.
6. Professional Services: 1x7 days 24 hours service online, and engineer can service oversea
7. Warranty Time: One Year, we will send you Repair Kits if you need any time.
QYC270 TECHNICAL DATA
| Model | Nominal Tension Force(KN) | Central Hole Diameter(mm) | Tensioning Area(mm²) | Stroke(mm) | Rated oil pressure(Mpa) | PC Strand Reserved Length(mm) |
| QYC70 | 74 | 10 | 1437 | 150 | 50 | 120 |
| YDC240 | 240 | 18 | 4771 | 200 | 60 | 200 |
| QYC270 | 270 | 18 | 4415 | 200 | 61 | 200 |
| QYC1100 | 1100 | 22619 | 200 | 49 | ||
| QYC2000 | 2000 | 42332 | 200 | 48 |
ABOUT OUR COMPANY
Henan Prestressing Equipment Co.,Limited manufacture full complete post tension components, materials and post tension equipment for buildings and bridge construction.
OUR ADVANTAGES
1. Anchor System: unbonded monostrand anchor system, multistrands anchor system, flat anchor system, arch type flat anchor, anchor barrel and wedges, ground anchor, rock and soil anchor, anchor wedges, anchor bearing plate, spiral reinforcing rings.
2. PC Strand System: unbonded pc strand, bonded pc strand, 12.7mm prestressed cable, 15.24mm prestressed strand, epoxy coated pc strand,galvanized pc strand, 6mm, 7mm, 9mm pc steel wire.
3. Duct System: galvanized metal duct, HDPE plastic duct, curved type galvanized metal duct, flat duct, corrugated pipe.
4. Heavy equipment: bridge girder launching machine, drilling rig, bridge girder transporter.
RELATED PRODUCTS
Prestressed Anchor System
Prestressed Strand Cable
Prestressing Equimpent
FAQ:
1) Q: Do you provide OEM Service or Customized-made Jack and Pump?
A :Yes, we do. Kindly please inform us your required Maximum Capacity(tons) And Stroke(tension journey) for Jack.
2) Q: How to guarantee we get Good Quality Hydraulic Jack And Pump?
A: We have built Testing Center with full ranges of Testing Equipment to test Anchorage, Wedges, PC Strand, Ducts, Hydraulic Jack and Pump. All goods must be tested here to make sure it is qualified before delivery.
3) Q: How is the delivery lead time:
A: Goods in stock: within 3 days, Goods out of stock(7 days), Goods need to be customized(10-15 days).
4) What is your Minimum Order?
A: MOQ: 1 SET.
CONTACT WITH US:
Jason Wang
Sales Manager
Henan Prestressing Equipment Co., Limited
