Ratchet Screw Trailer Stabilizer Jack Stand Tj50b
  • Ratchet Screw Trailer Stabilizer Jack Stand Tj50bRatchet Screw Trailer Stabilizer Jack Stand Tj50b
  • Ratchet Screw Trailer Stabilizer Jack Stand Tj50bRatchet Screw Trailer Stabilizer Jack Stand Tj50b
  • Ratchet Screw Trailer Stabilizer Jack Stand Tj50bRatchet Screw Trailer Stabilizer Jack Stand Tj50b
  • Ratchet Screw Trailer Stabilizer Jack Stand Tj50bRatchet Screw Trailer Stabilizer Jack Stand Tj50b

Ratchet Screw Trailer Stabilizer Jack Stand Tj50b

Model: TJ50BTrailer stabilizing jack helps to prevent semi-trailers from up-ending when not connected to tractors.It can also be used to level trailers parked on slopes and can help to prevent landing gear from sinking into soft surfaces.It features high-strength steel construction, with flush-type ......

Send Inquiry

Product Description

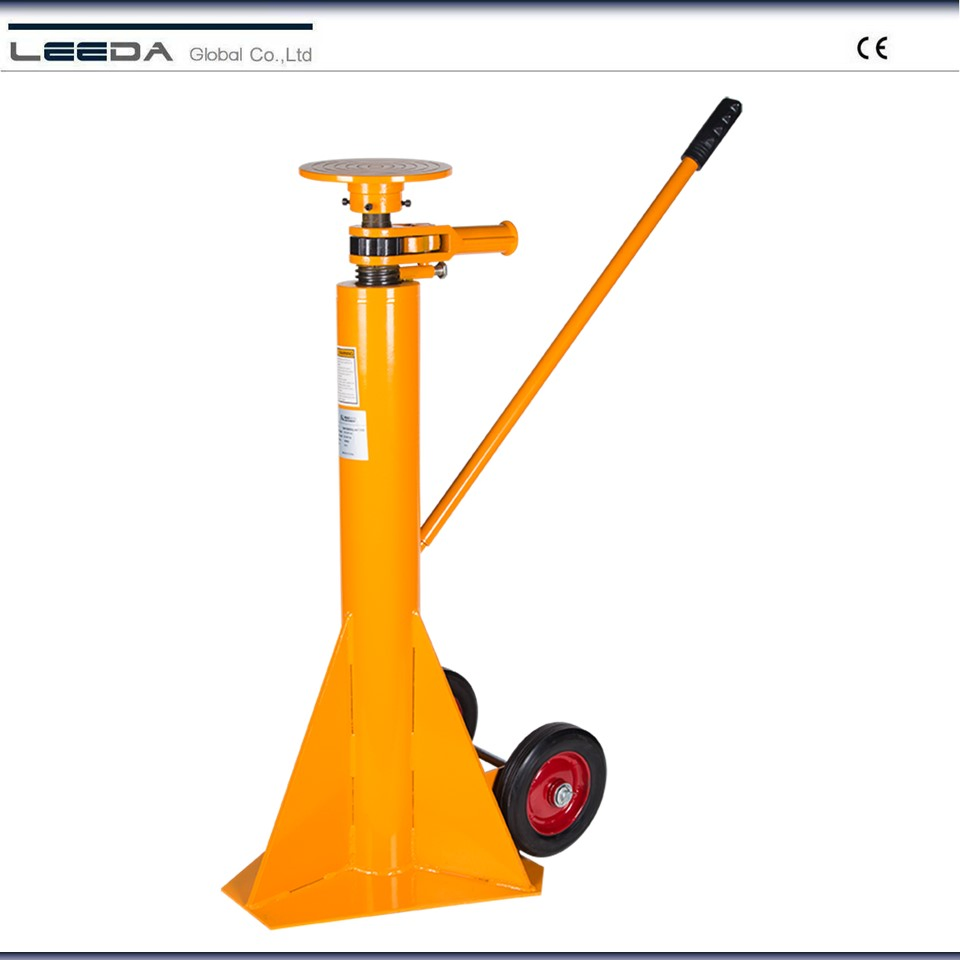

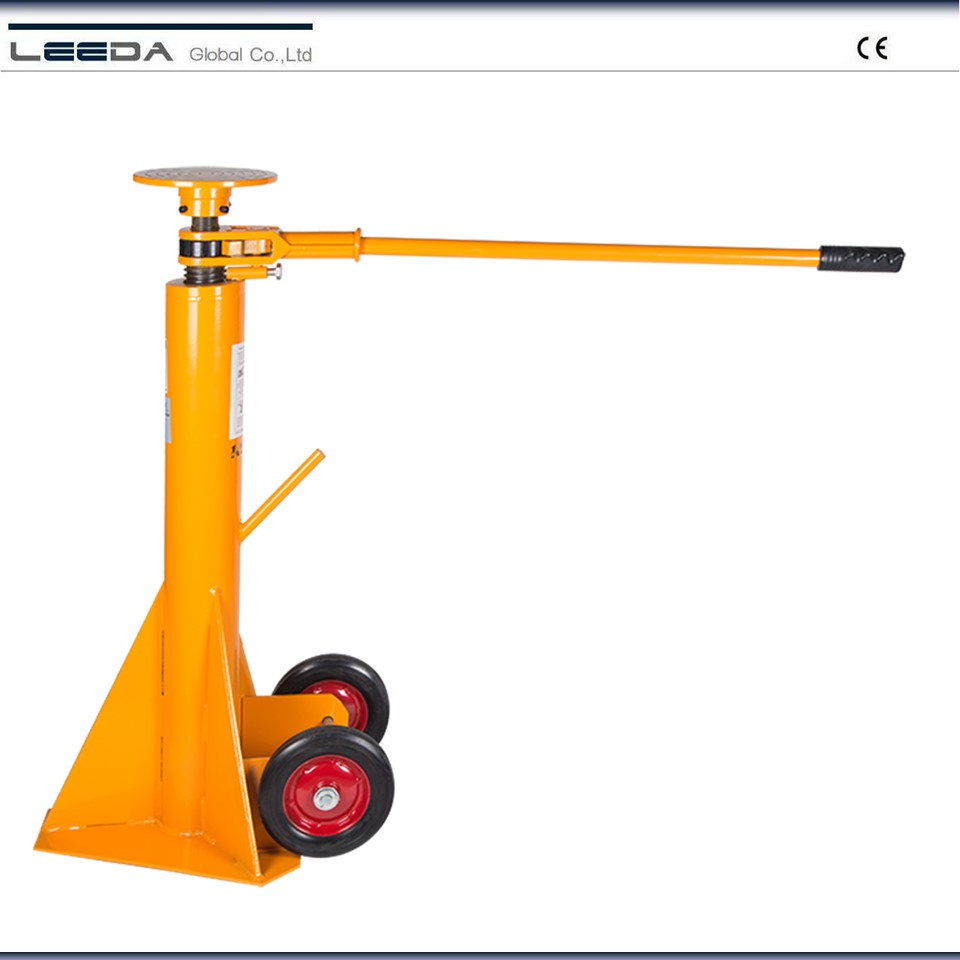

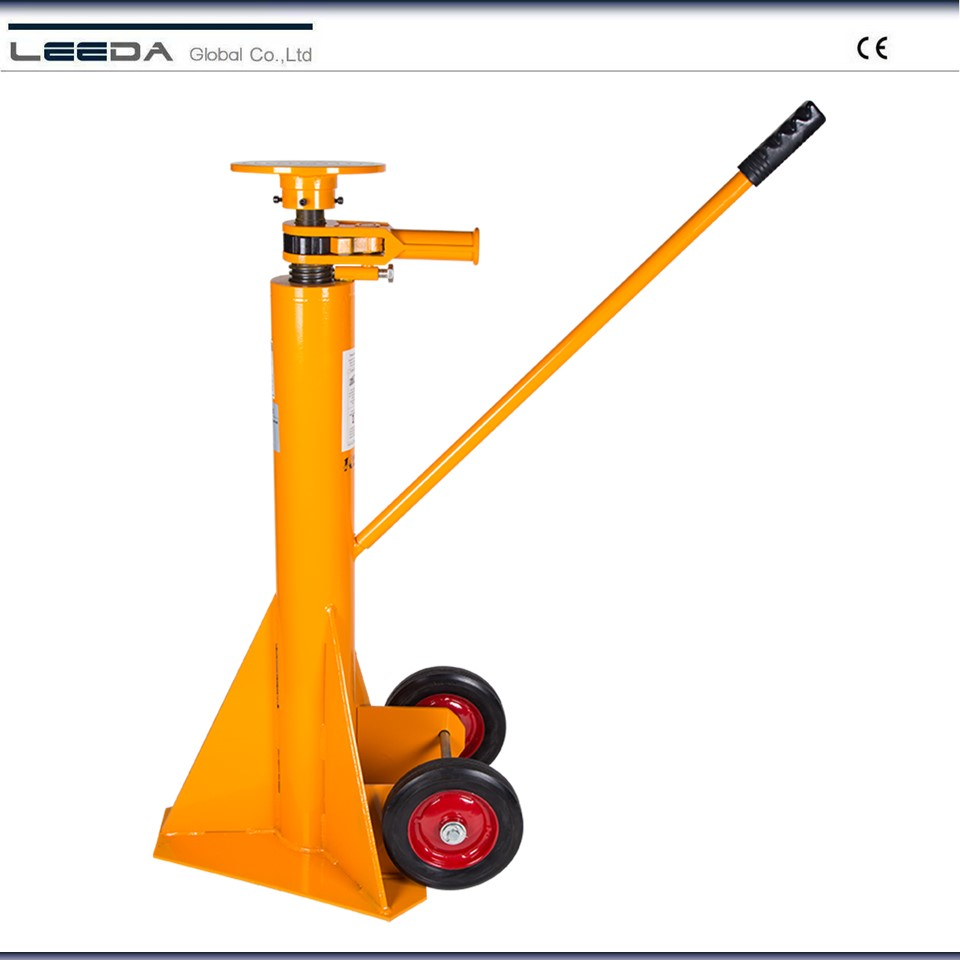

Model: TJ50B


Trailer stabilizing jack helps to prevent semi-trailers from up-ending when not connected to tractors.
It can also be used to level trailers parked on slopes and can help to prevent landing gear from sinking into soft surfaces.
It features high-strength steel construction, with flush-type zerk fitting for relubricating Acme screw.
It also features a reflective, night-visible yellow collar. Static load cap.: 100,000 lb.

1. Static load cap.: 100,000 lb.
2. Lifting Capacity:40,000 lb. or 50,000 lb.
3. Ratchet Height Adjustment Method
4. Reflective,night-visible yellow collar
5. Wheel: Solid Rubber
6. Main material: Steel



Model HL-TJ50HL-TJ50AHL-TJ50BHL-TJ50CHL-TJ50D
Service Range           (in.)39½-5139-5139-5145-5745-57
Static Capacity   (lbs/tonne)100000/45100000/4510000/4580000/36100000/45
Lifting Capacity  (lbs/tonne)40000/1840000/1850000/22.740000/1840000/18
Cap Size8"diameter7.5"diameter8"diameter8"diameter8"diameter
Base Plate14"diameter16"triangular16"triangular16"triangular16"triangular
Wheel Dia.10"semi-pneumatic10"solid rubber10"solid rubber10"solid rubber10"solid rubber
Net Weight           (lbs/kg)125/57110/50125/57115/52130/59

Ratchet Screw Trailer Stabilizer Jack Stand Tj50b
Ratchet Screw Trailer Stabilizer Jack Stand Tj50b
Ratchet Screw Trailer Stabilizer Jack Stand Tj50b




Ratchet Screw Trailer Stabilizer Jack Stand Tj50b
Ratchet Screw Trailer Stabilizer Jack Stand Tj50b
Ratchet Screw Trailer Stabilizer Jack Stand Tj50b


Ratchet Screw Trailer Stabilizer Jack Stand Tj50b
Ratchet Screw Trailer Stabilizer Jack Stand Tj50b
Ratchet Screw Trailer Stabilizer Jack Stand Tj50b

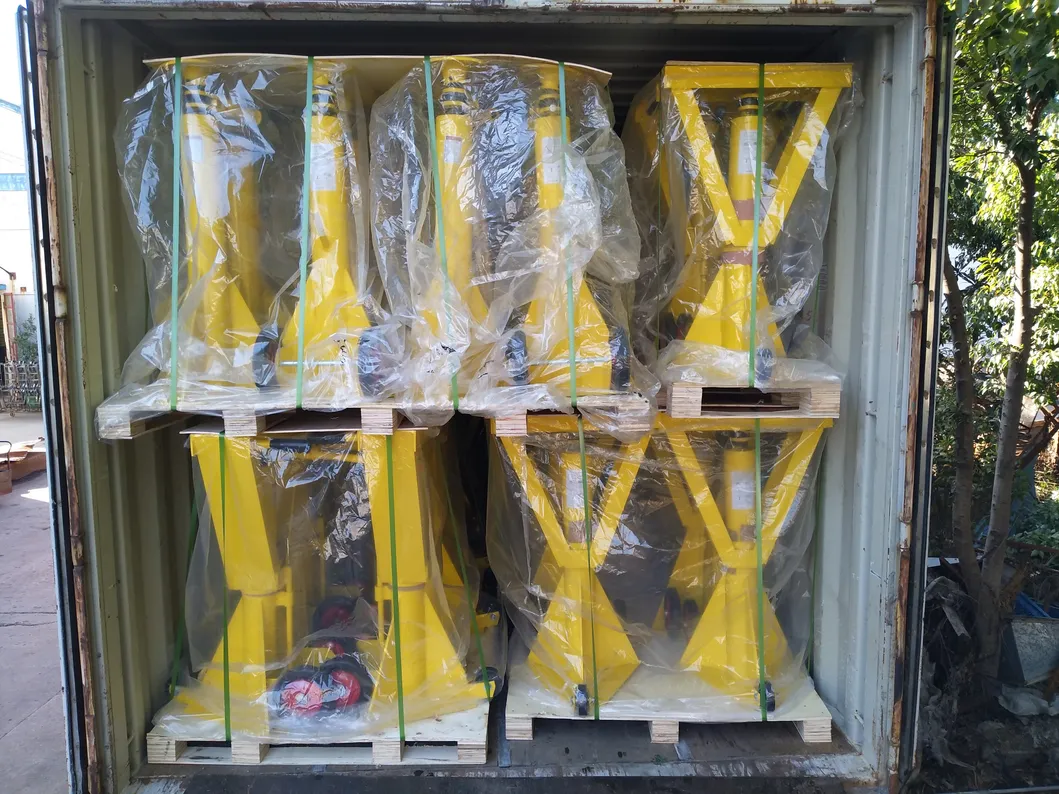

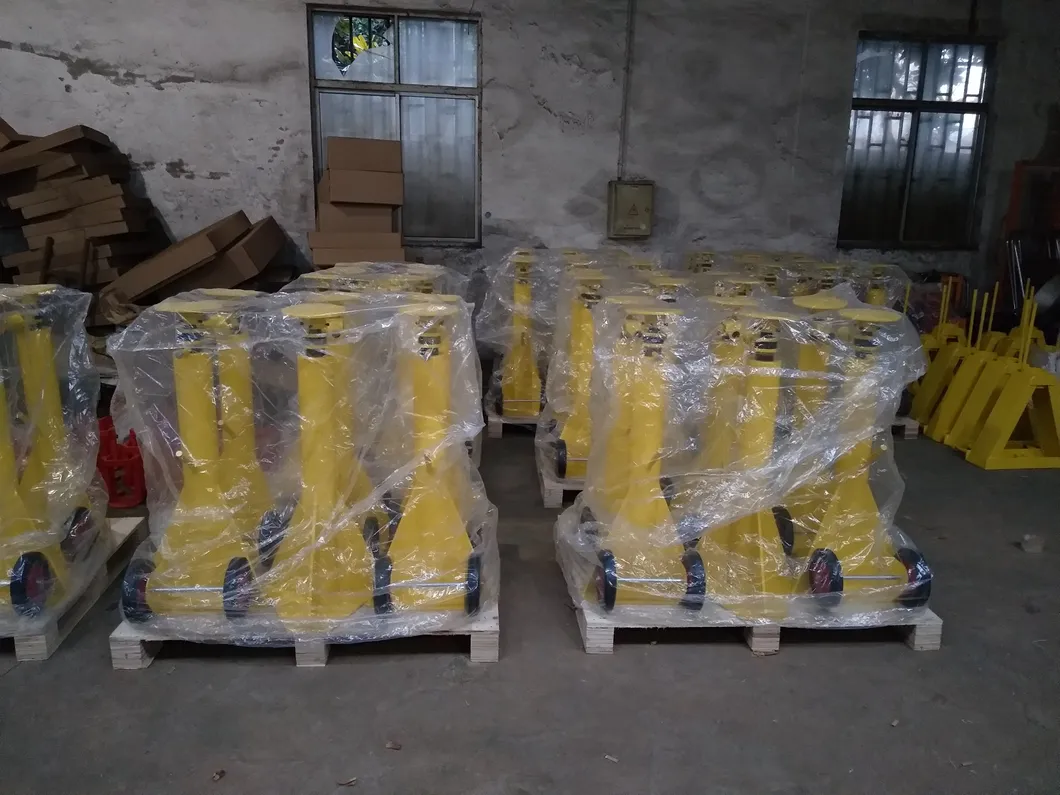

                          Standard Package                                                           Loading in Container                                                                50-ton load testing
